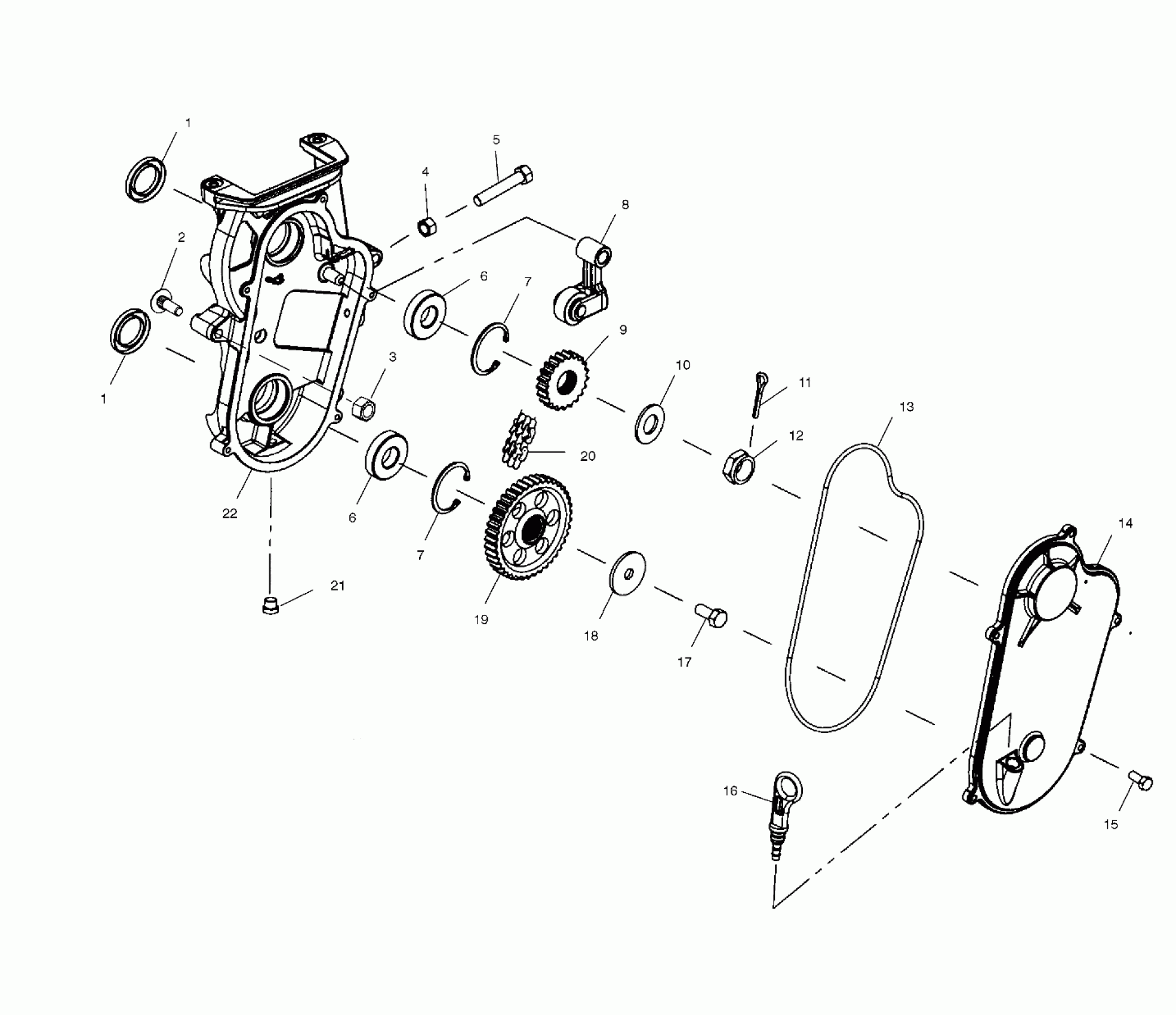

Polaris 500 XC SP F/O - S02NP5CS CHAINCASE - S02NP5CS/S02NE5CS (4973407340C07) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

Screw

7515477

$34.99

3

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

4

Nut, Chain Adjuster

5132237

$9.59

5

Screw

7512470

Unavailable

6

Bearing

3514309

$15.87

6

Bearing

3514309

$15.87

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

Pin, Chain Tightener

7662210

Unavailable

8

Bearing, Chaincase Idler

3553002

$11.99

8

Wheel, Idler

5630123

Unavailable

8

WASHER, THRUST

7558702

$1.59

8

Asm., Gearcase Tightener

1332213

$159.99

8

Block, Tightener

5630958

$159.99

9

SPROCKET, 22T, 3/4W

3221098

$49.99

10

Washer, Spring

7571620

$7.19

11

PIN, COTTER

7661401

$1.49

12

Nut, FLEXLOC

7542811

Unavailable

13

Gasket, Chaincase

5411497

$20.22

14

Cover, Chaincase

5132368

$148.79

15

SCREW

7512242

$2.39

16

Dipstick

1332250

$44.99

17

Screw

7517979

$3.99

18

Washer, Spring

7571618

$6.39

19

Sprocket, 40T, 3/4W

3222099

Unavailable

20

CHAIN, 74P, 3/4W

3221109

$164.99

21

PLUG

7052115

$5.65

22

Chaincase

5132773

Unavailable
