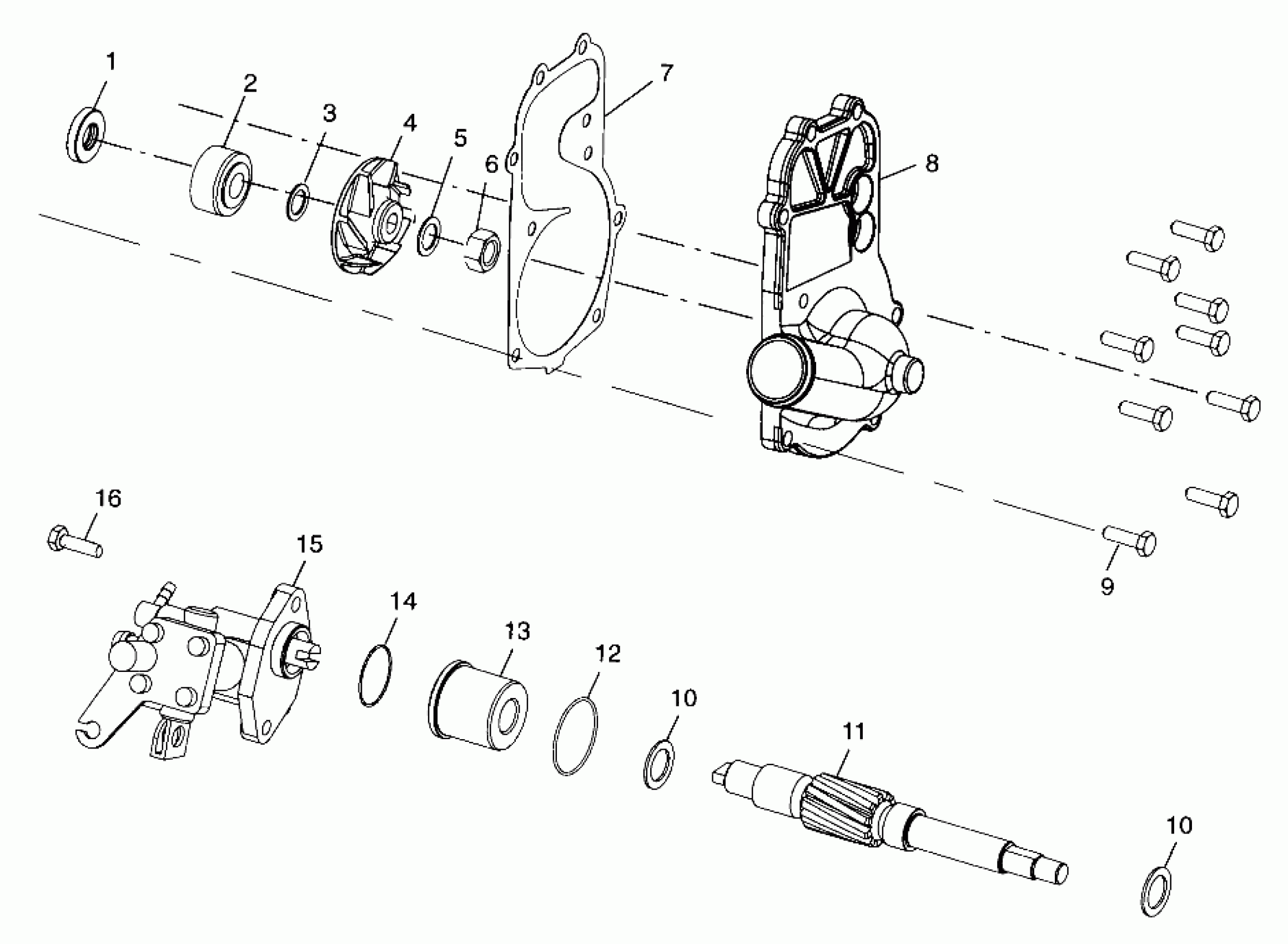

Polaris 500 XC SP - 099SP5AS WATER PUMP/OIL PUMP - 099SP5AS (4948454845c011) Diagram

SEAL,TYPE S,ARS

5411197

$24.27

SEAL,WATERPUMP

3610067

$44.51

WASHER,FLAT,SS.(10)

7556006

$3.99

IMPELLER,WATERPUMP

5432330

$23.99

WASHER,FLAT,S.S.(10)

7555874

$2.39

NUT,HEX,(10)

7546804

$1.49

GASKET,WATERPUMP CVR.

5811601

$20.22

COVER-WATERPUMP,SNOW HI FLOW

5630920

Unavailable

COVER,WATERPUMP,SNO.NO-BLEED (See Footnote) NOTE: For units starting with serial number 340xxxx.

5630888

Unavailable

SCREW(10)

7516822

$2.39

WASHER,THRUST(10)

7555977

$7.19

WASHER,THRUST(10)

7555977

$7.19

DRIVESHAFT,WATER/OIL PUMP

5131855

Unavailable

O-Ring

5411196

$3.22

BRNG,PUMP SHAFT,FLANGED

5010391

Unavailable

O-RING (See Footnote) NOTE: For units starting with serial number 340xxxx.

5411293

Unavailable

GASKET,OIL PUMP

5811789

$12.94

PUMP,OIL,SNO

2540057

$209.51

SCREW(10)

7517277

$3.19
