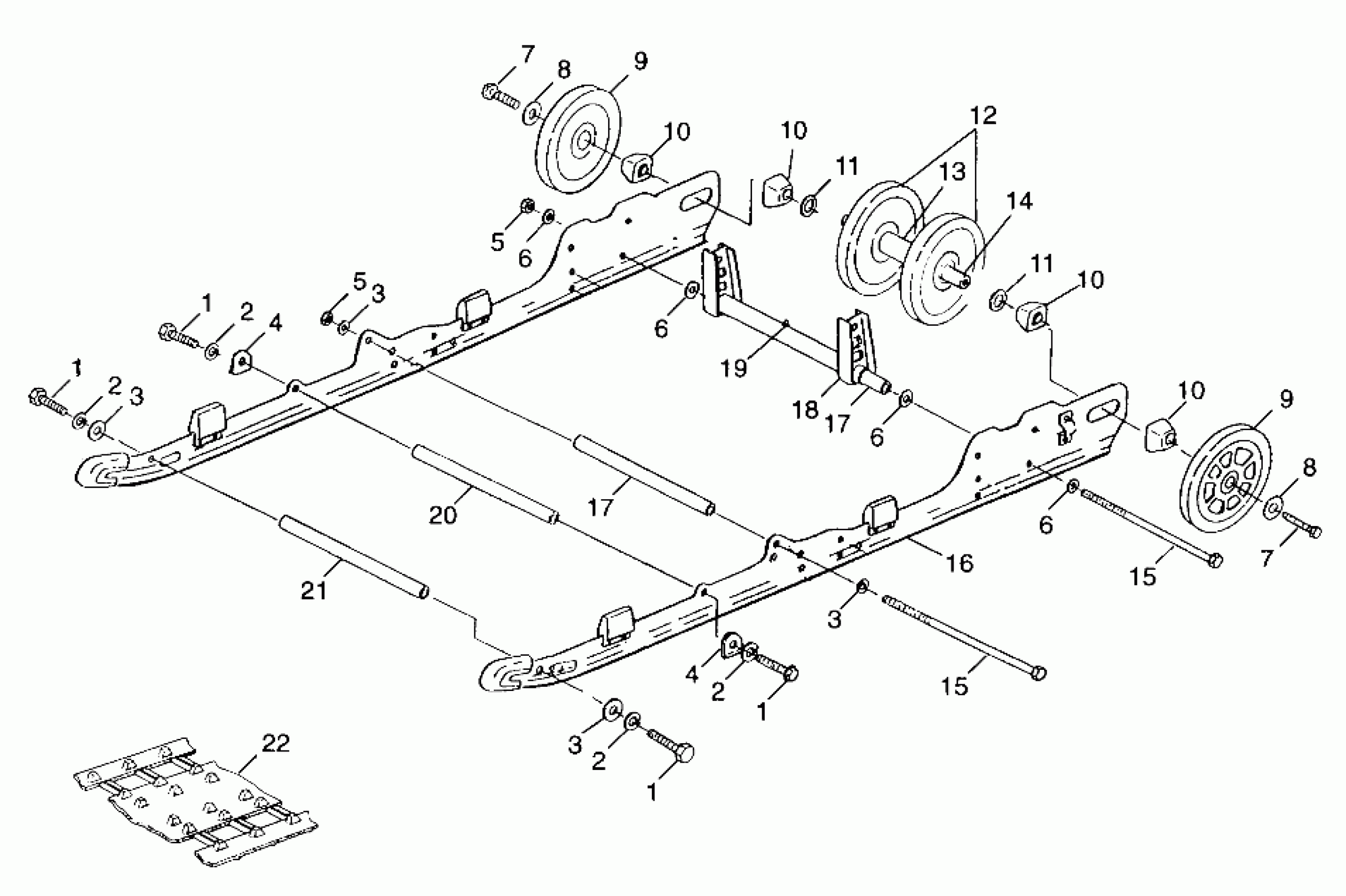

Polaris 500 XC SP - 099SP5AS SUSPENSION - 099SP5AS (4948454845b011) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

6

WASHER(10)

7555893

$1.49

7

BOLT(10)

7515526

$1.19

7

BOLT(10)

7515526

$1.19

8

WASHER(10) Substituted by 7556130

7571629

Unavailable

8

WASHER(10) Substituted by 7556130

7571629

Unavailable

9

RET.RING-TRUARC

7718407

$4.79

9

Bearing

3514012

Unavailable

9

WHEEL,IDLER,SCRL,RACERED

1594083-239

Unavailable

9

RET.RING-TRUARC

7718407

$4.79

9

Bearing

3514012

Unavailable

9

WHEEL,IDLER,SCRL,RACERED

1594083-239

Unavailable

10

SPACER-IDLER

5432535

$11.99

10

SPACER-IDLER

5432535

$11.99

10

SPACER-IDLER

5432535

$11.99

10

SPACER-IDLER

5432535

$11.99

11

BUSHING(10)

7555918

$1.59

11

BUSHING(10)

7555918

$1.59

12

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

13

SPACER-IDLER, CENTER

5333283

$19.99

14

SHAFT,IDLER

5020744

$59.99

15

Screw

7517353

Unavailable

15

Screw

7517353

Unavailable

16

SLIDER,WHITE Substituted by 5521452

5521405

$40.46

17

SHAFT

5333404

$24.27

17

SHAFT

5333404

$24.27

18

ARM,R.PIVOT

1540982-067

$38.05

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

20

SHAFT,PIVOT ARM

5020724

$29.99

21

SHAFT,PIVOT ARM

5020723

$29.99

22

CLIP, TRACK(CAMOPLAST),(10)

5222839

Unavailable

22

CLIP,GUIDE,CAMOPLAST,(10)

5222840

Unavailable

22

TRACK,121"X15,.82 LUG

5411379

$749.99
