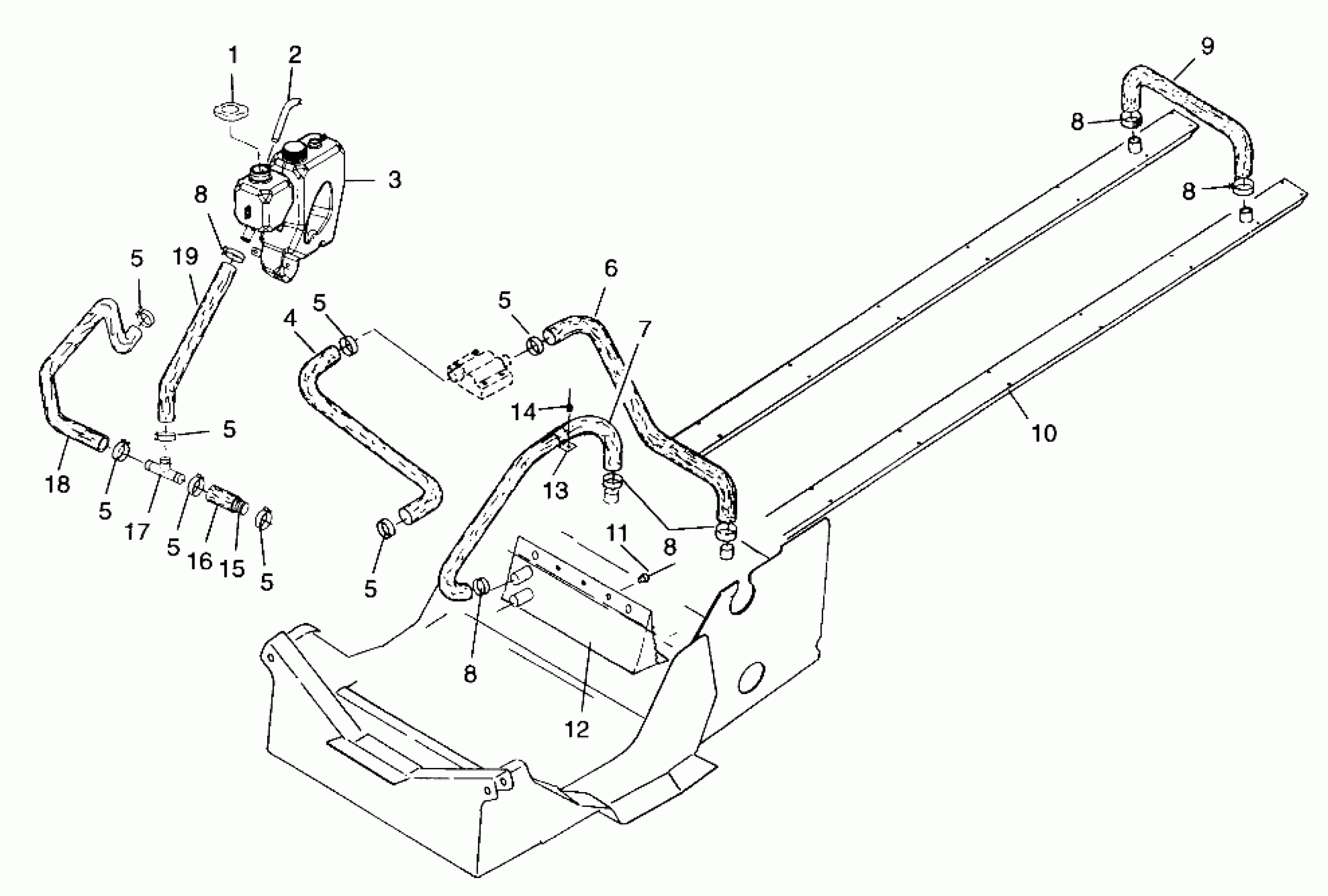

Polaris 500 XC SP - 099SP5AS COOLING SYSTEM (S# 340XXXX) - 099SP5AS (4948454845b005) Diagram

#

Description

Price

1

Cap, Pressure, 13 lb. (See Footnote) (See Oil Tank/Air Box Pg.C6, Ref. 9)

-------

Unavailable

2

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

3

Tank, Oil/Coolant (See Footnote) (See Oil Tank/Air Box Pg. C6, Ref. 1)

-------

Unavailable

4

HOSE,ENG.OUT/BRK.COOLER Substituted by 5411662

5411461

Unavailable

5

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

5

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

5

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

5

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

5

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

5

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

5

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

5

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

6

HOSE,BRK.COOL/WEARSTRIP

5411380

Unavailable

7

HOSE,CLOSE-OFF/WEAR STRIP COOL

5411260

Unavailable

8

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

8

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

8

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

8

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

8

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

9

HOSE,R.WEARSTRIP,COOLER

5411383

Unavailable

10

WEARSTRIP,COOLER

2511297

Unavailable

11

RIVET,INTERLOCK,B(50)

7661638

$1.49

12

EXCHANGER,CLOSE-OFF

2511304

$399.99

13

CLAMP, 1"HOSE(10)

7080585

$3.99

14

POP RIVET(50)

7621425

$1.49

15

SPRING,HOSE RET,4.75 IN.

7041541

$3.51

16

HOSE,TEE/PUMP IN,(SN44 )

5411485

Unavailable

17

CONNECTOR, TEE,(1 IN.)

7052087

Unavailable

18

HOSE,TEE/CTR.COOLER(SN44 )

5411483

Unavailable

19

HOSE,TEE/BOTTLE(SN44)

5411484

Unavailable
