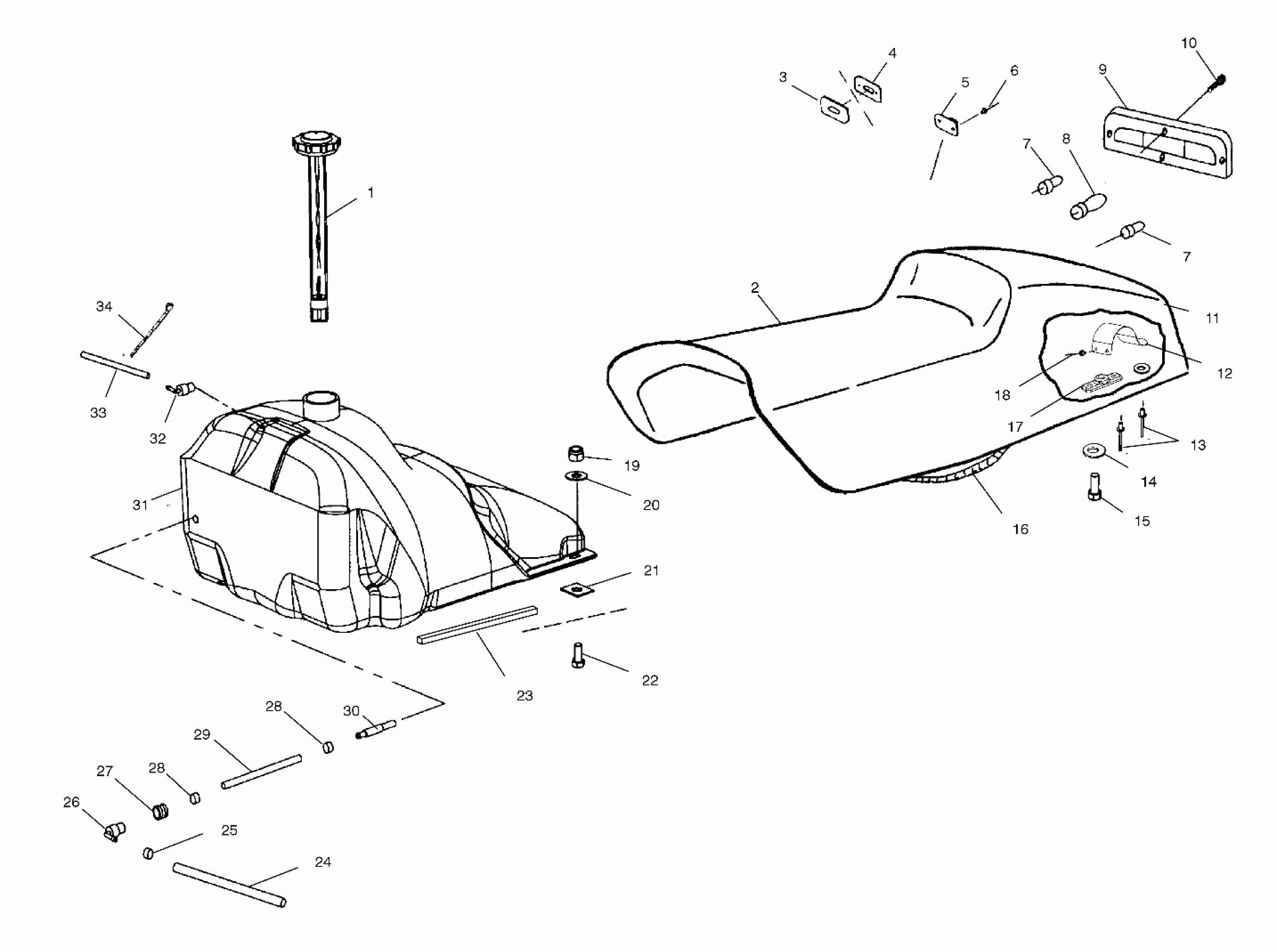

Polaris 500 XC - S02NP5AS SEAT and GAS TANK - S02NP5AS (4970677067A04) Diagram

#

Description
Price

1

Cap, Fuel

1240066

Unavailable

2

Asm., Seat (Incl. 2-12,16)

2682587

Unavailable

2

Cover, Seat

2682588

Unavailable

3

Grommet, Relatch, Bottom

7080550

Unavailable

4

Grommet, Relatch, Top

7080549

Unavailable

5

Relatch, Twist Lock w/Hole

7080548

Unavailable

6

Rivet

7621337

$1.49

7

Bulb, Taillight

4030024

$4.84

7

Bulb, Taillight

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

Lens

5430423

Unavailable

10

Screw

7511840

Unavailable

11

Housing, Taillight

5433341

Unavailable

12

Retainer, Tool Pouch Clip

5243185

$10.63

13

RIVET

7621319

$1.49

14

Washer, Flat

7558301

$1.49

15

SCREW

7512232

$1.49

16

Harness, Taillight

2460399

Unavailable

17

NUT, SEAT

5631194

$4.99

18

RIVET

7621472

$1.49

19

Nut, Nylok

7542122

$1.49

20

WASHER, FLAT

7555960

$3.99

21

Nut, Speed

7670021

$6.99

22

BOLT, CARRIAGE

7512193

$2.39

23

FOAM-SEAL,REAR COOLER

5810947

$4.03

24

Line, Fuel

8350018-600

Unavailable

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

Fitting, 90 Degree

7052259

Unavailable

27

GROMMET, FLANGED

7052028

$6.39

28

RING, COMPRESSION

7080402

$1.60

28

RING, COMPRESSION

7080402

$1.60

29

LINE, FUEL

8350019-600

Unavailable

30

Pickup, Fuel w/Filter

7052301

$12.94

31

Asm., Fuel Tank (Incl. 30-32)

2520266

$267.99

32

Fitting, 90 Degree

7052095

$4.79

33

LINE, FUEL

8450061-600

Unavailable

34

Cable Tie

7080804

$3.22
