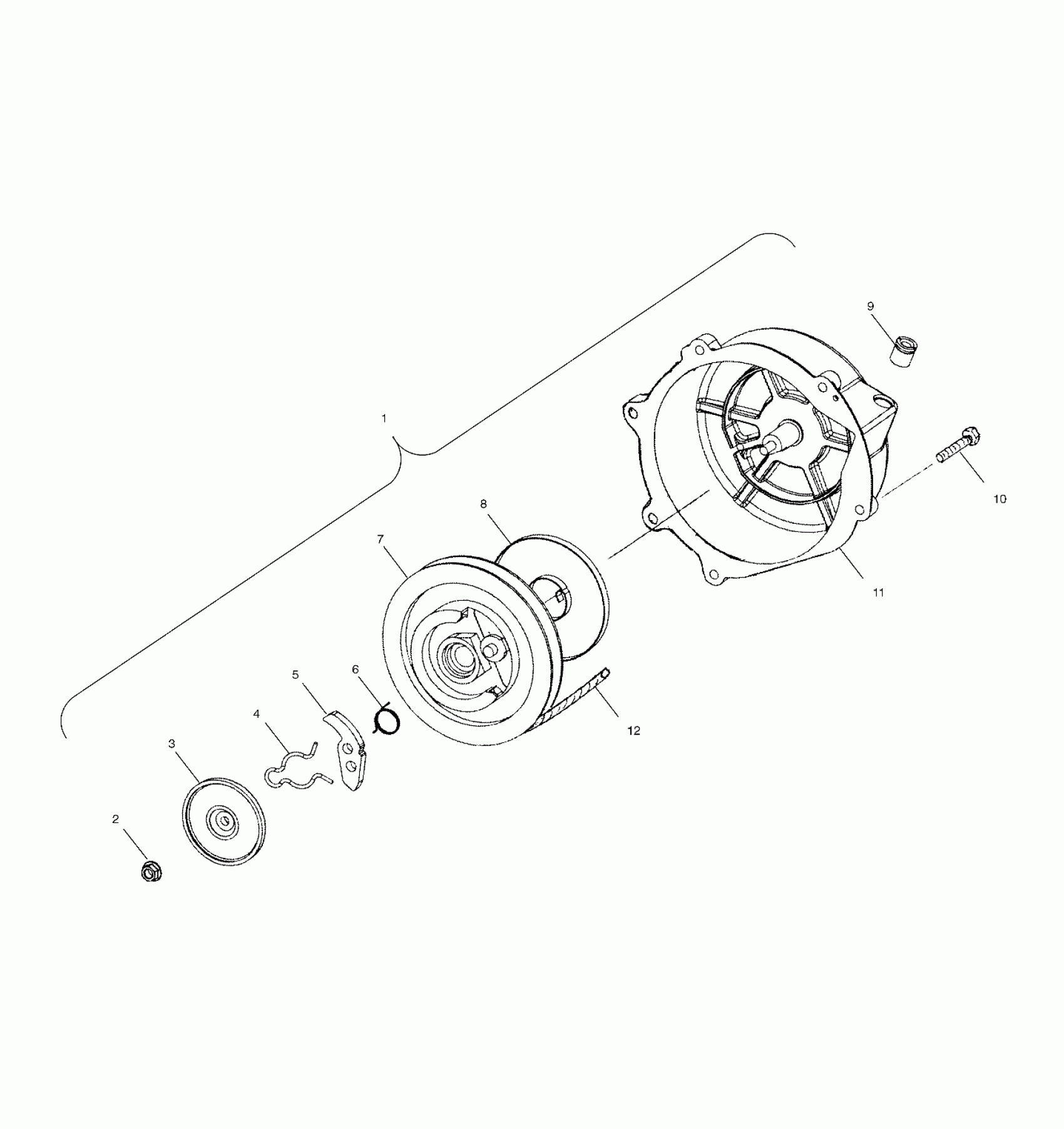

Polaris 500 XC - S02NP5AS RECOIL STARTER - S02NP5AS (4970677067C11) Diagram

#

Description

Price

1

Asm., Recoil (Incl. 2-8,11,12)

1201815

Unavailable

2

Nut

3040163

Unavailable

3

Plate, Friction

3040164

Unavailable

4

Spring, Friction

3040167

Unavailable

5

Ratchet

3040165

Unavailable

6

Spring, Return

3040166

Unavailable

7

Reel

3040168

$44.51

8

Spring, Spiral

3040170

Unavailable

9

BUSHING,ROPE SLIDE

3040171

$3.48

10

SCREW

7516827

$6.39

11

Housing, Recoil Starter

5630645

Unavailable

12

ROPE, STARTER

3040169

$24.27
