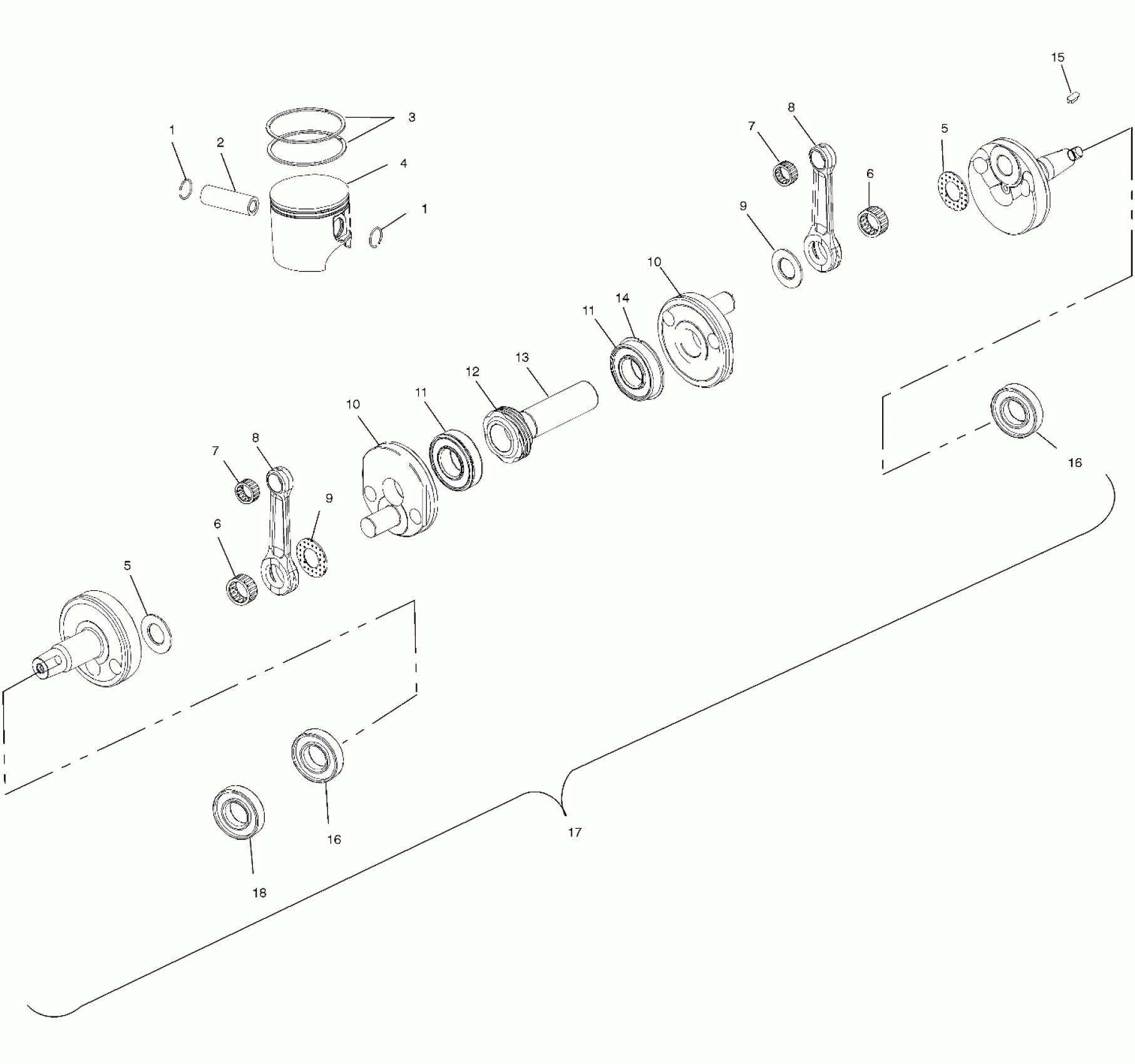

Polaris 500 XC - S02NP5AS PISTON and CRANKSHAFT - S02NP5AS (4970677067C07) Diagram

#

Description
Price

1

Circlip, Piston

3022950

Unavailable

1

Circlip, Piston

3022950

Unavailable

2

Pin, Piston

3022961

Unavailable

3

Kit, Piston Rings (Standard)

2201196

Unavailable

3

Kit, Piston Rings (.25mm/.010 O/S)

2201198

Unavailable

3

Kit, Piston Rings (.50mm/.020 O/S)

2201193

$63.79

4

Kit, Piston (Incl. 1-3)

2201383

Unavailable

4

Kit, Piston (.25mm/.010 O/S)

2201395

$154.99

4

Kit, Piston (.50mm/.020 O/S)

2201396

$190.46

5

WASHER

-------

Unavailable

5

WASHER

-------

Unavailable

6

BEARING

-------

Unavailable

6

BEARING

-------

Unavailable

7

Bearing

3552108

Unavailable

7

Bearing

3552108

Unavailable

8

Kit, Rod, Connecting (Incl. 5,6,8,9,10)

2201132

$464.99

8

Kit, Rod, Connecting (Incl. 5,6,8,9,10)

2201132

$464.99

9

WASHER

-------

Unavailable

9

WASHER

-------

Unavailable

10

CRANKWEB, CENTER

-------

Unavailable

10

CRANKWEB, CENTER

-------

Unavailable

11

Bearing, Sealed

3513508

$54.99

11

Bearing, Sealed

3513508

$54.99

12

Gear, Pump Drive

5131373

Unavailable

13

Shaft, Pump Drive

5131353

$56.79

14

Ring, Snap

7710447

$5.43

15

KEY, WOODRUFF

7721117

$24.99

16

Bearing

3585503

$31.99

16

Bearing

3585503

$31.99

17

Asm., Crankshaft (Incl. 5,6,8-14,16,18)

2201234

$1,794.99

18

Bearing

3514310

$39.99
