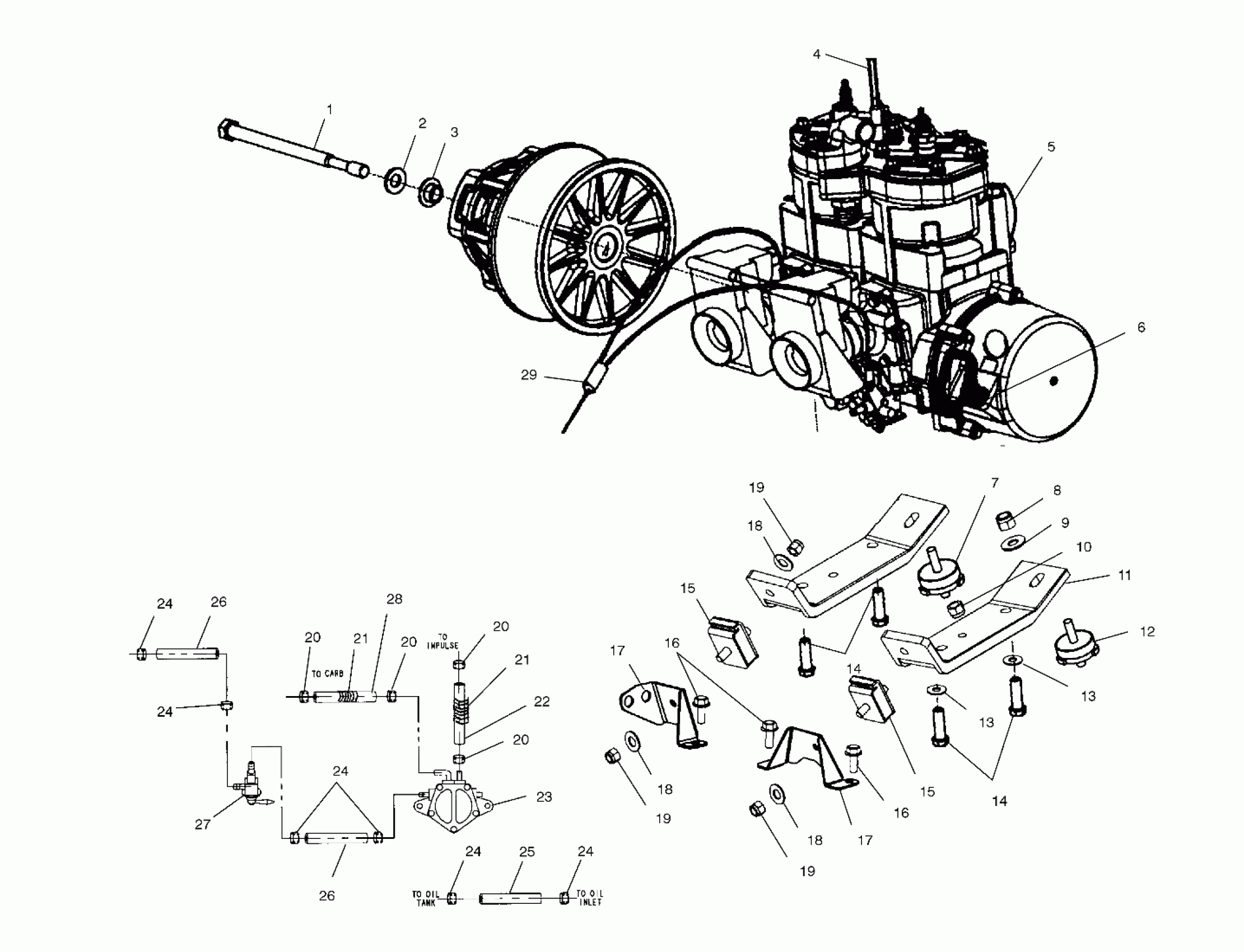

Polaris 500 XC - S02NP5AS ENGINE MOUNTING - S02NP5AS (4970677067C03) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

Washer

5131872

Unavailable

4

Spark Plug, RN57YCC, Champion

3070190

$3.99

5

Kit, Short Short Block (S504402) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requi

2201937

Unavailable

6

Handle, Recoil

5431499-070

$15.48

7

Mount, Engine

3021220

Unavailable

8

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

9

Washer, Flat

7555893

$1.49

10

NUT, FLANGED

7547180

$2.39

11

Strap, Engine Mount, LH

5245465

$74.39

11

Strap, Engine Mount, RH

5245474

$37.11

12

Mount, Engine

3021290

Unavailable

13

Washer, Spring Lock

7553101

$3.99

13

Washer, Spring Lock

7553101

$3.99

14

Screw

7512539

$3.99

14

Screw

7512539

$3.99

15

Mount, Engine

3021206

$60.70

15

Mount, Engine

3021206

$60.70

16

Screw

7517854

$5.59

16

Screw

7517854

$5.59

17

Bracket, Engine Mount, RH

5245044

Unavailable

17

Bracket, Engine Mount, LH

1013397

$24.27

17

Bracket, Engine Mount, RH

5245044

Unavailable

17

Bracket, Engine Mount, LH

1013397

$24.27

18

Washer, Flat

7555806

$1.49

18

Washer, Flat

7555806

$1.49

18

Washer, Flat

7555806

$1.49

19

NUT, FLEXLOC

7547008

$6.39

19

NUT, FLEXLOC

7547008

$6.39

19

NUT, FLEXLOC

7547008

$6.39

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

21

Tubing, Convoluted

8360052-15

Unavailable

21

Tubing, Convoluted

8360052-15

Unavailable

22

Line, Fuel

8450040-600

Unavailable

23

Pump, Fuel

2520259

Unavailable

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

Line, Fuel

8450003-1525

Unavailable

26

Line, Fuel

8350018-600

Unavailable

26

Line, Fuel

8350018-600

Unavailable

27

Valve, Fuel

7052249

$24.27

28

Line, Fuel

8350017-600

Unavailable

29

Cable, Throttle

7080867

$36.79
