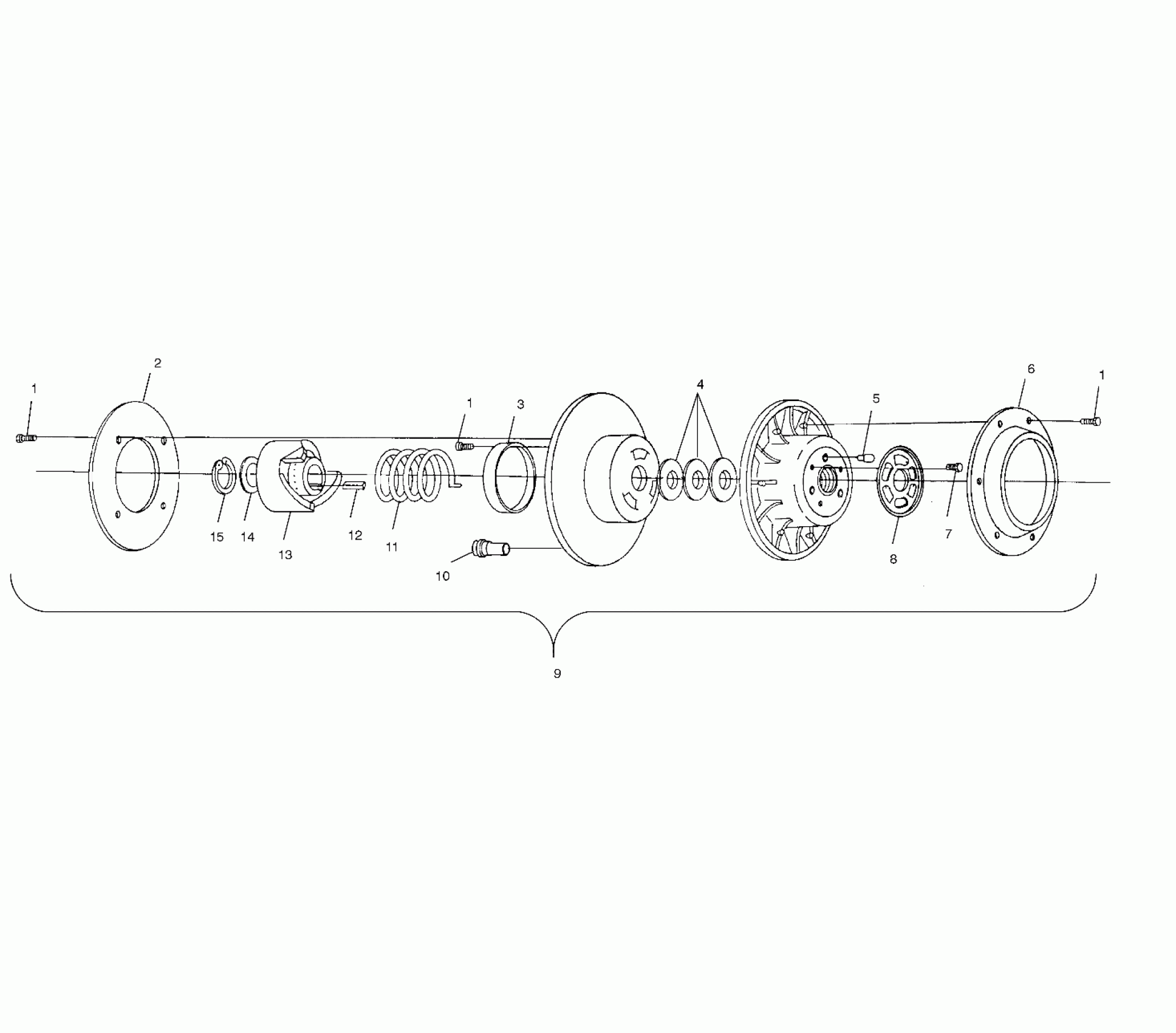

Polaris 500 XC - S02NP5AS DRIVEN CLUTCH - S02NP5AS (4970677067B14) Diagram

#

Description
Price

1

Screw

7512048

Unavailable

1

Screw

7512048

Unavailable

1

Screw

7512048

Unavailable

2

Plate, Perforate

5243158

$131.99

3

Bushing, Driven, Large DU

3569803

Unavailable

4

Washer (.03)

7556804

Unavailable

4

Washer (.02)

7555898

Unavailable

4

Washer (.025)

7556076

Unavailable

4

Washer (.075)

7555865

Unavailable

5

Pin, Adjustable Driven

5020653

$34.99

6

Cap, Vented Driven

5243157

Unavailable

7

BOLT

7515133

$3.99

8

Cam, Adjustable Driven

5222878

$29.03

9

Asm., Driven Clutch, Basic 204 [Incl. All Less 2,6,11,13]

1321927

Unavailable

10

Button, Ramp

5430466

$6.46

11

Spring, Driven Clutch, Silver

7041499

$56.65

12

Key

7721103

$5.65

13

Ramp, Driven, R-32

5131623

Unavailable

14

Washer

7556804

$1.49

15

RING, RETAINING

7714804

$9.59
