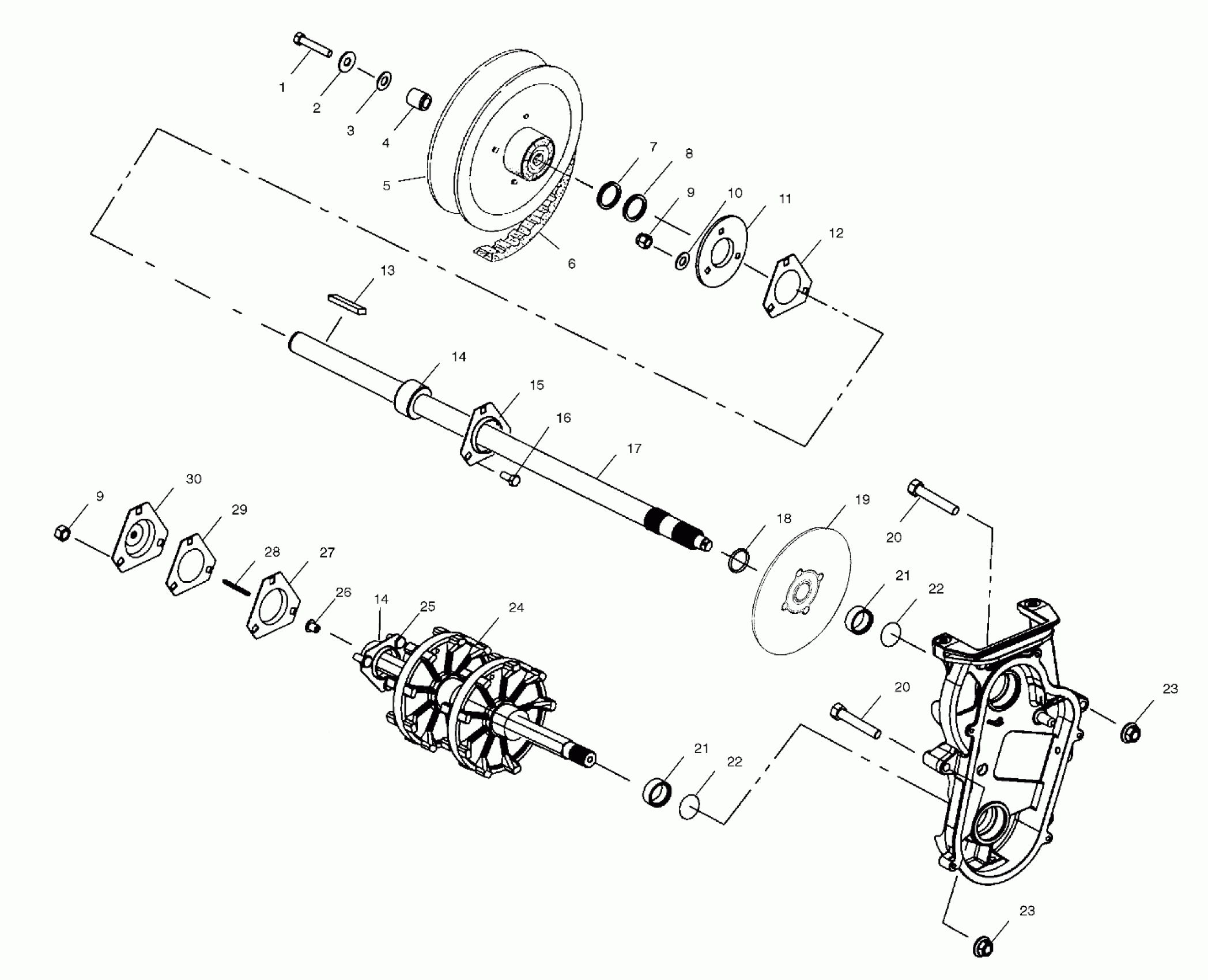

Polaris 500 XC - S02NP5AS DRIVE TRAIN - S02NP5AS (4970677067B07) Diagram

#

Description
Price

1

Bolt

7517820

Unavailable

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer, Input Shaft

5020291

Unavailable

5

ASM., DRIVEN CLUTCH (See Driven Clutch Pg. B14, Ref. 9)

-------

Unavailable

6

Belt, Drive

3211080

$139.99

7

WASHER

7555864

Unavailable

8

Bushing

7556509

Unavailable

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

Fitting, Lubrication

7080561

$4.79

11

Flangette w/Grease Fitting

5241359

$32.37

12

Gasket, Jackshaft

5811095

$2.41

13

Key

7721128

$10.39

14

BEARING

3514525

$31.99

14

BEARING

3514525

$31.99

15

FLANGETTE

5222751

$16.44

16

Bolt, Carriage

7512377

$4.79

17

Asm., Jackshaft (Incl. 14,18)

1332220

$158.73

18

RING, RETAINING

7710422

$3.99

19

Disc, Brake

1910403

Unavailable

20

Bolt, Carriage

7515428

$4.79

20

Bolt, Carriage

7515428

$4.79

21

SLEEVE, SEAL

5020588

$23.99

21

SLEEVE, SEAL

5020588

$23.99

22

O-RING

5410613

$1.99

22

O-RING

5410613

$1.99

23

Nut, Flange

7542423

$3.99

23

Nut, Flange

7542423

$3.99

24

Asm., Drive Shaft (Incl. 25,26)

1590313

Unavailable

25

ASM., FLANGETTE W/SCREWS

1012945

$114.99

26

Bushing, Speedometer, Metal

3280019

$11.99

27

Flangette

5243529

$13.75

28

Key, Speedometer, Square

3280017

$13.75

29

Gasket, Drive Adaptor

5830012

$2.41

30

Adaptor, Drive w/Zerk

3280116

$101.17
