Description

Price

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Dark Blue/White

7041781

$56.65

6

BUTTON, GUIDE

5430445

$6.39

6

BUTTON, GUIDE

5430445

$6.39

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

PIN-ROLLER

5020422

$2.39

10

Kit - Shim, Drive Clutch

2200387

$24.27

11

Weight/Bushing, 10-54

1321685

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Spacer (.050mm)

5210754

Unavailable

15

Spacer (.025mm)

5242981

Unavailable

15

Spacer (.020mm)

5210752

Unavailable

15

Spacer (.032mm)

5210753

Unavailable

16

NUT, FLEXLOC

7541906

$3.19

17

NUT-JAM

5020425

$23.99

18

Asm., Drive Clutch, Basic 114 (Less 5,11)

1321928

$699.99

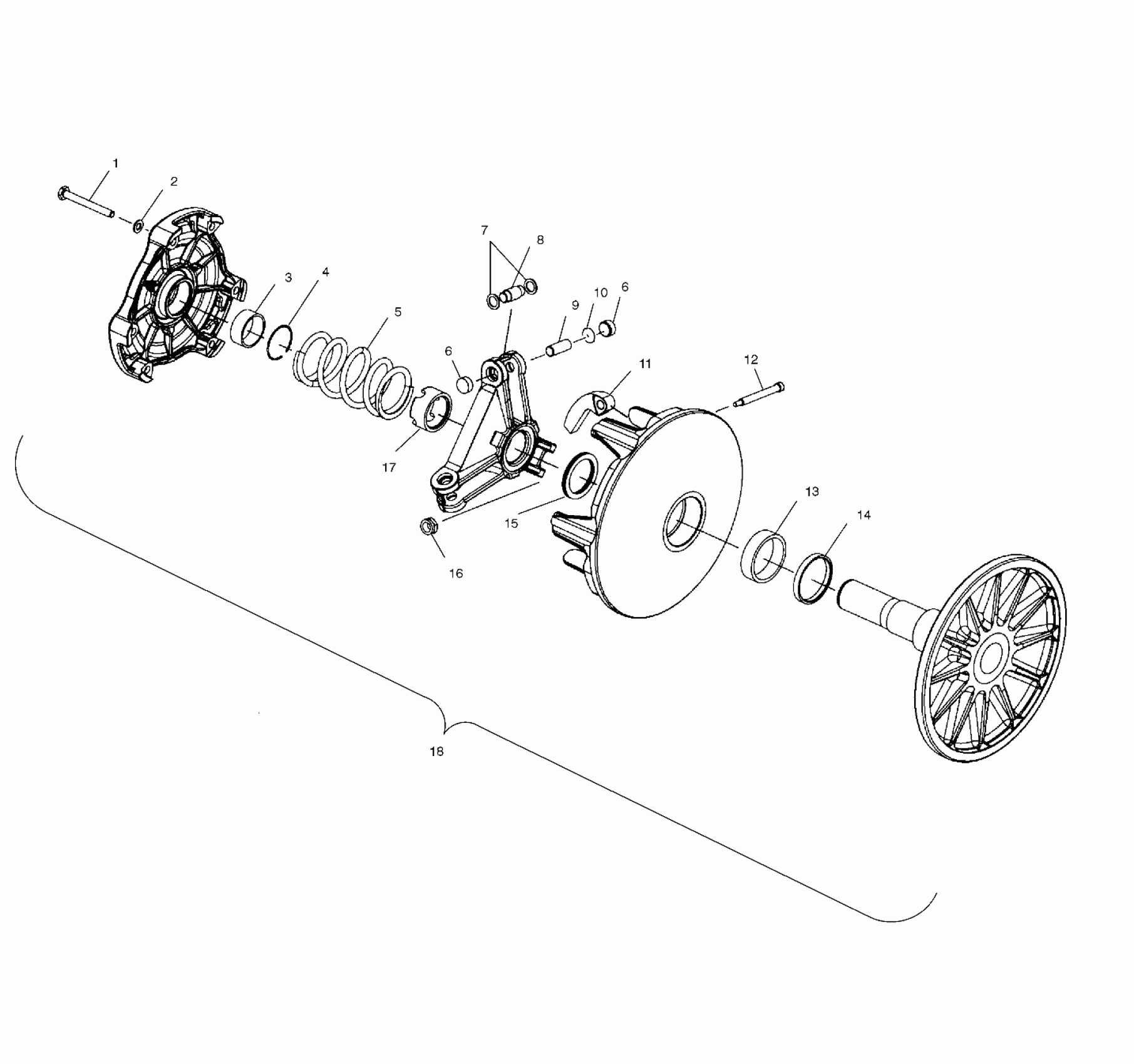

Polaris 500 XC - S02NP5AS DRIVE CLUTCH - S02NP5AS (4970677067B13) Diagram

Bolt

WASHER, SPRING LOCK

BEARING, COVER

RING-RETAINING,COVER

Spring, Clutch, Dark Blue/White

BUTTON, GUIDE

BUTTON, GUIDE

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

PIN-ROLLER

Kit - Shim, Drive Clutch

Weight/Bushing, 10-54

PIN-WEIGHT,HARDENED,1/4X2.00

Bearing, Sleeve

INSERT-MOVEABLE

Spacer (.050mm)

Spacer (.025mm)

Spacer (.020mm)

Spacer (.032mm)

NUT, FLEXLOC

NUT-JAM

Asm., Drive Clutch, Basic 114 (Less 5,11)
