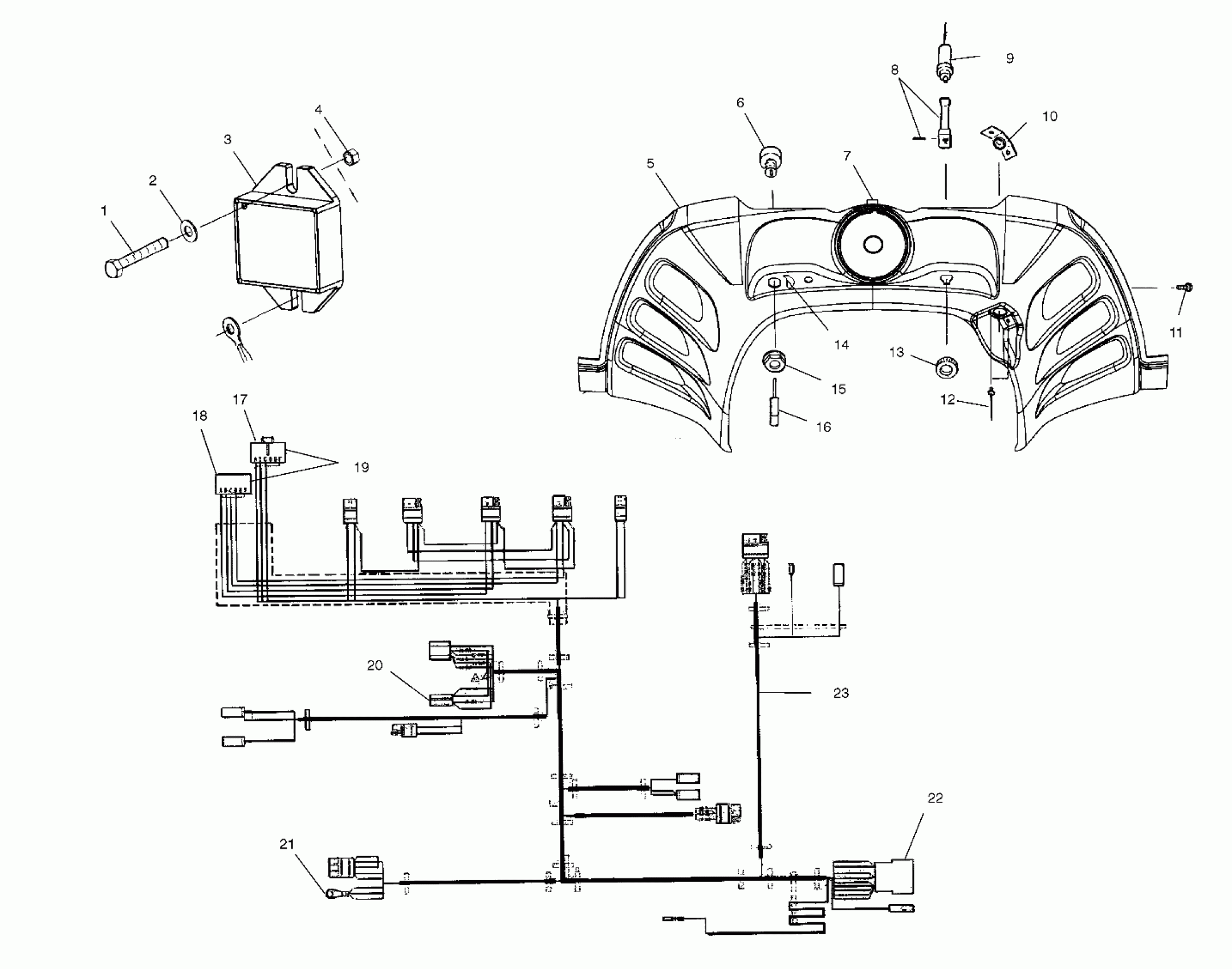

Polaris 500 XC - S02NP5AS CONSOLE - S02NP5AS (4970677067A11) Diagram

#

Description
Price

1

Screw

7512031

$2.23

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator

4010301

Unavailable

4

Nut, Nylok

7541925

$1.49

5

Console

5433724

Unavailable

6

Kit, Ignition Switch

2200358

$76.89

7

Clip, Xmas Tree

7670101

$2.39

8

Lever, Choke (Incl. Pin)

5432943

Unavailable

9

Cable, Choke (Incl. 8,13)

7080946

$89.03

10

GUIDE, RECOIL

5243049

$9.70

11

Screw

7515199

$1.49

12

RIVET

7621330

$1.49

13

Nut, Choke

5432944

$8.79

14

Decal, Console Ignition

7078955

Unavailable

15

Nut, Ignition

7547035

$8.79

16

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

17

Housing, Connector

4010193

$8.79

18

Housing, Connector

4010194

$15.99

19

Socket

4010192

Unavailable

20

HOUSING

4020063

$3.19

21

Terminal, Ring

4020092

Unavailable

22

Housing

4020057

$3.51

23

Harness, Main

2460807

Unavailable
