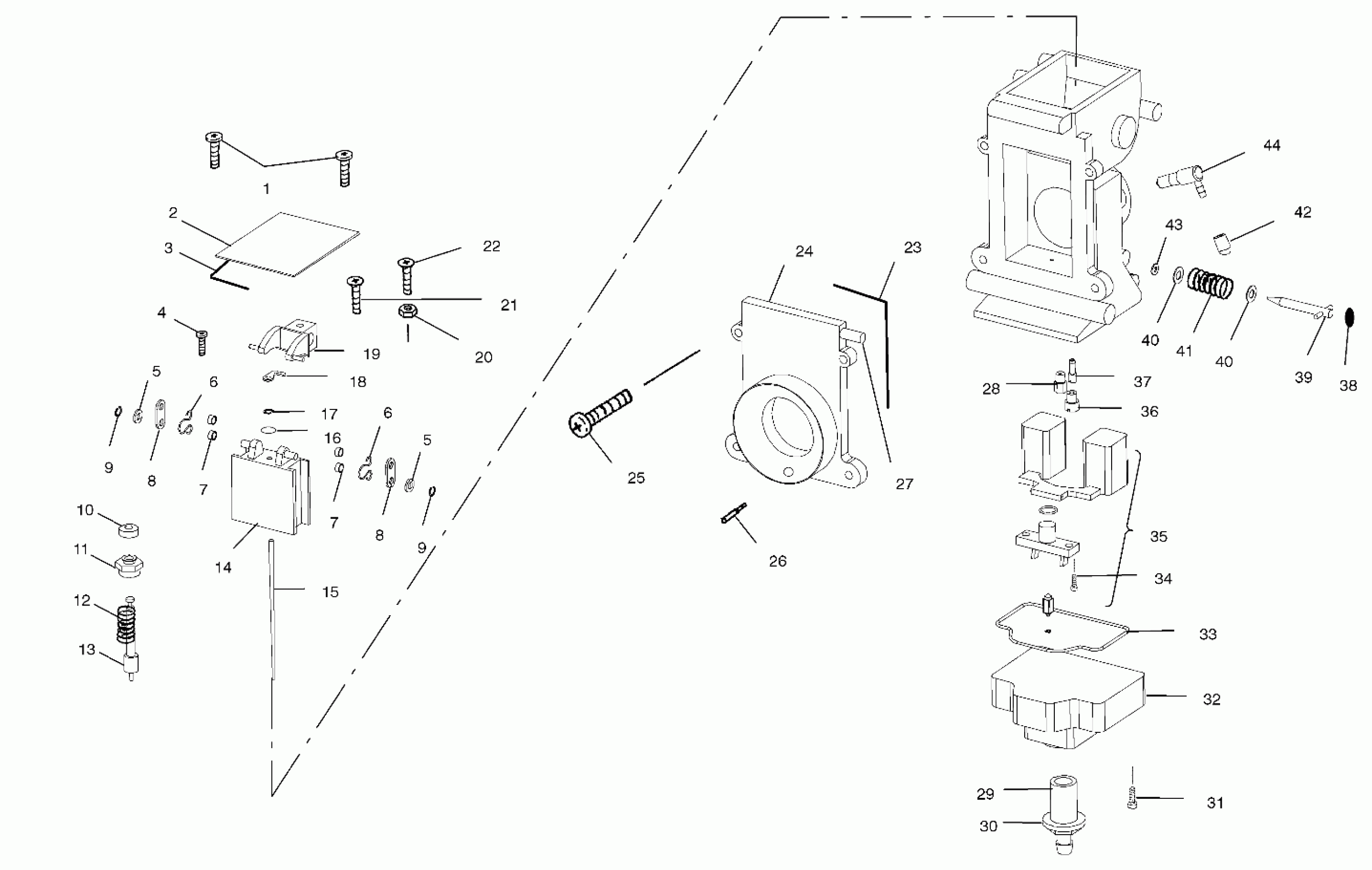

Polaris 500 XC - S02NP5AS CARBURETOR - S02NP5AS (4970677067C08) Diagram

#

Description
Price

-

Asm., Carburetor, Rack, 38mm

1253331

Unavailable

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Packing

3130846

$4.79

5

Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Plunger

3130828

$32.37

14

Valve, Piston

3130940

$104.99

15

Needle, Jet (9DFH7-60)

3131268

$44.51

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

Lever, LH

3130855

$64.75

19

Lever, RH

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw, LH

3130854

$3.19

22

Screw, RH

3130850

$4.79

23

O-Ring, Air Funnel

3130870

$24.27

24

Funnel

3130869

$102.99

25

Screw

3130825

$3.19

26

Jet, Pilot Air (PAJ)(0.7)

3131256

$20.22

27

Pin

3130808

Unavailable

28

Jet, Main (390)

3130480

Unavailable

29

Bolt, Drain

3131248

Unavailable

30

O-Ring

3130863

$2.41

31

Screw

3130824

$3.19

32

Body, Float

3130858

$119.99

33

O-Ring

3130861

$12.13

34

Screw

3130860

$8.79

35

Float

3130859

$94.99

36

Jet, Pilot (40)

3130067

$10.99

37

Jet, Starter (145)

3130769

$8.89

38

Cap

3130986

$9.70

39

Asm., Adjuster

3130987

$20.22

40

Washer

3130837

$3.19

40

Washer

3130837

$3.19

41

SPRING

3130836

$7.27

42

CAP

3130479

$14.56

43

Packing

3130835

$2.41

44

VALVE-CHECK,90,1/8"7MM BORE

7051020
