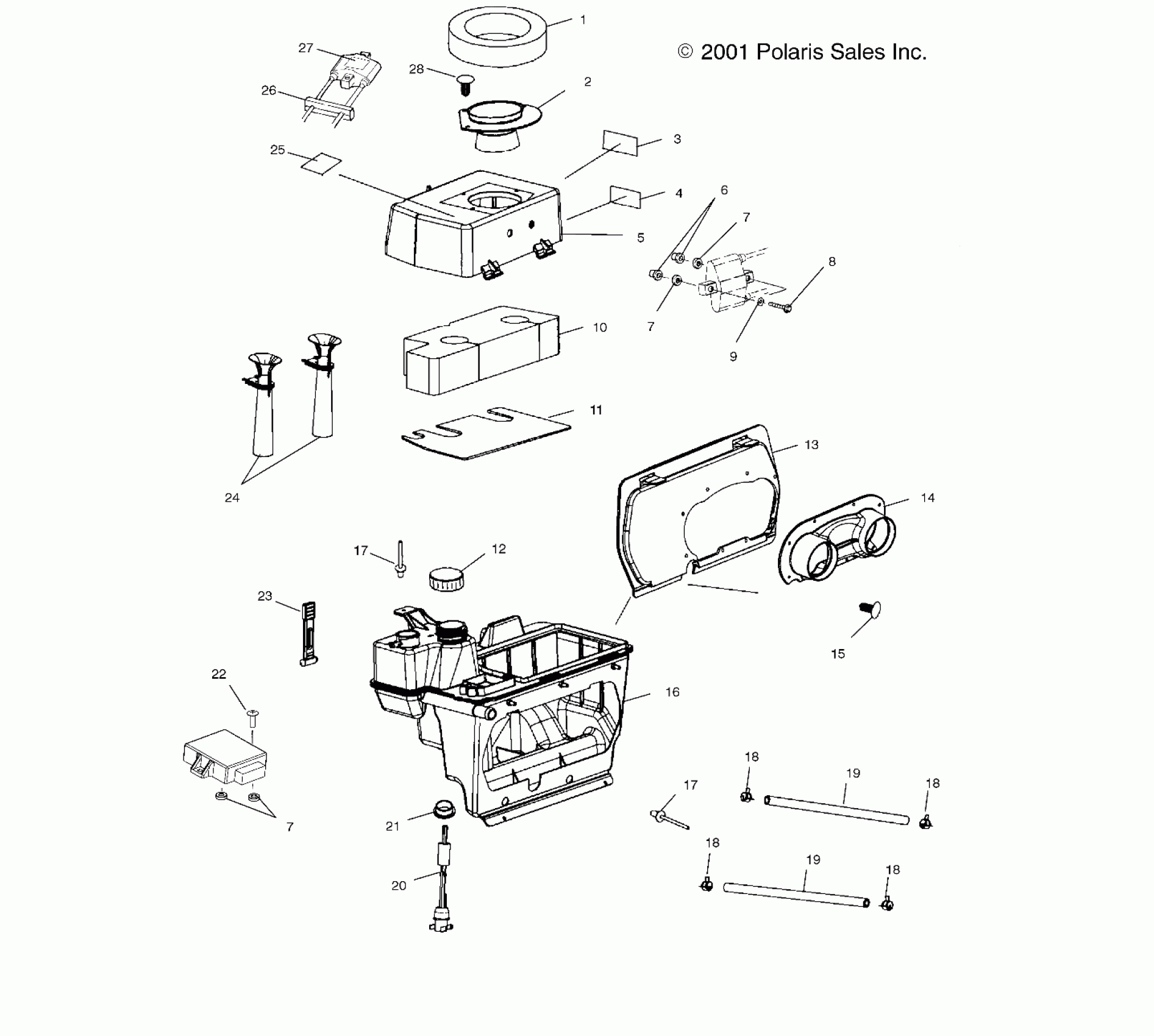

Polaris 500 XC - S02NP5AS AIR BOX - S02NP5AS (4970677067C01) Diagram

#

Description
Price

1

Foam, Air Box, Chimney

5811882

$20.22

2

Duct, Air Inlet

5433664

$12.39

3

Decal, Adjustable Driven Clutch

7073820

Unavailable

4

Decal, Greasing

7073426

$7.27

5

Cover, Air Box

1253302

$49.59

6

NUT

7547103

$8.79

7

Washer, Nylon

7555932

$2.39

7

Washer, Nylon

7555932

$2.39

7

Washer, Nylon

7555932

$2.39

8

Screw

7517610

$1.59

9

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

10

Foam, Air Box, Plate

5811979

Unavailable

11

Plate, Intake

5433665

Unavailable

12

Cap, Oil, Vented

1240094

$36.41

13

Plate, Carburetor Adaptor

5433514

$164.99

14

Boot, Carburetor Mount

5411770

Unavailable

15

Fastener, Dart Type

7080431

Unavailable

16

Silencer, Air (Incl. 20,21)

1253336

Unavailable

17

RIVET

7621472

$1.49

17

RIVET

7621472

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

Line, Fuel

8450003-1525

Unavailable

19

Line, Fuel

8450003-1525

Unavailable

20

Fitting, Oil Sender

4010224

Unavailable

21

Grommet, Oil Sender

7052305

$4.84

22

Screw

7512095

$4.79

23

STRAP-AIRBOX TOP

5433150

$24.27

24

Tube, Intake, Outer

5433662

Unavailable

25

Decal, Caution, Air Box

7075351

Unavailable

26

Clip, Ignition Cable

7080471

$3.59

27

Decal, Spark Plug Recommendation

7077026

$2.95

28

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49
