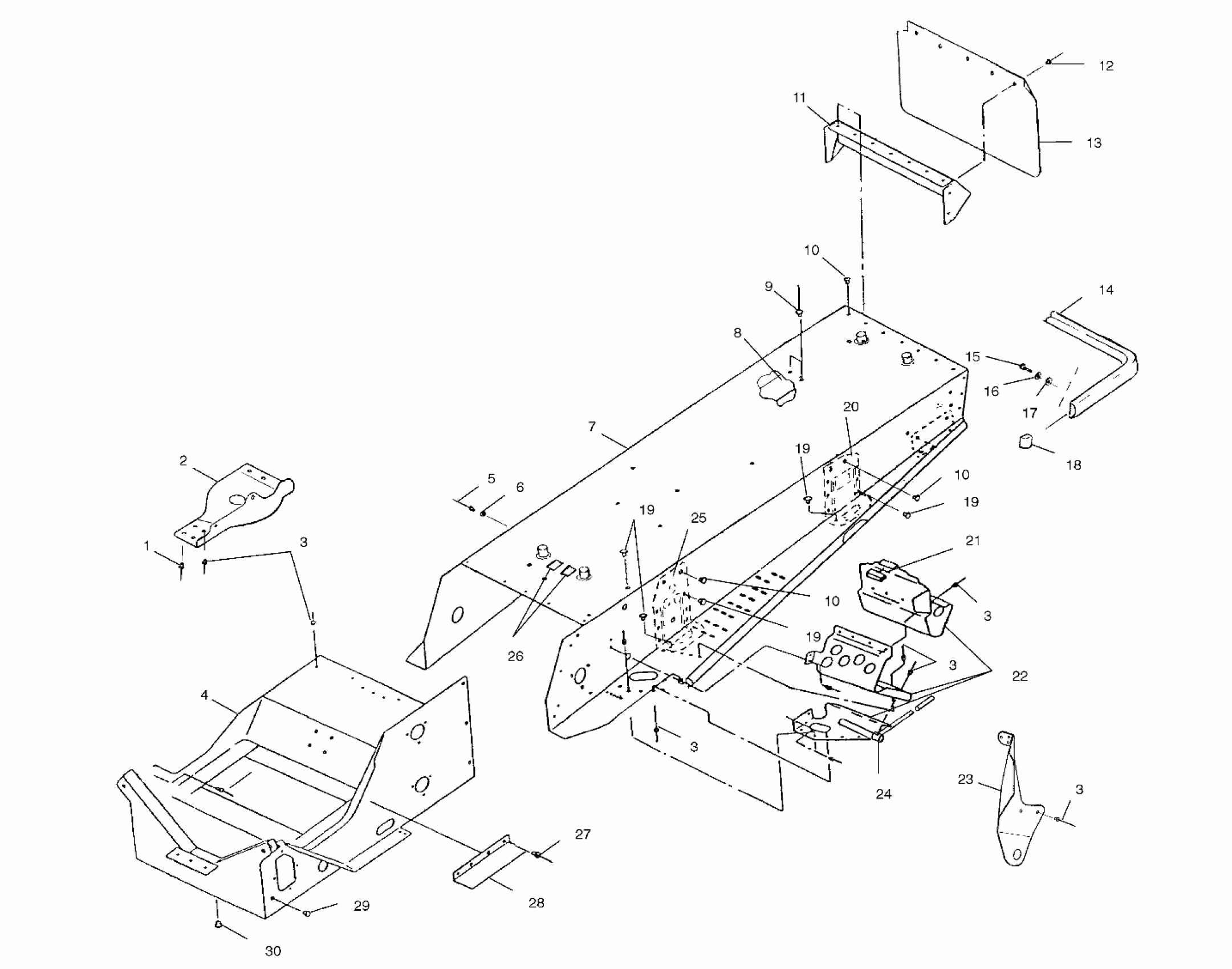

Polaris 500 XC - S00SB5AS TUNNEL - S00SB5AS (4953045304a005) Diagram

#

Description
Price

1

RIVET(50) Substituted by 7661130

7661643

Unavailable

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

3

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

BULKHEAD,CRC,GEN 2 Substituted by 1013358-067

1013102-067

Unavailable

5

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

6

SNAP-MALE(10)

7080227

Unavailable

7

TUNNEL,LIQ,X-10,BLK. Substituted by 1012670-067

1012693-067

Unavailable

8

Cooler, Wear Strip (See Footnote) (See Cooling System Pg. B4, Ref. 9)

-------

Unavailable

9

RIVET,3/16X.402(50)

7621432

$1.49

10

RIVET ,(50)

7661836

$0.63

10

RIVET ,(50)

7661836

$0.63

10

RIVET ,(50)

7661836

$0.63

11

PANEL,TUNNELBACK,BLK

5241946-067

Unavailable

12

POP RIVET(50)

7621418

$1.49

13

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

14

BUMPER,REAR Substituted by 2670168-067

2670168

Unavailable

15

BOLT(10)

7512240

$3.99

16

LOCK WASHER(10)

7552801

$1.59

17

WASHER(10)

7558301

$1.49

18

CAP,BUMPER

5431995-070

Unavailable

19

RIVET ,(50)

7661837

$1.49

19

RIVET ,(50)

7661837

$1.49

19

RIVET ,(50)

7661837

$1.49

19

RIVET ,(50)

7661837

$1.49

20

BRKT,LH,R.SUSP,BLK.

5241954-067

Unavailable

20

BRKT,RH,R.SUSP,BLK.

5241955-067

$22.23

21

EXTRUSION,CLUTCHGUARD

5521238

$6.46

22

FOOTREST,LH,BLK

1012898

Unavailable

22

FOOTREST,RH,BLK

1012899

$119.99

23

BRACE,LH,F'REST/TR.ARM MT.

5242494-067

$11.90

23

BRACE,RH,F'REST/TR.ARM MT.

5242495-067

Unavailable

24

SUPPORT,LH,TUNNEL,BLK

1012621-067

Unavailable

24

SUPPORT,RH,TUNNEL,BLK

1012622-067

$23.99

25

BRKT,LH,FR.SUSP.MTG,BLK.

5242612-067

Unavailable

25

BRKT,RH,FR.SUSP.MTG,BLK.

5242613-067

Unavailable

26

DECAL,TOP,TUNNEL STRIP

7073978

Unavailable

27

RIVET(50)

7621452

$1.49

28

GUARD,ADAPTER GUIDE

5222857

$12.94

29

PLUG, HOLE(10)

7080416

$5.65

30

PLUG-HOLE

7080398

$4.84
