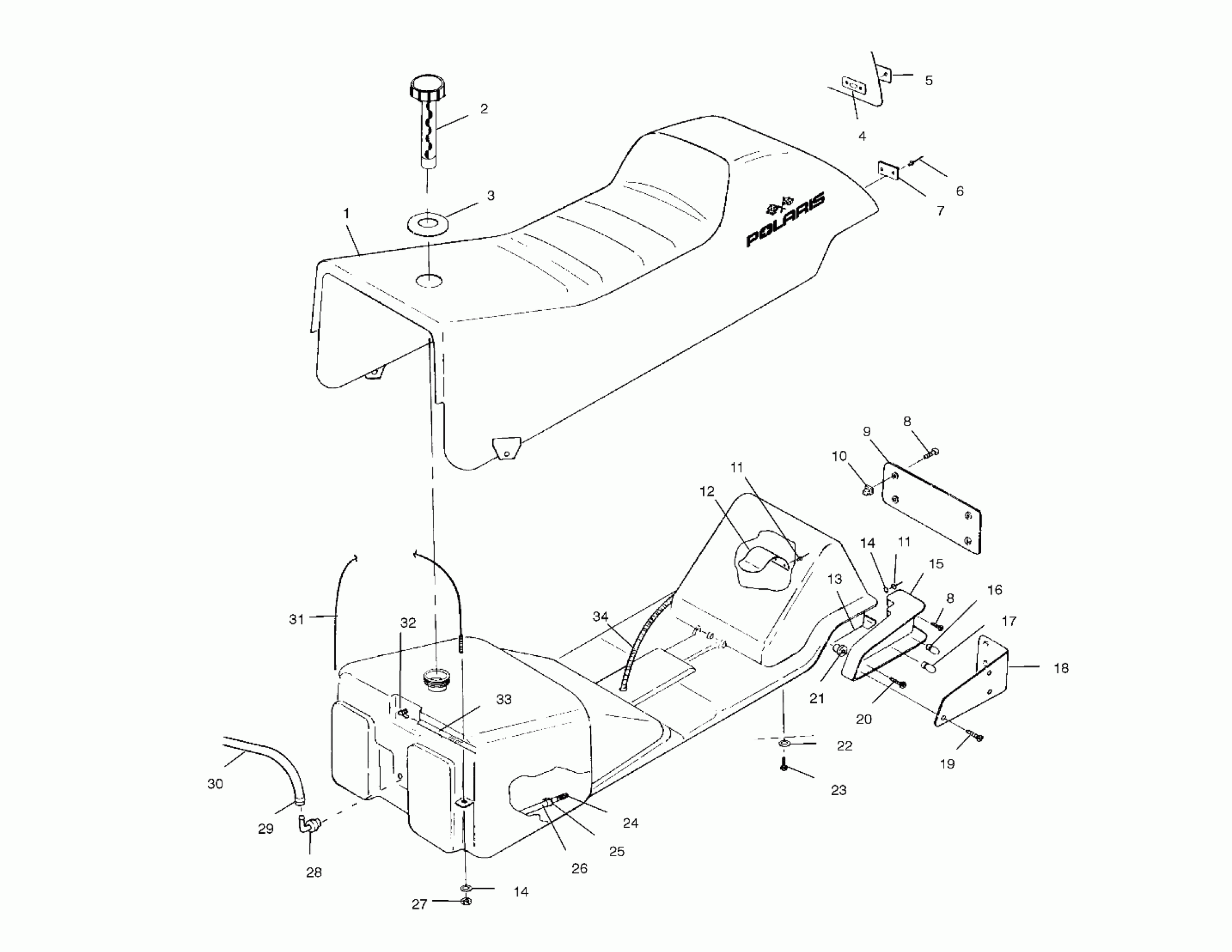

Polaris 500 XC - S00SB5AS SEAT and GAS TANK - S00SB5AS (4953045304a006) Diagram

#

Description
Price

1

COVER ASM,SEAT

2682392

Unavailable

1

SEAT,121,SCULPTED W/FILTER (Incl. 1,4-21,24-28,31-34)

2682471

Unavailable

2

CAP,GAS,W/GAUGE

2511248

$44.51

3

GROMMET,FUELTANK

5410842

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

DESC NOT_AVAILABLE

7661058

Unavailable

7

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

8

SCREW,SELF-TAP(10)

7522004

Unavailable

8

SCREW,SELF-TAP(10)

7522004

Unavailable

9

REFLECTOR,CTR,SEAT

5432008

Unavailable

10

NUT(10)

7546908

$2.63

11

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.99

11

RIVET-POP,3/16(.376-.500)(50)

7661046

$3.99

12

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

13

DESC NOT_AVAILABLE

1012838-067

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

15

HOUSING,LH,LENS

5432002

Unavailable

15

HOUSING,RH,LENS

5432003

Unavailable

16

Bulb, Brakelight

4030045

Unavailable

17

BULB, T/L.

4032084

Unavailable

18

LENS,RH

5432032

$44.51

18

LENS,LH

5432031

Unavailable

19

SCREW(10)

7512054

$2.39

20

SCREW(10)

7511954

$1.19

21

NUT, WELL(10)

7541901

$6.39

22

WASHER,WROUGHT(10)

7558302

$1.59

23

SCREW(10)

7512242

$2.39

24

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

25

RING, COMPRESSION(10)

7080402

$1.60

26

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

27

NUT(10)

7541925

$1.49

28

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

30

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

31

CABLE,TANK,RETENTION

7080559

Unavailable

32

FITTING,90 DEG,1/8,(10)

7052095

$4.79

33

FUELLINE,3MMX7MM

8450061-600

Unavailable

34

HARNESS,T/L,121,(SCULPT)

2460541

Unavailable
