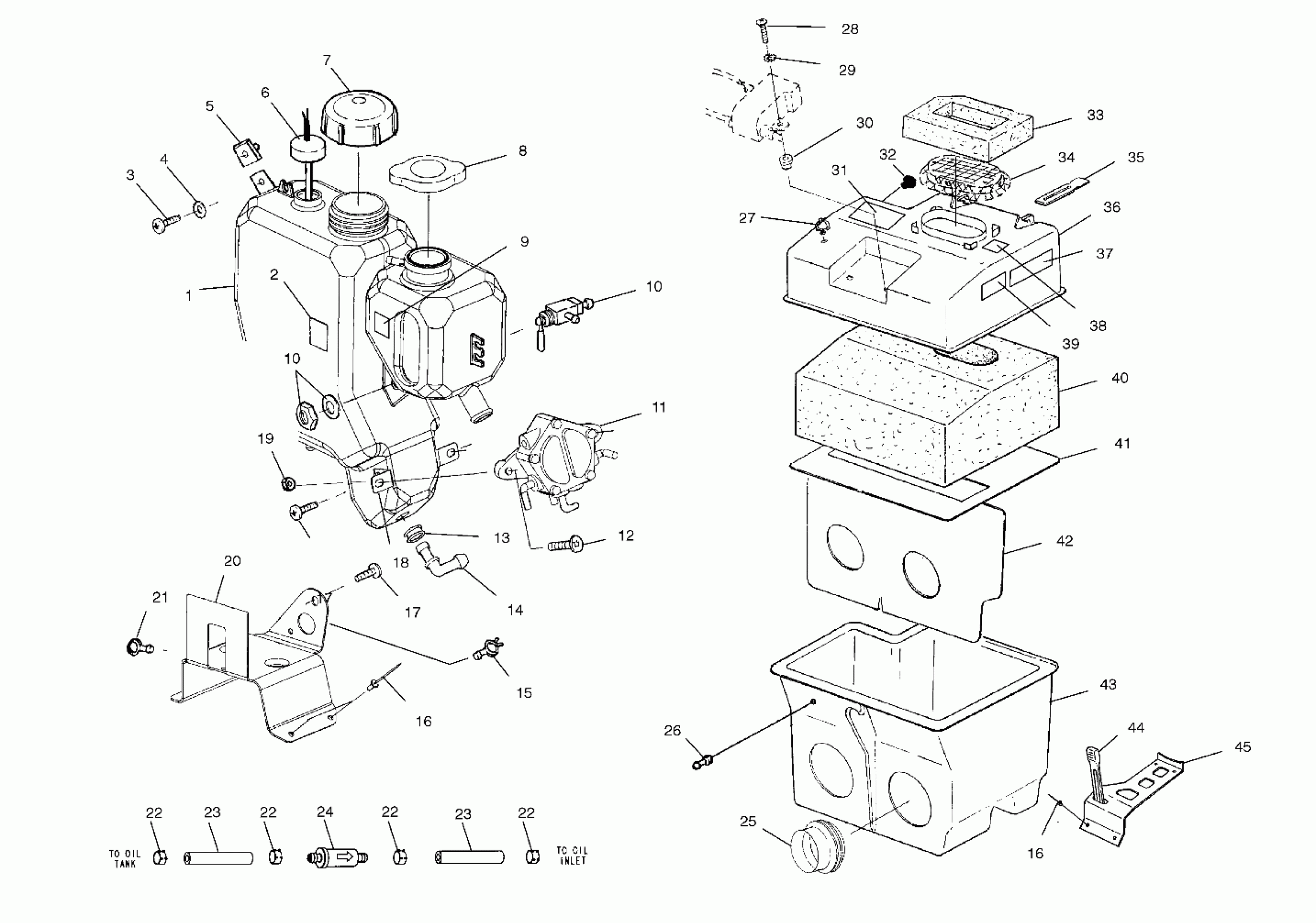

Polaris 500 XC - S00SB5AS OIL TANK/AIR BOX - S00SB5AS (4953045304c003) Diagram

#

Description
Price

1

TANK,OIL/COOLANT COMBO. Substituted by 2201437

5432749

Unavailable

2

DECAL,FUEL SHUT-OFF

7077442

Unavailable

3

BOLT(10)

7512276

$4.79

4

WASHER,WROUGHT(10)

7558302

$1.59

5

Nut

7670096

$1.59

6

SENSOR,OIL LEVEL

4110134

$72.84

7

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

8

CAP, PRESSURE,(13 LB)

2511270

$24.27

9

DECAL-SURGE TANK,"FULL COLD"

7078147

Unavailable

10

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C2, Ref. 19)

-------

Unavailable

10

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C2, Ref. 19)

-------

Unavailable

11

Pump, Fuel (See Footnote) (See Engine Mounting Pg. C2, Ref. 17)

-------

Unavailable

12

SCREW,(10)

7517455

$8.99

13

GROMMET-TANK FITTING(10)

7052028

$6.39

14

FTTNG,90 D.PRESS-ON

7052208

$6.39

15

CLIP,TWIST LOCK

7080745

$2.23

16

RIVET,INTERLOCK,B(50)

7661638

$1.49

16

RIVET,INTERLOCK,B(50)

7661638

$1.49

17

SCREW(10)

7517615

$3.19

18

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

19

NUT-LOCK(10)

7542122

$1.49

20

BRKT,OIL/COOLANT TANK,ALUM

5243636

Unavailable

21

CLIP, PLASTIC(10)

4020139

$4.79

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

25

BOOT,CARB,63MM.

5411424

Unavailable

26

FITTING,HOSE(10)

7052127

$3.19

27

CLIP,SILENCER,(10)

7670102

$2.39

28

SCREW(10)

7512279

$1.49

29

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

30

NUT-WELL(10)

7541923

$5.59

31

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

32

PLUG

5410344

$5.65

33

FOAM,AIRBOX,CHIMNEY,HYB.

5811606

Unavailable

34

MESH-WIRE,FORMED

5243219

Unavailable

35

RETAINER-TAB,(10)

5411075

Unavailable

36

TOP,SILEN.INTAKE

5432828

$66.99

37

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

38

DECAL,CAUTION,AIRBOX

7075351

Unavailable

39

DECAL, GREASING [No Longer Available]

7073426

$7.27

40

FOAM,AIRBOX,TOP,INTERNAL

5811564

Unavailable

41

PLATE,SILENCER INTAKE

5850134

Unavailable

42

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

43

SILENCER,INTAKE,DRILLED

5432882

$46.08

44

STRAP,TIE-DOWN

5411129

$8.89

45

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable
