Description

Price

1

MOUNT,WELD,H/L

1011944-067

$24.27

1

MOUNT,WELD,H/L

1011944-067

$24.27

2

BOLT(10)

7515107

Unavailable

2

BOLT(10)

7515107

Unavailable

3

NUT, SPEED(10)

7670057

$1.49

3

NUT, SPEED(10)

7670057

$1.49

4

ASM-HEADLAMP,THREE BULB (Incl. Bulbs)

2433016

$249.99

5

BULB-HEADLIGHT,50 WATT

4010253

$34.99

6

BULB,QUARTZ.H/L,INDY

2870448

$24.99

7

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

7

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

8

HOOD,HYB,SVC,BLKMT,W/O SCR (Incl. Foam/Foil)

2632069-177

Unavailable

9

CLIP,ROSEBUD

4020149

$6.39

10

CLIP,ROSEBUD,GRAY

7080886

$4.79

11

SCREW(10) Substituted by 7512048

7511953

Unavailable

12

FASTENER-U TYPE CLIP

7670040

$3.99

13

BOLT,TEE ADJUSTER,2.25

7517746

$24.99

14

SPRING,H/L.ADJ.

7041308

$3.19

15

FOAM-HEADLIGHT SEAL W/PSA

5811687

$20.22

16

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

17

NUT-LOCK(10)

7542122

$1.49

17

NUT-LOCK(10)

7542122

$1.49

17

NUT-LOCK(10)

7542122

$1.49

18

HINGE,LH,UPPER

1012750

$48.56

18

HINGE,RH,UPPER

1012751

$43.99

18

HINGE,LH,UPPER

1012750

$48.56

18

HINGE,RH,UPPER

1012751

$43.99

19

PLATE-BOLT

5242948

$9.70

19

PLATE-BOLT

5242948

$9.70

20

BOLT(10) Substituted by 7512247

7515184

Unavailable

20

BOLT(10) Substituted by 7512247

7515184

Unavailable

21

PLATE,HINGE,LOWER Substituted by 5244395

5242678

Unavailable

21

PLATE,HINGE,LOWER Substituted by 5244395

5242678

Unavailable

22

SHIM-HINGE, LOWER, BLK

5243243-067

Unavailable

22

SHIM-HINGE, LOWER, BLK

5243243-067

Unavailable

23

BOLT,(10)

7515203

$3.99

23

BOLT,(10)

7515203

$3.99

24

BRACE,HOOD,UPPER

5242945

$40.46

25

BRACE,HOOD,LOWER

5242946

$40.46

26

RIVET-3/16-.090-.290

7661637

$1.49

27

SPRING-EXT.

7041732

$7.19

28

SPRING-ATTACHMENT RING(10)

7041760

$7.99

29

CLAMP, RETAINER(10)

7080372

$3.99

30

SCREW(10)

7517441

$2.39

31

SCREEN,FRONT,HYB

5432931

$36.41

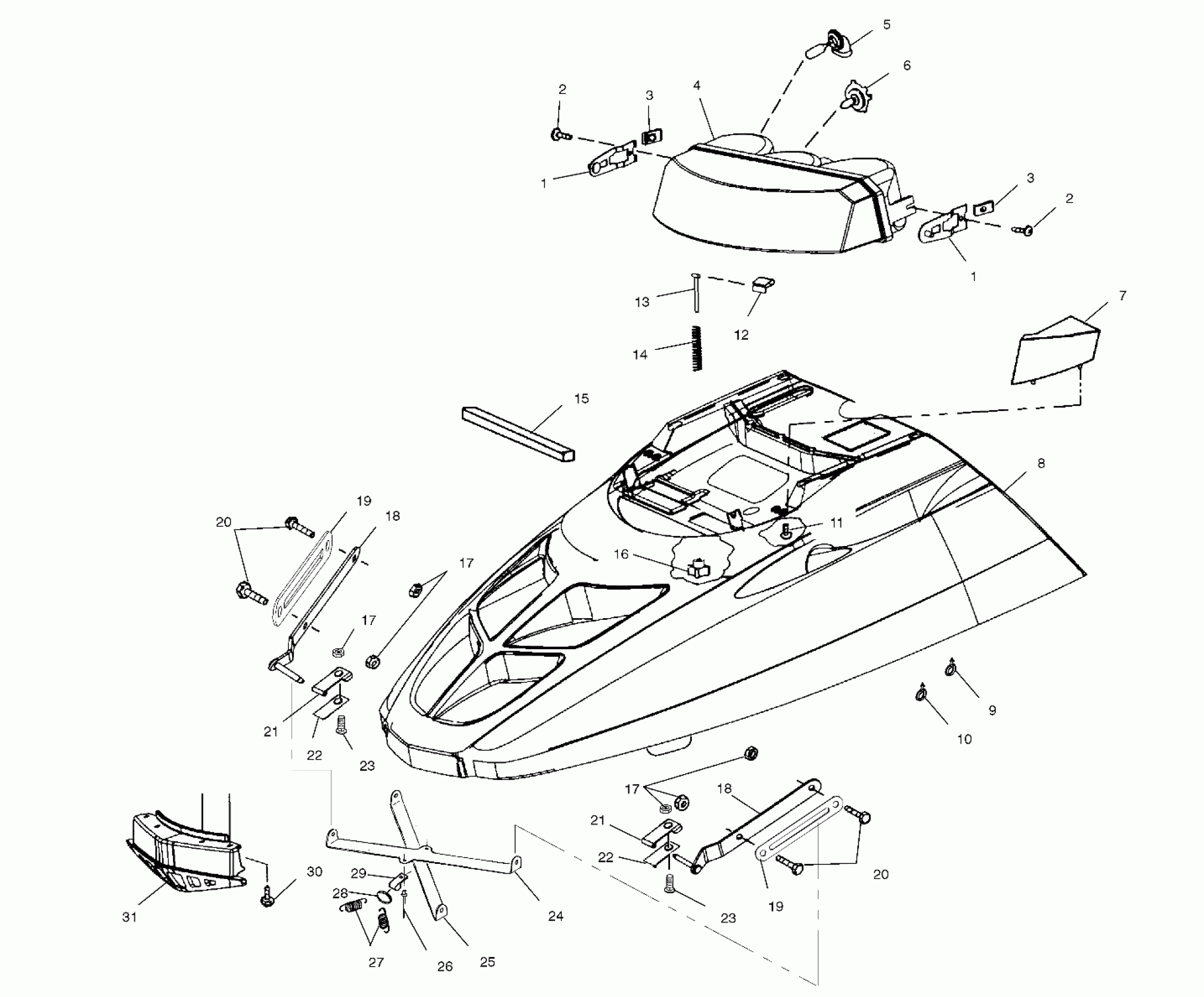

Polaris 500 XC - S00SB5AS HOOD - S00SB5AS (4953045304a009) Diagram

MOUNT,WELD,H/L

MOUNT,WELD,H/L

BOLT(10)

BOLT(10)

NUT, SPEED(10)

NUT, SPEED(10)

ASM-HEADLAMP,THREE BULB (Incl. Bulbs)

BULB-HEADLIGHT,50 WATT

BULB,QUARTZ.H/L,INDY

LENS,LH,CLR.REFLECTOR

LENS,RH,CLR.REFLECTOR

HOOD,HYB,SVC,BLKMT,W/O SCR (Incl. Foam/Foil)

CLIP,ROSEBUD

CLIP,ROSEBUD,GRAY

SCREW(10) Substituted by 7512048

FASTENER-U TYPE CLIP

BOLT,TEE ADJUSTER,2.25

SPRING,H/L.ADJ.

FOAM-HEADLIGHT SEAL W/PSA

KNOB-HEADLIGHT,ADJUST,LOCKINGB

NUT-LOCK(10)

NUT-LOCK(10)

NUT-LOCK(10)

HINGE,LH,UPPER

HINGE,RH,UPPER

HINGE,LH,UPPER

HINGE,RH,UPPER

PLATE-BOLT

PLATE-BOLT

BOLT(10) Substituted by 7512247

BOLT(10) Substituted by 7512247

PLATE,HINGE,LOWER Substituted by 5244395

PLATE,HINGE,LOWER Substituted by 5244395

SHIM-HINGE, LOWER, BLK

SHIM-HINGE, LOWER, BLK

BOLT,(10)

BOLT,(10)

BRACE,HOOD,UPPER

BRACE,HOOD,LOWER

RIVET-3/16-.090-.290

SPRING-EXT.

SPRING-ATTACHMENT RING(10)

CLAMP, RETAINER(10)

SCREW(10)

SCREEN,FRONT,HYB
