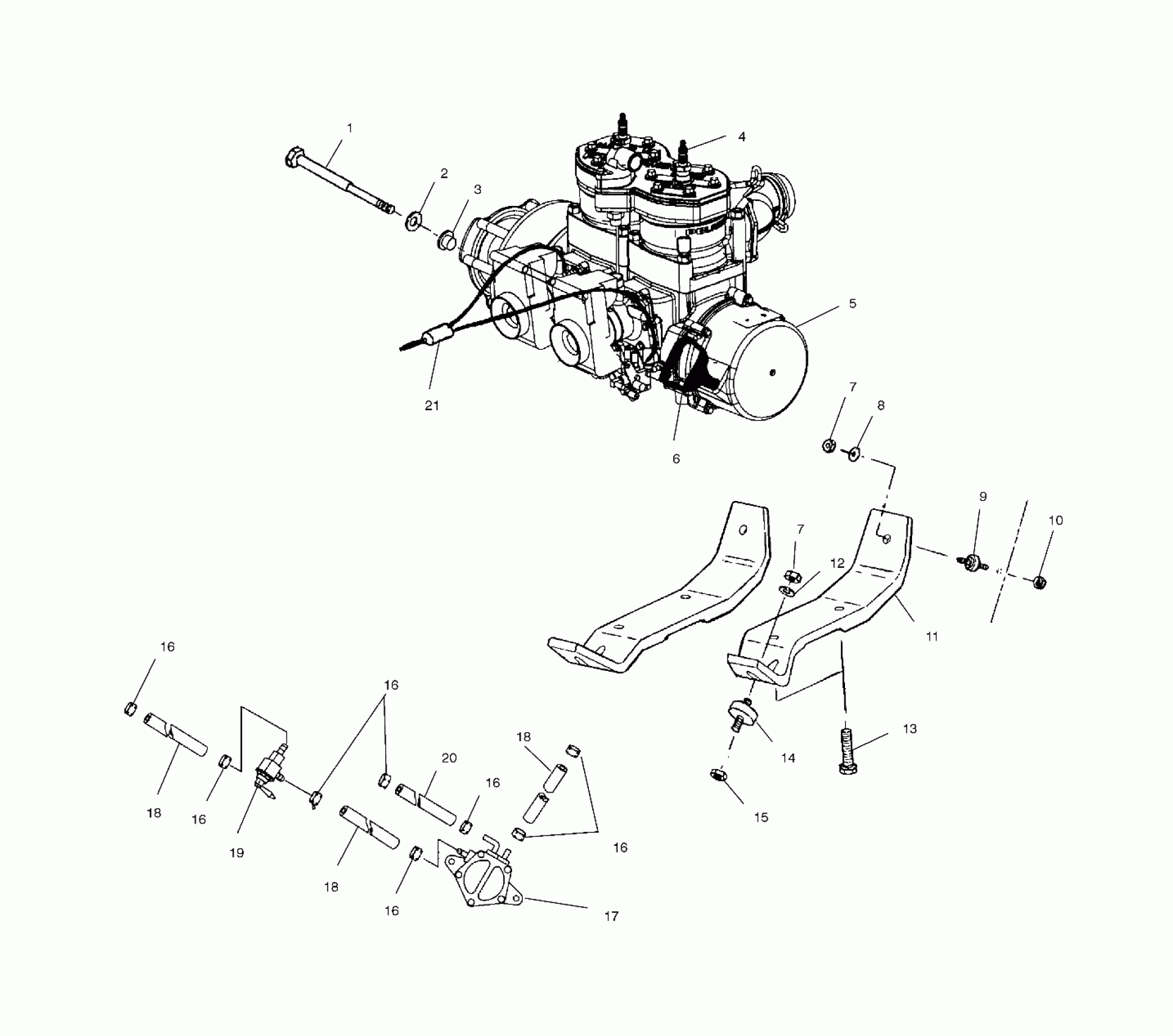

Polaris 500 XC - S00SB5AS ENGINE MOUNTING - S00SB5AS (4953045304c002) Diagram

#

Description
Price

1

SCREW,M14X1.5X215 (S/N's after 046028)

7517501

Unavailable

1

SCREW,SPEC.CLUTCH (S/N's through 046028)

7517347

Unavailable

2

WASHER(10)

7556003

$6.39

3

WASHER,CLUTCH RET. (S/N's after 046028 only)

5131872

Unavailable

4

SPARKPLUG(8)

3070165

$3.99

5

SHORT BLOCK S50-44-00,KIT [No Longer Available] (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

2201532

Unavailable

6

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

7

NUT,FLEXLOCK,(10)

7547008

$6.39

7

NUT,FLEXLOCK,(10)

7547008

$6.39

8

WASHER(10)

7555806

$1.49

9

MOUNT,ENGINE Substituted by 3021099

3110072

$28.32

10

NUT,(10)

7547022

Unavailable

11

STRAP,LH,ENG.MOUNT

5131876

$66.99

11

STRAP,RH,ENG.MOUNT

5131877

$66.99

12

WASHER(10)

7555893

$1.49

13

Screw

7517399

$8.99

14

MOUNT,ENG.

3110061

$84.99

15

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

16

HOSE CLAMP, RED

7080003

$1.49

17

PUMP,FUEL,1 OUTLET

2520135

Unavailable

18

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

18

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

18

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

19

VALVE,FUEL SHUTOFF

7052211

Unavailable

20

FUEL LINE, 5 FT.

8450045-153

Unavailable

21

CABLE,THROTTLE,W/OIL,38MM.RACK

7080733

Unavailable
