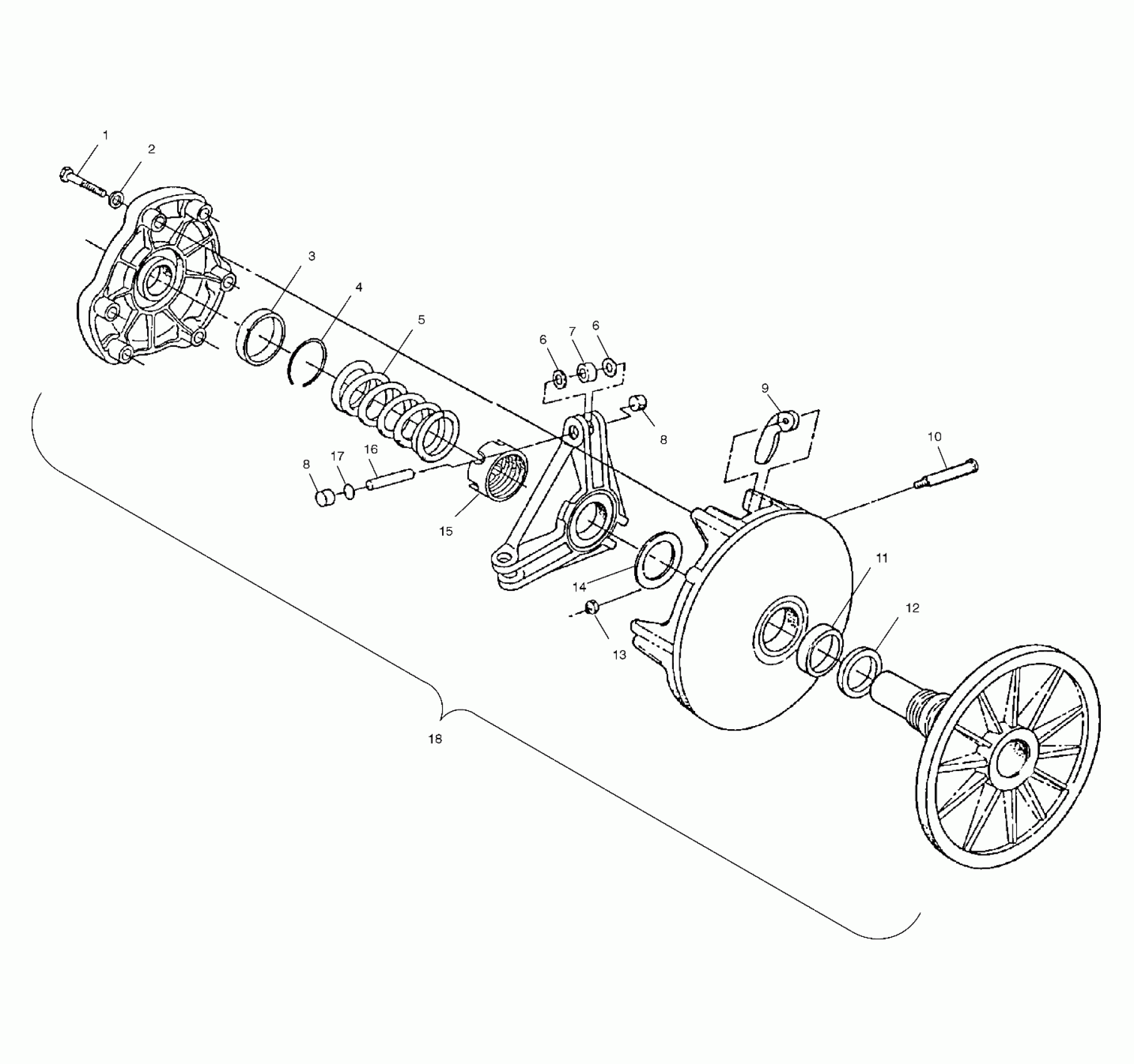

Polaris 500 XC - S00SB5AS DRIVE CLUTCH - S00SB5AS (4953045304b013) Diagram

#

Description
Price

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-CLUTCH,DARK BLUE/WHT

7041781

$56.65

6

WASHER,MULTILUBE

5430945

$1.59

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

BUTTON, GUIDE,(10)

5430445

$6.39

8

BUTTON, GUIDE,(10)

5430445

$6.39

9

WT/BUSH.ASM,10-56(6)

1321684

$59.99

10

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

11

SLEEVE, BEARING

3576502

$23.99

12

INSERT-MOVEABLE

5010188

$7.99

13

NUT FLEX LOC(10)

7541906

$3.19

14

SPACER(10) (.050mm)

5210754

Unavailable

14

SPACER(10) (.025mm)

5242981

Unavailable

14

SPACER(10) (.020mm)

5210752

Unavailable

14

SPACER(10) (.032mm)

5210753

Unavailable

15

NUT-JAM

5020425

$23.99

16

PIN-ROLLER

5020422

$2.39

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

KIT,REBUILD,WIDE ROLLER (Incl. 5,6,15)

2201169

$169.98

18

CLUTCH,BASIC#101(DRIVE) (See Footnote) (S/N's after 046028)(Incl. All Less 5,9)

1321792

Unavailable

18

CLUTCH,BASIC#73(DRIVE) Substituted by 2201886 (See Footnote) (S/N's through 046028)(Incl. All Less 5,9)

1321713

Unavailable
