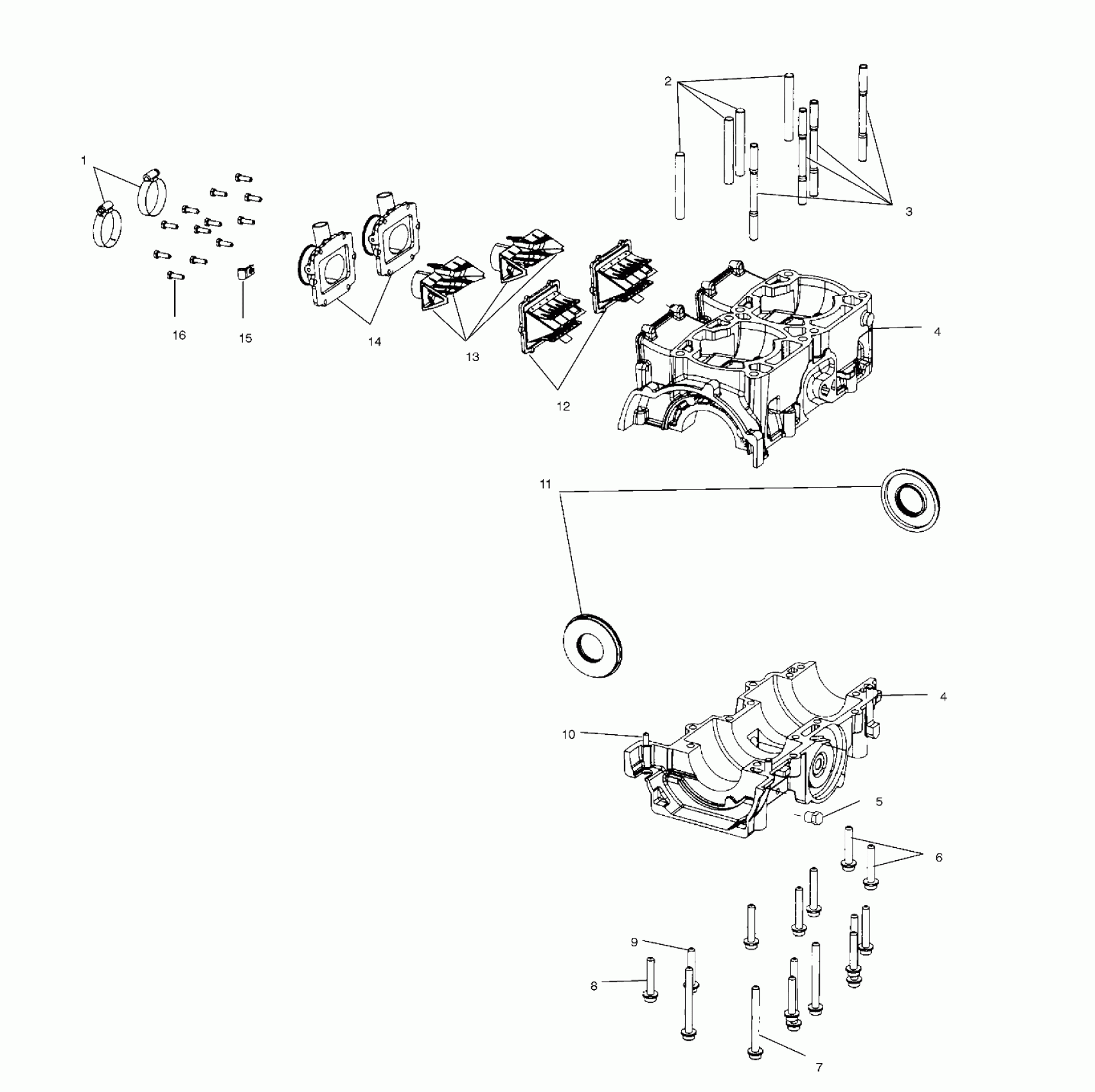

Polaris 500 XC - S00SB5AS CRANKCASE - S00SB5AS (4953045304c005) Diagram

CLAMP,HOSE,SS,(10)

7080681

$9.59

STUD,CYL.FLG,81.0MM SPS Substituted by 5132196

5131767

$20.48

STUD,CYL.FLG,118.5MM SPS Substituted by 5132197

5131766

$21.27

KIT,CRANKCASE,TWN SNO 500/440 (Incl. 2,3,5-10)

2201555

Unavailable

KIT,CRANKCASE,TWN SNO 500/440 (Incl. 2,3,5-10)

2201555

Unavailable

PLUG Substituted by 7052311

7051529

$15.99

SCREW,M8X1.25X55

7517448

$2.39

SCREW

7517244

Unavailable

SCREW

7516825

$5.59

SCREW

7517214

$7.03

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

SEAL,FLANGED

5411394

$29.99

VALVE,REED 1242,G10 S/B

1201843

Unavailable

STUFFER,REED,75.5MM(38MM.CARB)

5432852

Unavailable

ADAPTER,CARB,TM/RACK,440 BASE

1253217

Unavailable

CLAMP,HOSE(10)

7080683

$2.39

SCREW,(10)

7517398

$3.19
