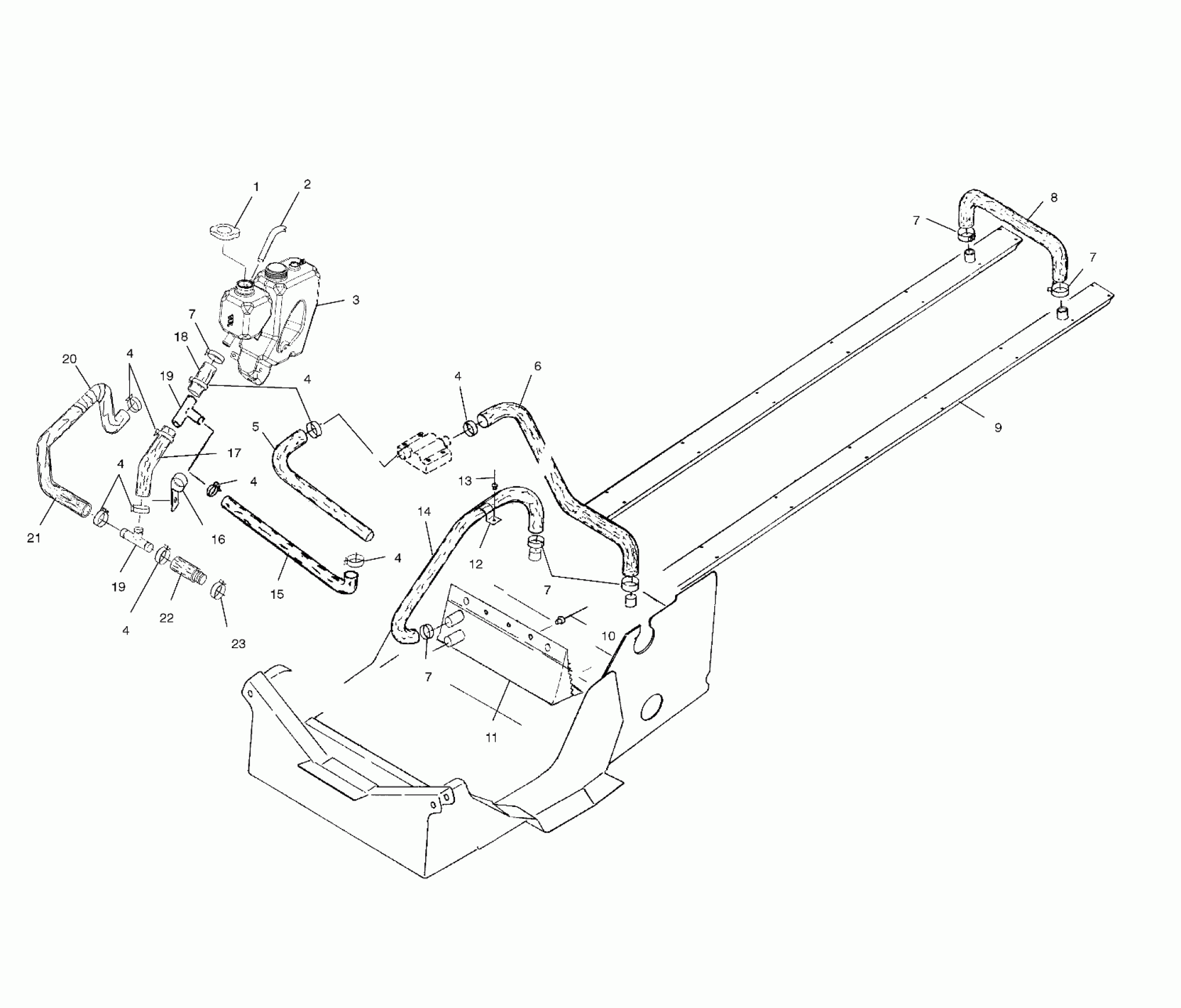

Polaris 500 XC - S00SB5AS COOLING SYSTEM - S00SB5AS (4953045304b004) Diagram

#

Description
Price

1

Cap, Pressure, 13 lb. (See Footnote) (See Oil Tank/Air Box Pg. C3, Ref. 8)

-------

Unavailable

2

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

3

Tank, Oil/Coolant (See Footnote) (See Oil Tank/Air Box Pg. C3, Ref. 1)

-------

Unavailable

4

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

4

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

4

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

4

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

4

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

4

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

4

CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844

7080564

$10.32

5

HOSE,ENGINE OUT/BRAKE COOLER

5411662

Unavailable

6

HOSE,BRK.COOL/WEARSTRIP

5411380

Unavailable

7

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

7

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

7

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

7

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

7

CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841

7080562

Unavailable

8

HOSE,R.WEARSTRIP,COOLER

5411383

Unavailable

9

WEARSTRIP,COOLER

2511297

Unavailable

10

RIVET,INTERLOCK,B(50)

7661638

$1.49

11

EXCHANGER,CLOSE-OFF

2511304

$399.99

12

CLAMP, 1"HOSE(10)

7080585

$3.99

13

POP RIVET(50)

7621425

$1.49

14

HOSE,CLOSE-OFF/WEAR STRIP COOL

5411260

Unavailable

15

HOSE,BYPASS OUT/TEE IN

5411611

Unavailable

16

CLAMP,HOSE 1.375,VNL ECOATED

7080908

$8.99

17

HOSE,TEE OUT/TEE IN

5411612

$17.43

18

HOSE,TEE/BOTTLE(SN70)

5411481

Unavailable

19

CONNECTOR, TEE,(1 IN.)

7052087

Unavailable

19

CONNECTOR, TEE,(1 IN.)

7052087

Unavailable

20

TUBING-CONVOLUTED 1.25"X3"

5521510

$29.99

21

HOSE,TEE/CENTER COOLER W/SPR

5411616

Unavailable

22

HOSE,TEE OUT/PUMP IN

5411613

Unavailable

23

CLAMP-HOSE, 1.750-SS

7080560

$11.19
