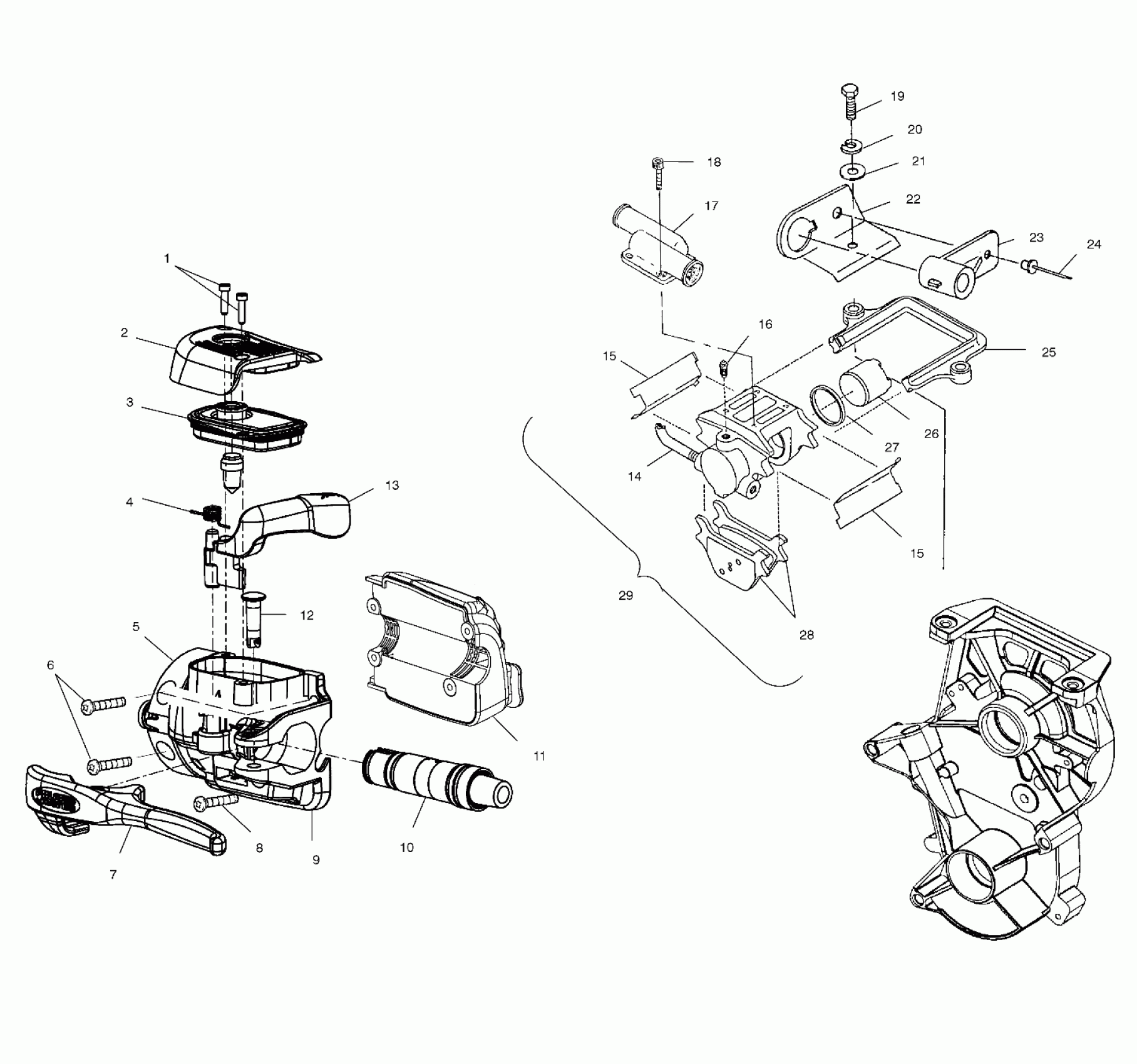

Polaris 500 XC - S00SB5AS BRAKE - S00SB5AS (4953045304a014) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,12)

2050087

$304.98

6

SCREW(10)

7517441

$2.39

7

LEVER AND PIVOT PIN,HAYES,KIT Substituted by 2201943

2201569

$52.60

8

SCREW(10)

7517566

$3.99

9

KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948

2201249

$304.98

9

SWITCH,BRAKE LIGHT

4010157

Unavailable

10

KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944

2201248

Unavailable

11

CONTROL ASM,LH,(BASIC)

2010167

$93.08

12

KIT,PIVOT PIN,(HAYES) Substituted by 2201946

2201252

Unavailable

13

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

14

LINE-BRAKE,HYBRID

1910313

Unavailable

15

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

15

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

16

KIT, INLET

1930735

$9.11

17

COOLER,WATER,BRAKE

1930728

$62.39

17

GASKET,BRK.COOLER

2201024

$7.99

18

PK/4,SCREW SET (Pkg. of 4)

1930729

$29.49

19

BOLT(10)

7515521

$3.99

20

WASHER(10)

7552603

$1.49

21

WASHER(10)

7555806

$1.49

22

BRKT,ROPE GUIDE,BLK.

5240171-067

Unavailable

23

GUIDE, RECOIL

5431385

$10.51

24

RIVET(50)

7621433

$1.49

25

KIT,CALIPER BRKT.

1930733

Unavailable

26

KIT, PISTON SEAL (Incl. 27)

1930734

Unavailable

27

SEAL

2200466

$32.37

28

KIT,BRAKE,PAD TYPE 81(LARGE) (Incl. 15)

2201430

Unavailable

28

KIT,BRAKE,PAD TYPE 81(SMALL) (Incl. 15)

2201429

Unavailable

29

BRAKE CALIPER,HD,LIQ,NOSW (Incl. 26,27,28)

1910344

Unavailable
