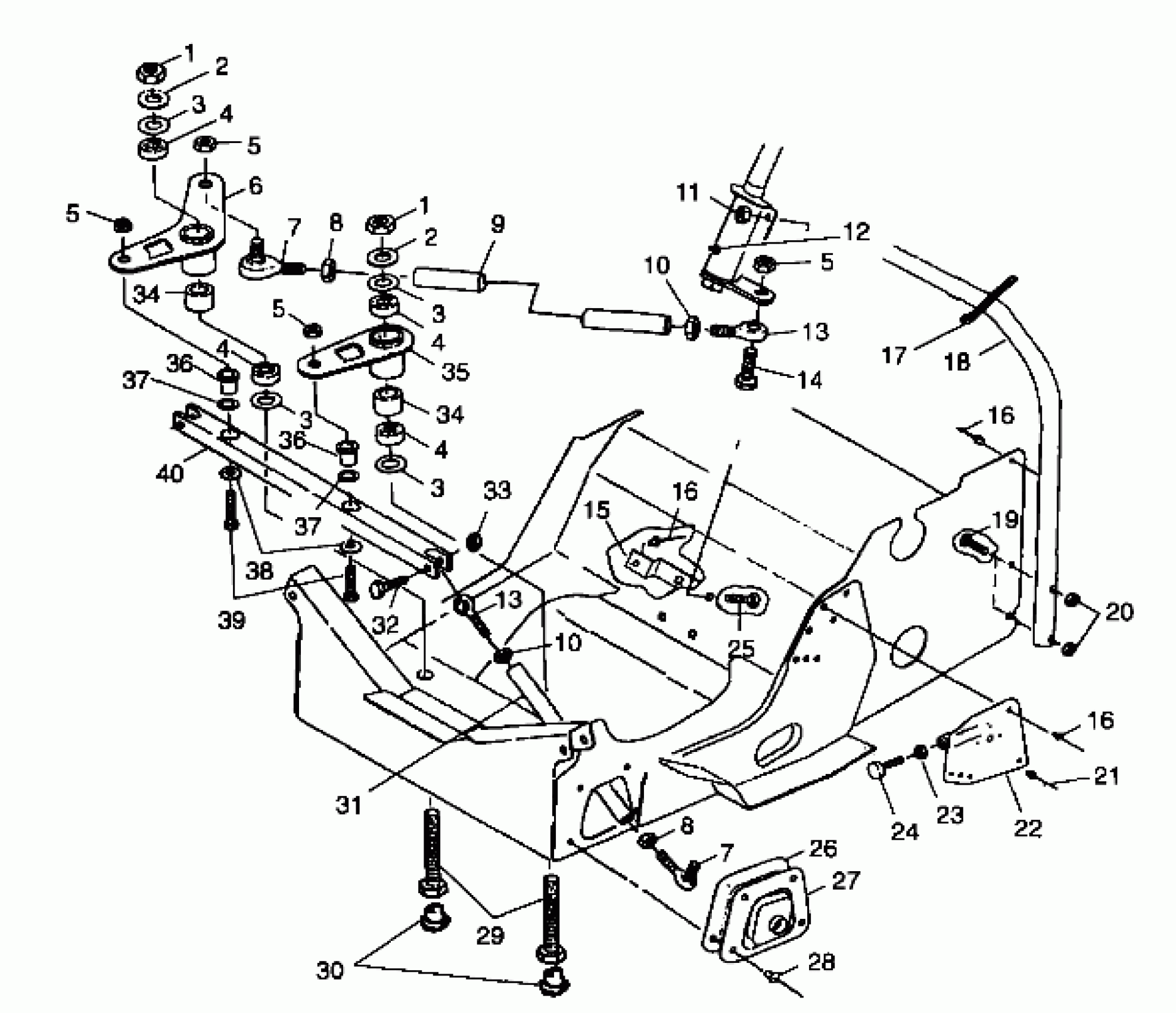

Polaris 500 XC - 099SB5AS STEERING - 099SB5AS (4950155015b006) Diagram

#

Description
Price

1

NUT,FLEX LOCK(10)

7547029

Unavailable

1

NUT,FLEX LOCK(10)

7547029

Unavailable

2

WASHER(10)

7555721

$1.49

2

WASHER(10)

7555721

$1.49

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

3

WASHER THRUST(10)

7558702

$1.59

4

BEARING-BALL, 600ILLU

3514320

$15.99

4

BEARING-BALL, 600ILLU

3514320

$15.99

4

BEARING-BALL, 600ILLU

3514320

$15.99

4

BEARING-BALL, 600ILLU

3514320

$15.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

5

NUT LOCK(10)

7542403

$3.99

6

ARM ASM,PITMAN (Incl. 4,34)

1820573

$61.99

7

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

7

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

8

NUT HEX(10)

7542401

$2.39

8

NUT HEX(10)

7542401

$2.39

9

ROD,DRAG LINK

5333408

$20.63

10

NUT

7542424

$1.49

10

NUT

7542424

$1.49

11

NUT FLEX-LOC(10)

7542303

$6.39

12

FITTING,LUB/VEN(10)

7080561

$4.79

13

ROD END,LH

7060166

$48.56

13

ROD END,LH

7060166

$48.56

14

BOLT(10)

7512404

$3.99

15

BRKT,BOLT RETAINER

5241997

$1.44

16

RIVET,INTERLOCK,B(50)

7661638

$1.49

16

RIVET,INTERLOCK,B(50)

7661638

$1.49

16

RIVET,INTERLOCK,B(50)

7661638

$1.49

17

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

18

STEERING HOOP,BLK Substituted by 1013153-067

1012795-067

$41.59

19

BOLT-CARRIAGE(10)

7512275

$3.99

20

NUT, LOCK(10)

7542103

$5.59

21

RIVET(50) Substituted by 7661130

7661643

Unavailable

22

TORQUE STOP SN44

1012854

Unavailable

23

NUT(10)

7542404

$1.59

24

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

25

BOLT,(10)

7517428

$2.39

26

BOOT,TIEROD,MOD

5411249

Unavailable

27

PLATE,BOOT,MOD

5211796-067

$31.35

28

POP RIVET(50)

7621323

$1.49

29

SCREW,(10)

7517402

$3.59

30

PLUG,HOLE(10)

7080689

$5.75

31

TIEROD, BLK

5020914-067

Unavailable

32

SCREW(10)

7515434

Unavailable

33

NUT LOCK(10)

7542411

$3.19

34

Bushing

5010417

$6.63

34

Bushing

5010417

$6.63

35

ARM ASM,IDLER (Incl. 4,34)

1820577

$74.27

36

TUBE,SPACER

5010384

Unavailable

36

TUBE,SPACER

5010384

Unavailable

37

O-RING

5411220

$6.46

37

O-RING

5411220

$6.46

38

WASHER(10)

7555893

$1.49

39

BOLT(10)

7515415

$1.49

40

RACK ASM,STEERING

1822467

Unavailable
