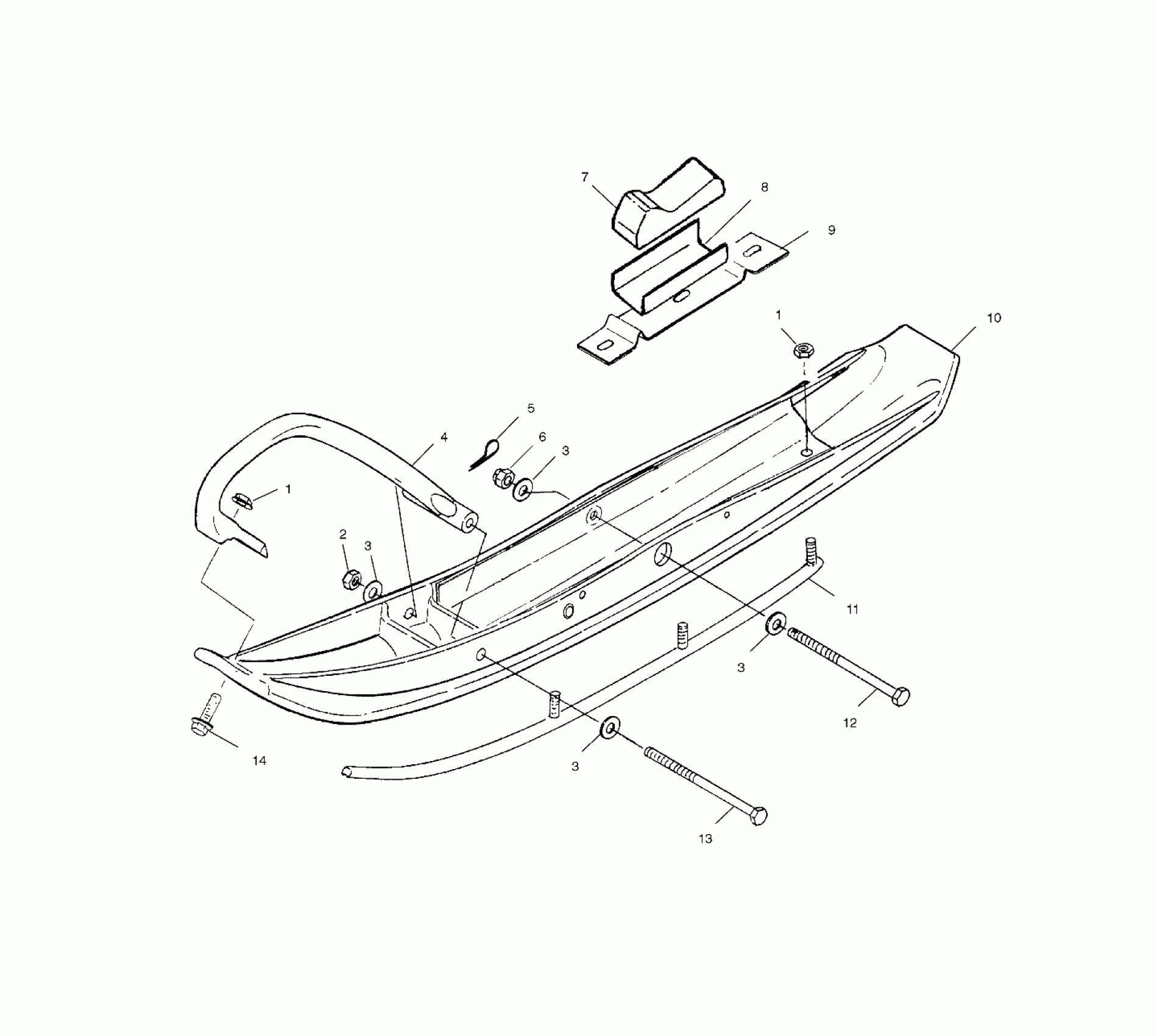

Polaris 500 XC - 099SB5AS SKI - 099SB5AS (4950155015b003) Diagram

NUT LOCK(10)

7542321

$1.49

NUT LOCK(10)

7542321

$1.49

NUT, FLEXLOC(10) Substituted by 7542411

7542452

Unavailable

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

WSHR-.813X.406X.105-Y

7555832

$2.39

TOE,PLASTIC SKI,BLK Substituted by 5434165-070

5432209-070

$40.46

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

STOP,RUBBER

5411094

Unavailable

RETAINER-SKI RUBBER Substituted by 5243824

5243127

$27.78

SUPPORT,SKI,RUBBER,BLK

5241912-067

Unavailable

SKI ASM,COMP/RCK SDL,BLK

1820506-070

Unavailable

KIT,SKAG,7/16,3",COMP.

2871815

Unavailable

SCREW,(10)

7512596

$19.99

BOLT(10)

7515514

$7.19

BOLT(10)

7515307

$3.99
