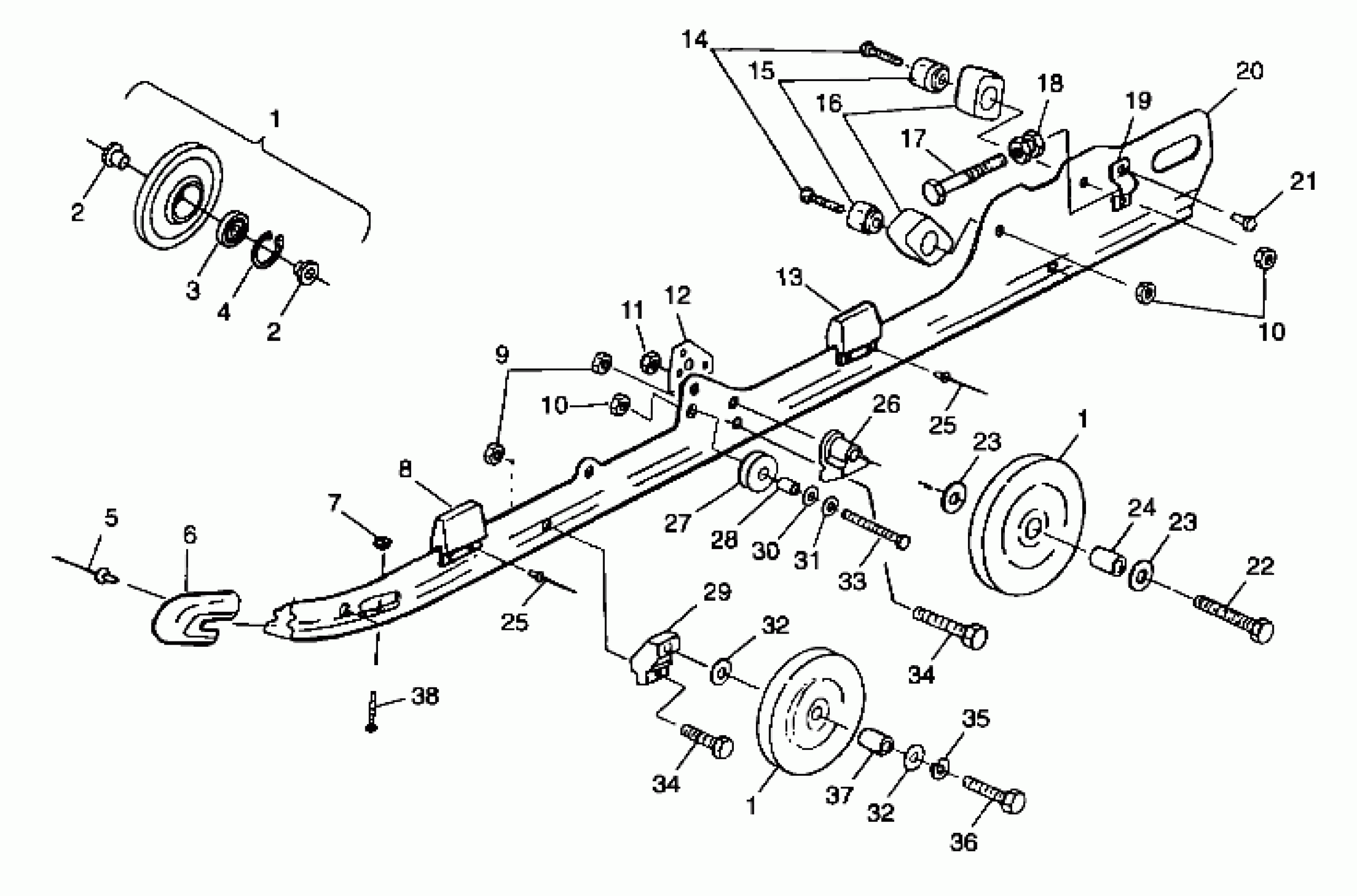

Polaris 500 XC - 099SB5AS RAIL MOUNTING (SUSPENSION) - 099SB5AS (4950155015b009) Diagram

#

Description
Price

1

WHEEL,BOGIE,SCRL,RACERED (Incl. 2-4)

1594082-239

Unavailable

1

WHEEL,BOGIE,SCRL,RACERED (Incl. 2-4)

1594082-239

Unavailable

1

WHEEL,BOGIE,SCRL,RACERED (Incl. 2-4)

1594082-239

Unavailable

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

2

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

3

BEARING (1 per Wheel)

3514303

$11.99

4

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

5

RIVET(50)

7621435

$1.49

6

COVER,RAIL TIP

5433005

Unavailable

7

NUT-LOCK(10)

7542122

$1.49

8

REINF., BUMPER

5222629

$13.75

8

BUMPER, RAIL

5810554

$7.27

9

NUT-LOCK(10)

7542439

$1.49

10

NUT LOCK(10)

7542411

$3.19

10

NUT LOCK(10)

7542411

$3.19

11

NUT, NYLOCK(10)

7542525

$4.79

12

BRKT,RAIL,REINF

5211790

Unavailable

13

REINF., BUMPER

5222629

$13.75

13

BUMPER,SUSPENSION

5811097

Unavailable

14

BOLT,(10)

7515545

$5.59

15

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

16

BUMPER,F.PIVOT ARM

5410925

$12.94

17

BOLT, ADJUSTER(10)

7515455

$29.99

18

NUT,TENSIONER ADJ.

5020943

$20.22

19

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

20

RAIL,XTRA 10,121,LH (Incl. 6,8,13,16,19)

1541336

$319.99

20

RAIL,XTRA 10,121,RH (Incl. 6,8,13,16,19)

1541337

$329.99

21

RIVET,(50)

7621501

$2.39

22

BOLT(10)

7512538

$6.39

23

WASHER, FLAT(10)

7555852

$2.39

23

WASHER, FLAT(10)

7555852

$2.39

24

SPACER, WHEEL

5333116

$7.99

25

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

25

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

26

SPACER

5630399

$11.99

27

ROLLER,SPRING,SQUARE(X10)

5432982

$9.70

28

Spacer

5332787

Unavailable

29

BRACKET,BOGIE WHEEL

5130570

$48.56

30

WASHER(10)

7555806

$1.49

31

WASHER ,(10)

7555976

$3.99

32

WASHER(10)

7555804

$3.99

32

WASHER(10)

7555804

$3.99

33

BOLT Substituted by 7515491

7515433

$1.59

34

BOLT(10)

7512404

$3.99

34

BOLT(10)

7512404

$3.99

35

LOCK WASHER(10)

7553201

$3.99

36

BOLT(10)

7512659

$7.99

37

SPACER

5332786

$7.99

38

BOLT(10)

7515175

$3.99
