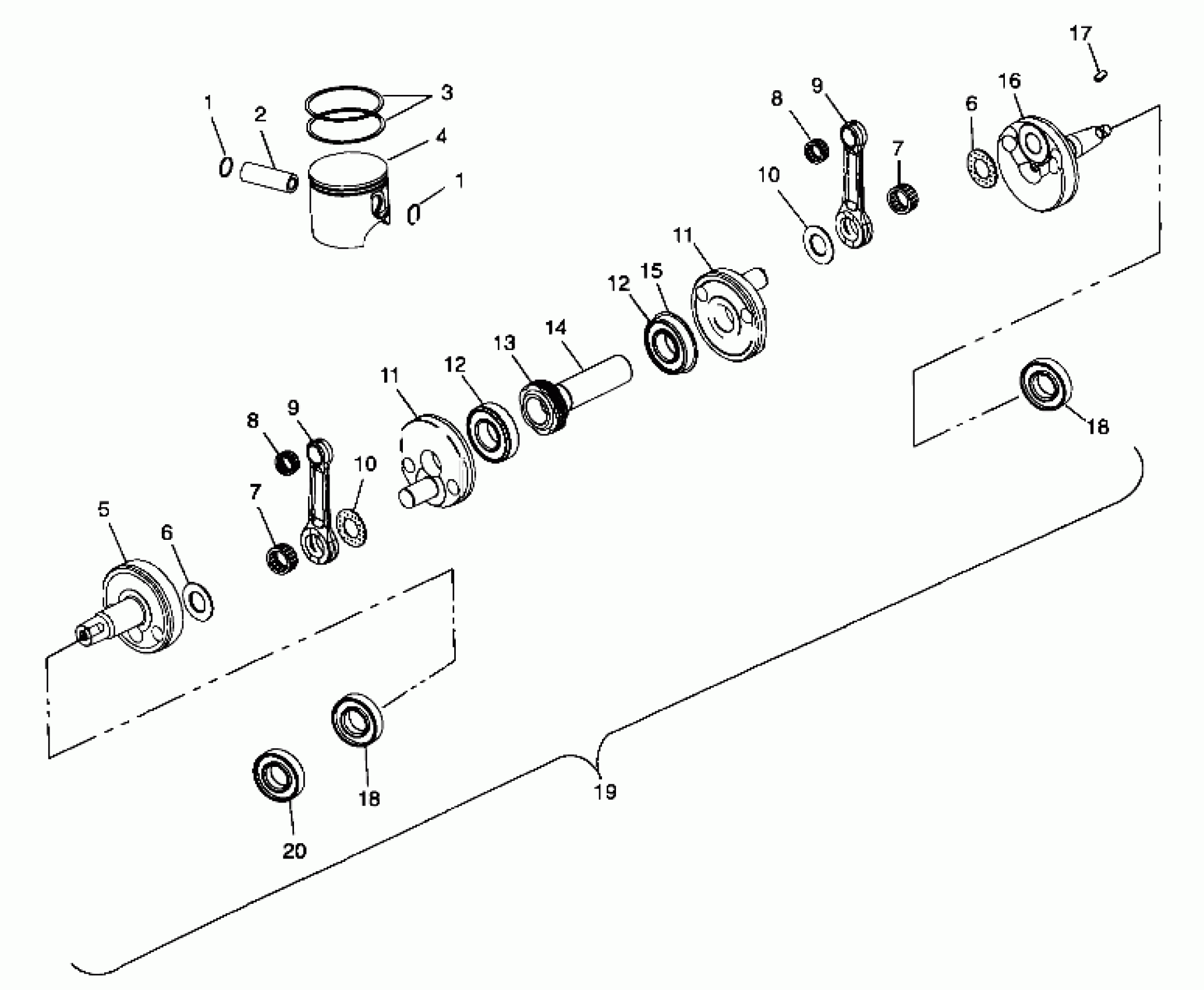

Polaris 500 XC - 099SB5AS PISTON and CRANKSHAFT - 099SB5AS (4950155015c008) Diagram

#

Description
Price

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

2

Pin, Piston

3022961

Unavailable

3

KIT,PISTONRINGS,70.5MM. (Standard)

2201196

Unavailable

3

KIT,PISTONRINGS (.25MM O/S) (.25mm/.010 O/S)

2201198

Unavailable

3

KIT,PISTONRINGS(.50MM O/S) (.50mm/.020 O/S)

2201193

$63.79

4

PISTON,ASM,70.5MM (Incl. 1-3)

2201383

Unavailable

4

PISTON,ASM 70.5MM (+.25OS) (.25mm/.010 O/S)

2201395

$154.99

4

PISTON,ASM 70.5MM (+.500S) (.50mm/.020 O/S)

2201396

$190.46

5

CRANKWEB,PTO,64MM [Must Purchase Assembly] (Incl. Bearing)

5131748

Unavailable

6

WASHER

-------

Unavailable

6

WASHER

-------

Unavailable

7

BEARING

-------

Unavailable

7

BEARING

-------

Unavailable

8

Bearing

3552108

Unavailable

8

Bearing

3552108

Unavailable

9

KIT,CONNECT.ROD (Incl. 6,7,10,11)

2201132

$464.99

9

KIT,CONNECT.ROD (Incl. 6,7,10,11)

2201132

$464.99

10

WASHER

-------

Unavailable

10

WASHER

-------

Unavailable

11

CRANKWEB, CENTER

-------

Unavailable

11

CRANKWEB, CENTER

-------

Unavailable

12

BEARING,CRANK,SEALED

3513508

$54.99

12

BEARING,CRANK,SEALED

3513508

$54.99

13

GEAR,PUMP DRIVE

5131373

Unavailable

14

SHAFT,CRANK,PUMPDRIVE

5131353

$56.79

15

RING,SNAP(10)

7710447

$5.43

16

CRANKWEB,MAG.64MM [Must Purchase Assembly] (Incl. Bearing)

5131750

Unavailable

17

KEY,WOODRUFF(10)

7721117

$24.99

18

BEARING,BALL

3585503

$31.99

18

BEARING,BALL

3585503

$31.99

19

KIT,CRANKSHAFT,2CYL,SNO,MAPE (Incl. 5-7,9-16,18,20)

2201234

$1,794.99

20

BEARING,BALL,EXTRACE

3514310

$39.99
