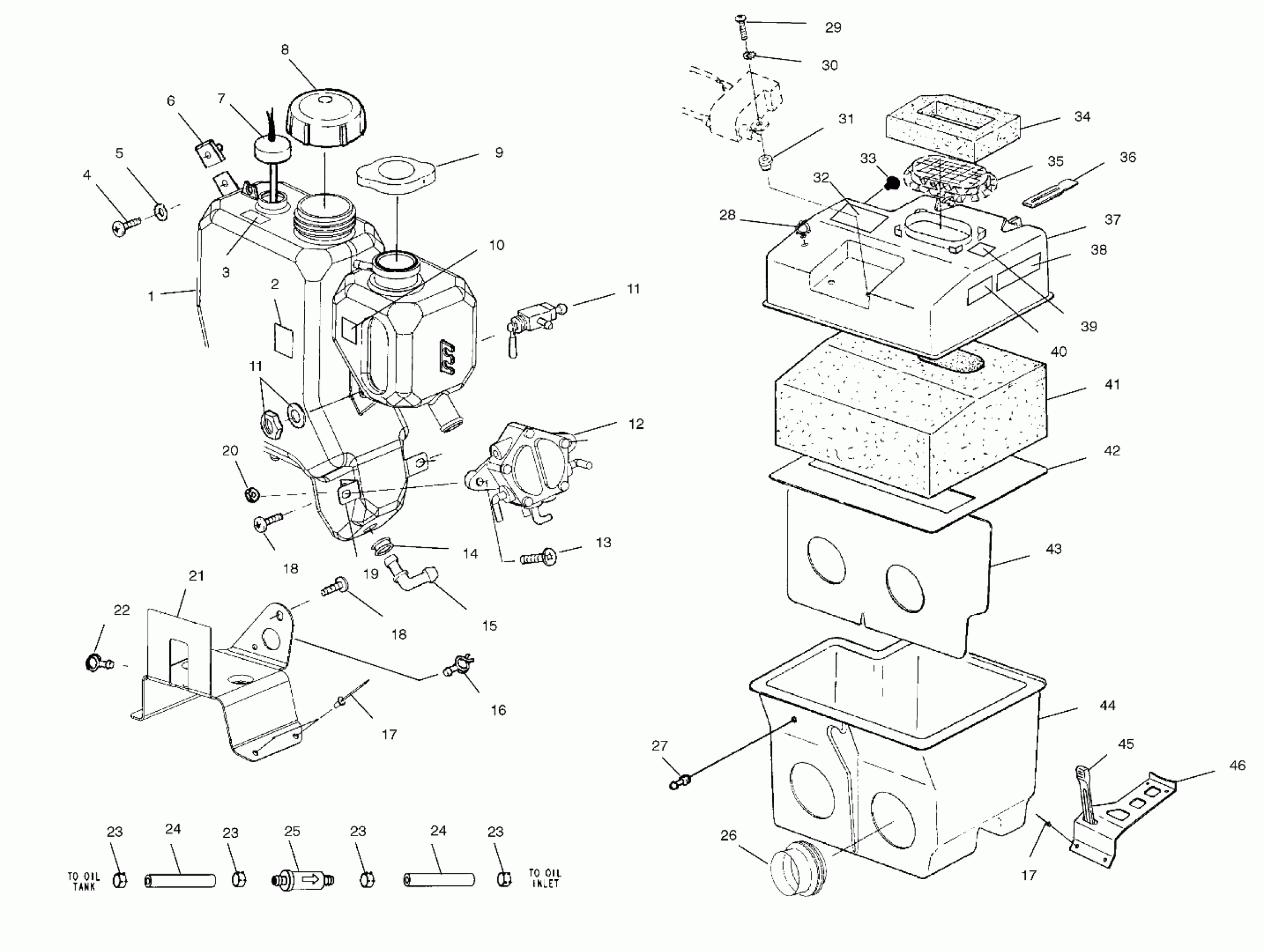

Polaris 500 XC - 099SB5AS OIL TANK/AIR BOX - 099SB5AS (4950155015c003) Diagram

#

Description
Price

1

TANK,OIL/COOLANT COMBO. Substituted by 2201437

5432749

Unavailable

2

DECAL,FUEL SHUT-OFF

7077442

Unavailable

3

DECAL,OIL,VES

7077444

Unavailable

4

BOLT(10)

7512276

$4.79

5

WASHER,WROUGHT(10)

7558302

$1.59

6

Nut

7670096

$1.59

7

SENSOR,OIL LEVEL

4110134

$72.84

8

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

9

CAP, PRESSURE,(13 LB)

2511270

$24.27

10

DECAL-SURGE TANK,"FULL COLD"

7078147

Unavailable

11

Valve, Fuel (See Footnote) (See Engine Mounting Pg. C2, Ref. 18)

-------

Unavailable

11

Valve, Fuel (See Footnote) (See Engine Mounting Pg. C2, Ref. 18)

-------

Unavailable

12

Pump, Fuel (See Footnote) (See Engine Mounting Pg. C2, Ref. 16)

-------

Unavailable

13

SCREW,(10)

7517455

$8.99

14

GROMMET-TANK FITTING(10)

7052028

$6.39

15

FTTNG,90 D.PRESS-ON

7052208

$6.39

16

CLIP,TWIST LOCK

7080745

$2.23

17

RIVET,INTERLOCK,B(50)

7661638

$1.49

17

RIVET,INTERLOCK,B(50)

7661638

$1.49

18

SCREW(10)

7517615

$3.19

18

SCREW(10)

7517615

$3.19

19

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

20

NUT-LOCK(10)

7542122

$1.49

21

BRKT,OIL/COOL.TANK,ALUM

5242688

Unavailable

22

CLIP, PLASTIC(10)

4020139

$4.79

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

26

BOOT,CARB,63MM.

5411424

Unavailable

27

FITTING,HOSE(10)

7052127

$3.19

28

CLIP,SILENCER,(10)

7670102

$2.39

29

SCREW(10)

7512222

$2.39

30

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

31

NUT-WELL(10)

7541923

$5.59

32

DECAL,COOL.SYSTEM [No Longer Available]

7075359

Unavailable

33

PLUG

5410344

$5.65

34

FOAM,AIRBOX,CHIMNEY,HYB.

5811606

Unavailable

35

MESH-WIRE,FORMED

5243219

Unavailable

36

RETAINER-TAB,(10)

5411075

Unavailable

37

TOP,SILEN.INTAKE

5432828

$66.99

38

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

39

DECAL,CAUTION,AIRBOX

7075351

Unavailable

40

DECAL, GREASING [No Longer Available]

7073426

$7.27

41

FOAM,AIRBOX,TOP,INTERNAL

5811564

Unavailable

42

PLATE,SILENCER INTAKE

5850134

Unavailable

43

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

44

SILENCER,INTAKE,DRILLED

5432882

$46.08

45

STRAP,TIE-DOWN

5411129

$8.89

46

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable
