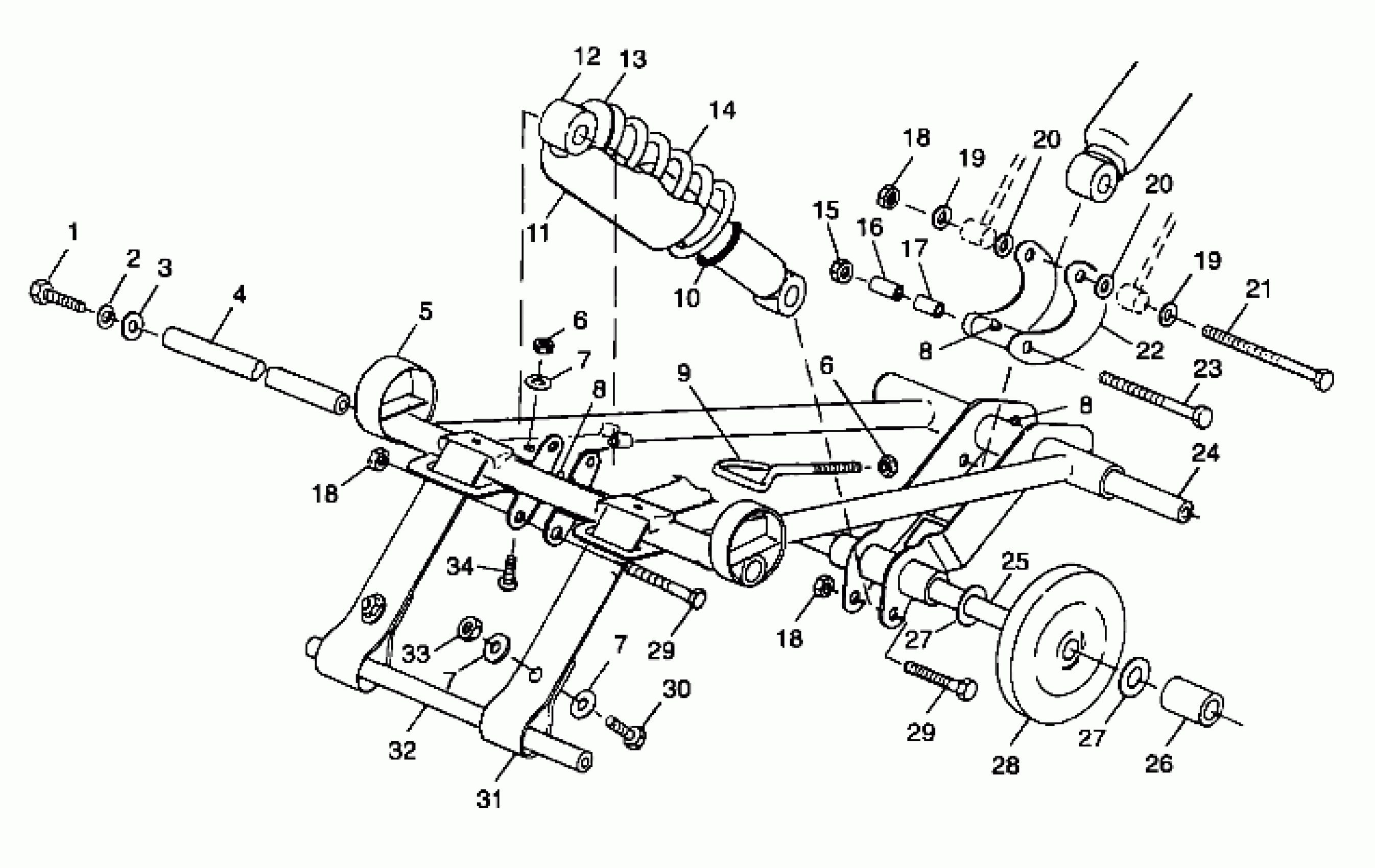

Polaris 500 XC - 099SB5AS FRONT TORQUE ARM - 099SB5AS (4950155015b011) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

Shaft

5020908

$69.99

5

ARM,FR.TORQUE,X-10,QA,BLK Substituted by 1541466-067

1541203-067

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

WASHER(10)

7555716

$1.59

7

WASHER(10)

7555716

$1.59

7

WASHER(10)

7555716

$1.59

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

8

ZERK,FITTING,THREADED(10)

7080433

$1.49

9

BOLT,EYE

7010050

Unavailable

10

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

11

SHIELD-SPRING

5430671

$24.27

12

SHOCK,F.TRACK,X-10,FX

7041639

Unavailable

13

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

14

SPRING,BLACK,COMP.

7041253-067

$95.22

15

NUT LOCK(10)

7542403

$3.99

16

Spacer

5333028

$1.59

17

BUSHING,PIVOT TUBE

5020561

$1.59

18

NUT LOCK(10)

7542411

$3.19

18

NUT LOCK(10)

7542411

$3.19

18

NUT LOCK(10)

7542411

$3.19

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

19

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

20

WASHER(10)

7555957

$4.79

20

WASHER(10)

7555957

$4.79

21

BOLT(10)

7515472

$2.39

22

ARM,SHOCK

1540942-067

Unavailable

23

BOLT(10)

7515438

$4.79

24

Shaft (See Footnote) (See Suspension Pg. B10, Ref. 17)

-------

Unavailable

25

Shaft (See Footnote) (See Suspension Pg. B10, Ref. 20)

-------

Unavailable

26

SPACER, OUTER

5332784

Unavailable

27

MACHINERY BUSHING(10)

7556301

$3.19

27

MACHINERY BUSHING(10)

7556301

$3.19

28

WHEEL, IDLER

1543018

$56.65

29

BOLT Substituted by 7515491

7515433

$1.59

29

BOLT Substituted by 7515491

7515433

$1.59

30

SCREW ,(10)

7517313

$4.79

31

STRAP,LIM,FRT,X10,QA

5411498

Unavailable

32

Shaft, Pivot Arm (See Footnote) (See Suspension Pg. B10, Ref. 21)

-------

Unavailable

33

NUT,NYLOC,(10)

7542344

$3.99

34

BOLT(10)

7512377

$4.79
