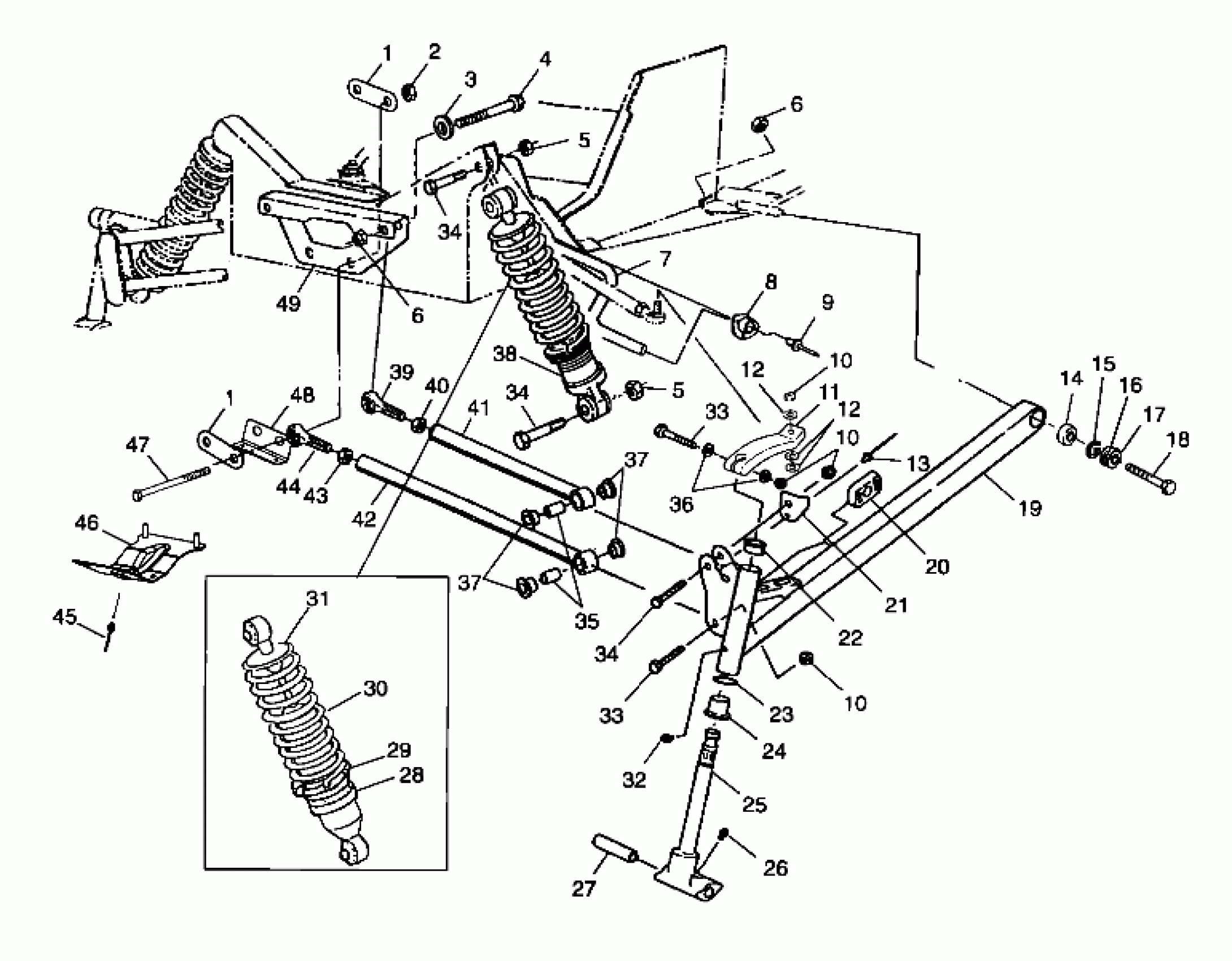

Polaris 500 XC - 099SB5AS FRONT SUSPENSION - 099SB5AS (4950155015b001) Diagram

#

Description
Price

1

STRAP,SPACER BOTTOM

5211345

$12.99

1

STRAP,SPACER BOTTOM

5211345

$12.99

2

NUT FLEX,(10)

7542703

Unavailable

3

WASHER THRUST(10)

7558702

$1.59

4

BOLT(10)

7512551

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

NUT, LOCK,(10)

7542503

$10.39

6

NUT, LOCK,(10)

7542503

$10.39

7

BAR,TORSION

5242795-067

$35.87

8

BUSHING,SWAY BAR

5432038

$19.99

9

RIVET,(50)

7621477

$1.19

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

10

NUT LOCK(10)

7542403

$3.99

11

ARM,LH,STRG,ALUM.

5131739

$161.89

11

ARM,RH,STRG,ALUM.

5131740

Unavailable

12

WASHER(10)

7555797

$3.99

12

WASHER(10)

7555797

$3.99

13

RIVET(50) Substituted by 7661130

7661643

Unavailable

14

BRG,SPHERICAL,7/16 Substituted by 7061042

7061016

Unavailable

15

RING,RETAINING(10)

7710437

$3.19

16

FOAM TRAILING ARM MOUNT

5811629

Unavailable

17

WASHER(10)

7555801

$3.99

18

BOLT(10)

7512579

Unavailable

19

ARM,TRLG,RH Substituted by 1820779 (Incl. 14,15)

1822463

Unavailable

19

ARM,TRLG,LH Substituted by 1820713-067 (Incl. 14,15)

1822462

Unavailable

20

SLIDE,SWAYBAR,5/8

5432561

$24.27

21

STOP,STRG,LH.

5242017-067

$13.89

21

STOP,STRG,RH.

5242018-067

$13.10

22

BUSHING-FLANGE

3573909

$2.39

23

WASHER SPECIAL(10)

7556509

$1.59

24

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

25

SPINDLE,SHAFT,HARD.

6230099-067

Unavailable

26

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

27

BUSHING,PIVOT,(10)

5010158

$19.99

28

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

29

RING,SPRING PRELOAD ADJ.

5431734

$52.60

30

SPRING,COMPRESSION

7041551-067

$74.99

31

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

32

ZERK,FITTING,THREADED(10)

7080433

$1.49

33

BOLT(10) Substituted by 7517583

7515491

Unavailable

33

BOLT(10) Substituted by 7517583

7515491

Unavailable

34

BOLT(10)

7515415

$1.49

34

BOLT(10)

7515415

$1.49

34

BOLT(10)

7515415

$1.49

35

BUSHING-RADIUS ROD,(10)

5010127

$7.99

36

WSHR-.813X.406X.105-Y

7555832

$2.39

37

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

37

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

38

SHOCK,GAS,IFS,SELECT

7041523

Unavailable

39

ROD,END,7/16 LINED Substituted by 7061049

7061010

Unavailable

40

NUT JAM(10)

7542520

$2.39

41

RADIUS ROD UPPER,BLK

1820588-067

$34.92

42

ROD,LOW.RADIUS,BLK.

1820584-067

Unavailable

43

NUT-JAM(10)

7542711

$2.39

44

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

45

RIVET(50)

7621452

$1.49

46

Brace, Pan, Lower (See Nosepan Pg. A7, Ref. 15)

-------

Unavailable

47

BOLT(10)

7512684

Unavailable

48

BRKT,RAD.ROD,BTM.

5242578

$44.99

49

BRACE,BULKHEAD,FRONT,BLK

1012575-067

$23.99
