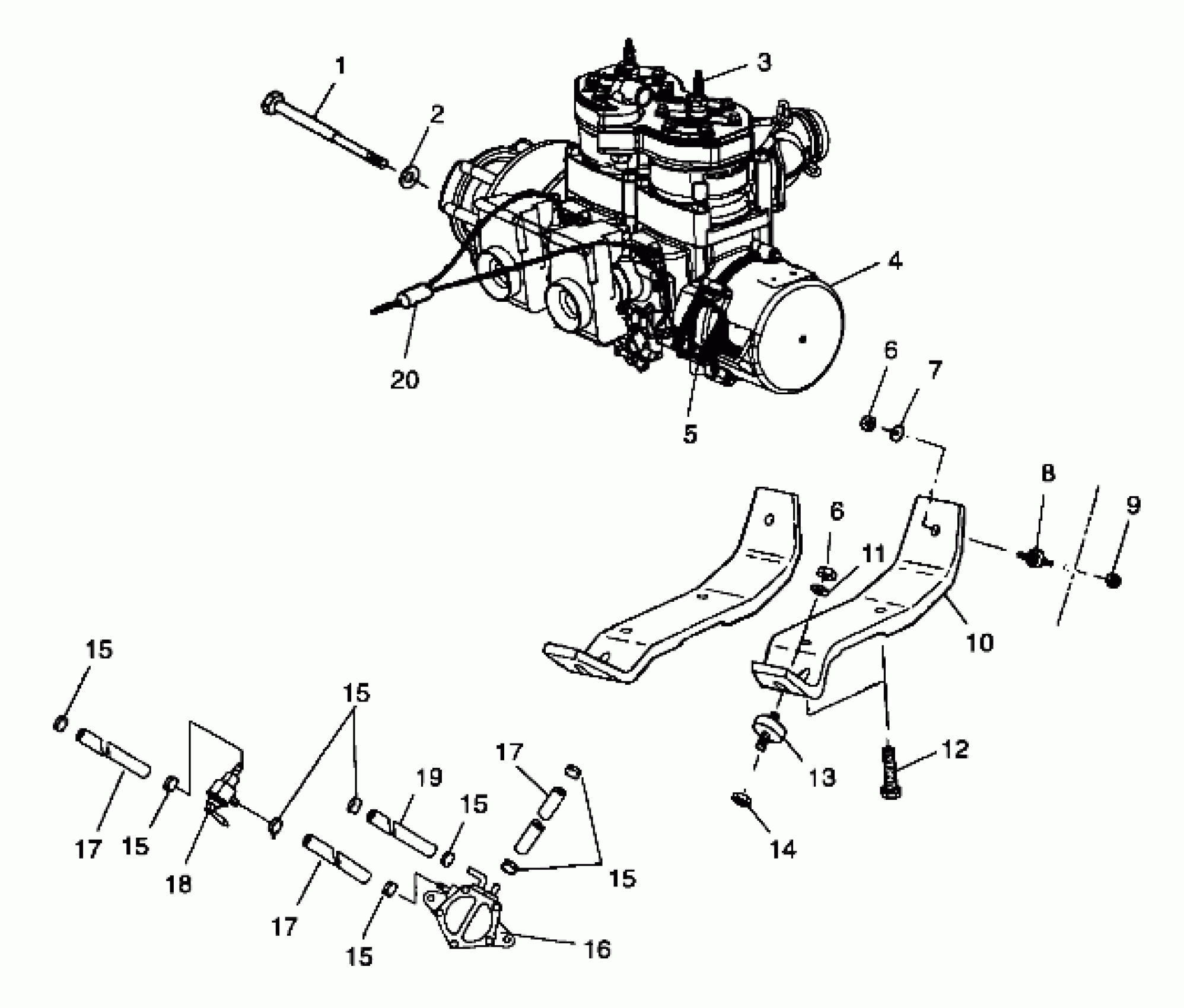

Polaris 500 XC - 099SB5AS ENGINE MOUNTING - 099SB5AS (4950155015c002) Diagram

#

Description
Price

1

SCREW,SPEC.CLUTCH

7517347

Unavailable

2

WASHER(10)

7556003

$6.39

3

SPARKPLUG(8)

3070165

$3.99

4

KIT,S.B.,SN 50-44-99 Substituted by 2201532 (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prio

2201380

Unavailable

5

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

6

NUT,FLEXLOCK,(10)

7547008

$6.39

6

NUT,FLEXLOCK,(10)

7547008

$6.39

7

WASHER(10)

7555806

$1.49

8

MOUNT,ENGINE Substituted by 3021099

3110072

$28.32

9

NUT,(10)

7547022

Unavailable

10

STRAP,LH,ENG.MOUNT

5131876

$66.99

10

STRAP,RH,ENG.MOUNT

5131877

$66.99

11

WASHER(10)

7555893

$1.49

12

Screw

7517399

$8.99

13

MOUNT,ENG.

3110061

$84.99

14

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

16

PUMP,FUEL,1 OUTLET

2520135

Unavailable

17

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

17

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

17

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

18

VALVE,FUEL SHUTOFF

7052211

Unavailable

19

FUEL LINE, 5 FT.

8450045-153

Unavailable

20

CABLE,THROTTLE,W/OIL,38MM.RACK

7080733

Unavailable
