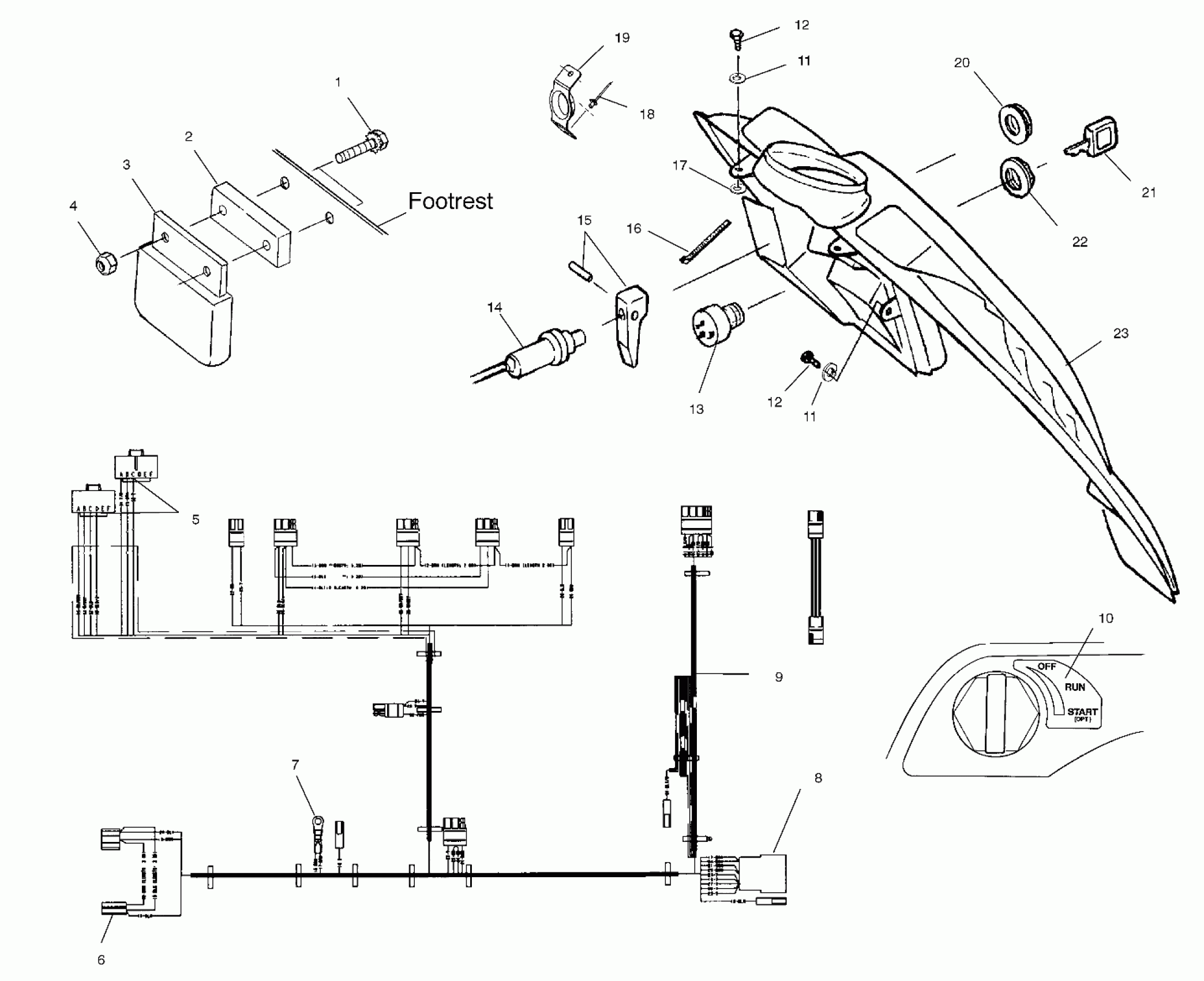

Polaris 500 XC - 099SB5AS CONSOLE - 099SB5AS (4950155015a013) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

SOCKET-PACKARD#12047767

4010192

Unavailable

6

HOUSING

4020063

$3.19

7

Terminal, Ring

4020092

Unavailable

8

Housing w/Receptacle

4020057

$3.51

9

HARNESS-MAIN WIRE,LO LEVEL Substituted by 2460733

2460703

$204.76

10

DECAL-CONSOLE,IGNITION,NON ES

7078036

Unavailable

11

WASHER(10)

7558203

$3.19

11

WASHER(10)

7558203

$3.19

12

SCREW(10)

7517441

$2.39

12

SCREW(10)

7517441

$2.39

13

KIT,IGN.SWITCH

2200358

$76.89

14

CABLE,CHOKE,SINGLE-PULL (Incl. 15,20)

7080734

Unavailable

15

KIT,CHOKE LEVER

2201439

$24.27

16

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

17

WASHER,NYLON

7555932

$2.39

18

RIVET, POP(50)

7621330

$1.49

19

GUIDE-RECOIL

5243049

$9.70

20

NUT,CHOKE

5432944

$8.79

21

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

22

NUT,IGNITION

7547035

$8.79

23

CONSOLE,HYBRID,BLK

5432906

Unavailable
