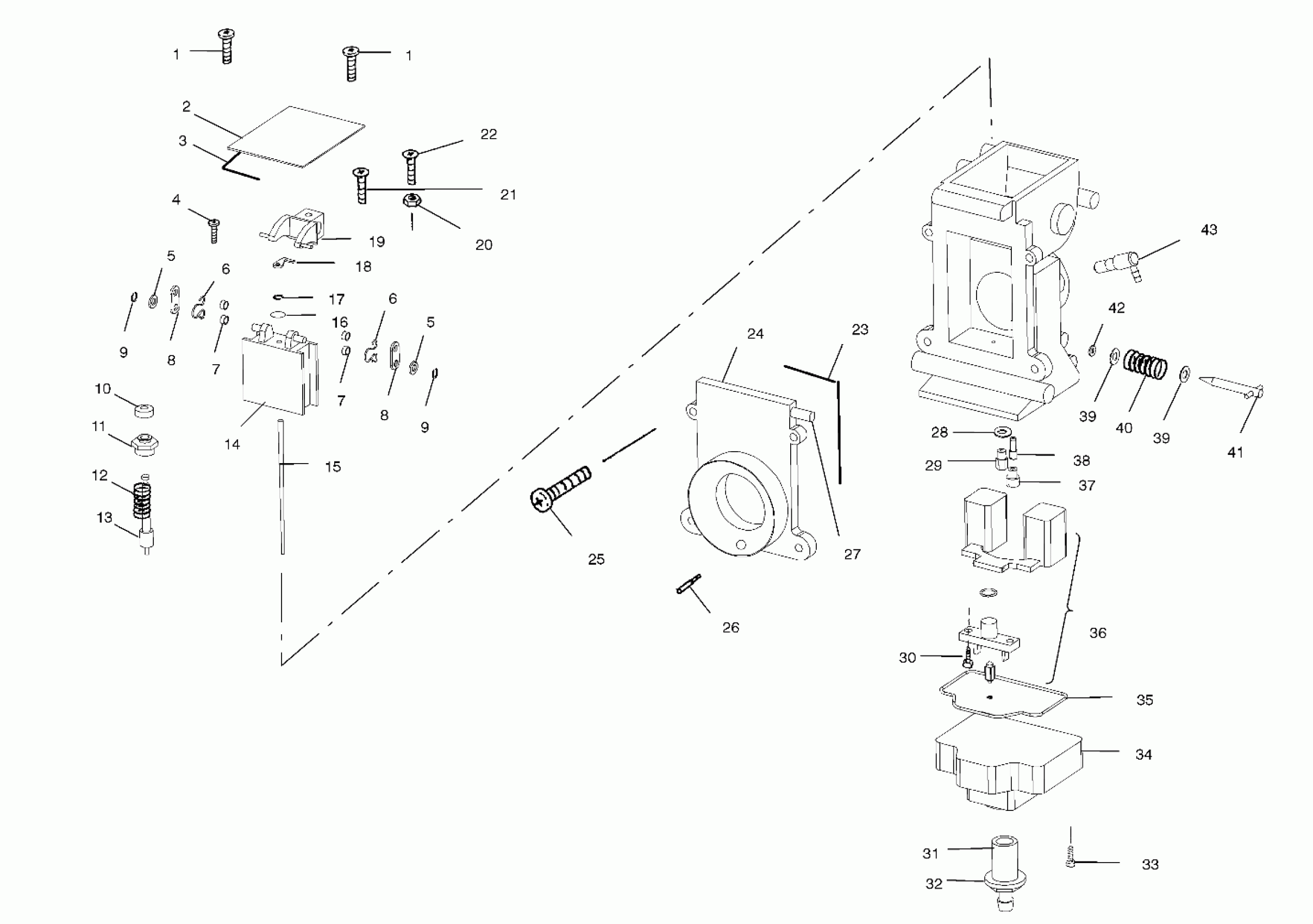

Polaris 500 XC - 099SB5AS CARBURETOR - 099SB5AS (4950155015c009) Diagram

#

Description
Price

-

CARB.ASM,38MM,(99 500)

1253215

Unavailable

1

SCREW

3130851

$2.39

1

SCREW

3130851

$2.39

2

CAP,TOP

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

WASHER,PACKING

3130846

$4.79

5

WASHER,PACKING

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

CAP,STARTER,(RUBBER)

3130831

$7.27

11

HOLDER,STARTER GUIDE

3130830

$32.37

12

SPRING,STARTER

3130829

$12.94

13

PLUNGER ASM./258

3130828

$32.37

14

VALVE,PISTON 1.5

3130940

$104.99

15

JET,NEEDLE,(J8-9FH04-57) (J8-FH04-57)

3130794

$36.41

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

LEVER ASM.

3130855

$64.75

19

LEVER ASM.

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw

3130854

$3.19

22

Screw

3130850

$4.79

23

O-RING,AIR FUNNEL

3130870

$24.27

24

FUNNEL ASM.

3130869

$102.99

25

SCREW,AIR FUNNEL

3130825

$3.19

26

JET,PILOT-AIR,1.0 (PAJ) (0.8)

3130778

Unavailable

27

Pin

3130808

Unavailable

28

Washer

3130949

$3.99

29

MAIN JET-H.H.#370(10) (370)

3130290

Unavailable

30

SCREW,VALVE SEAT

3130860

$8.79

31

NIPPLE,DRAIN SCREW

3130862

Unavailable

32

O-RING,DRAIN SCREW

3130863

$2.41

33

SCREW,FLOAT BOWL

3130824

$3.19

34

FLOAT,BODY

3130858

$119.99

35

O-RING,FLOAT BOWL

3130861

$12.13

36

FLOAT ASM.

3130859

$94.99

37

JET,STARTER,#VM11/22-155

3130771

Unavailable

38

JET,PILOT,#45(10) (155)

3130068

$8.89

39

Washer

3130837

$3.19

39

Washer

3130837

$3.19

40

SPRING

3130836

$7.27

41

ADJUSTER ASM.

3130838

Unavailable

42

Packing

3130835

$2.41

43

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
