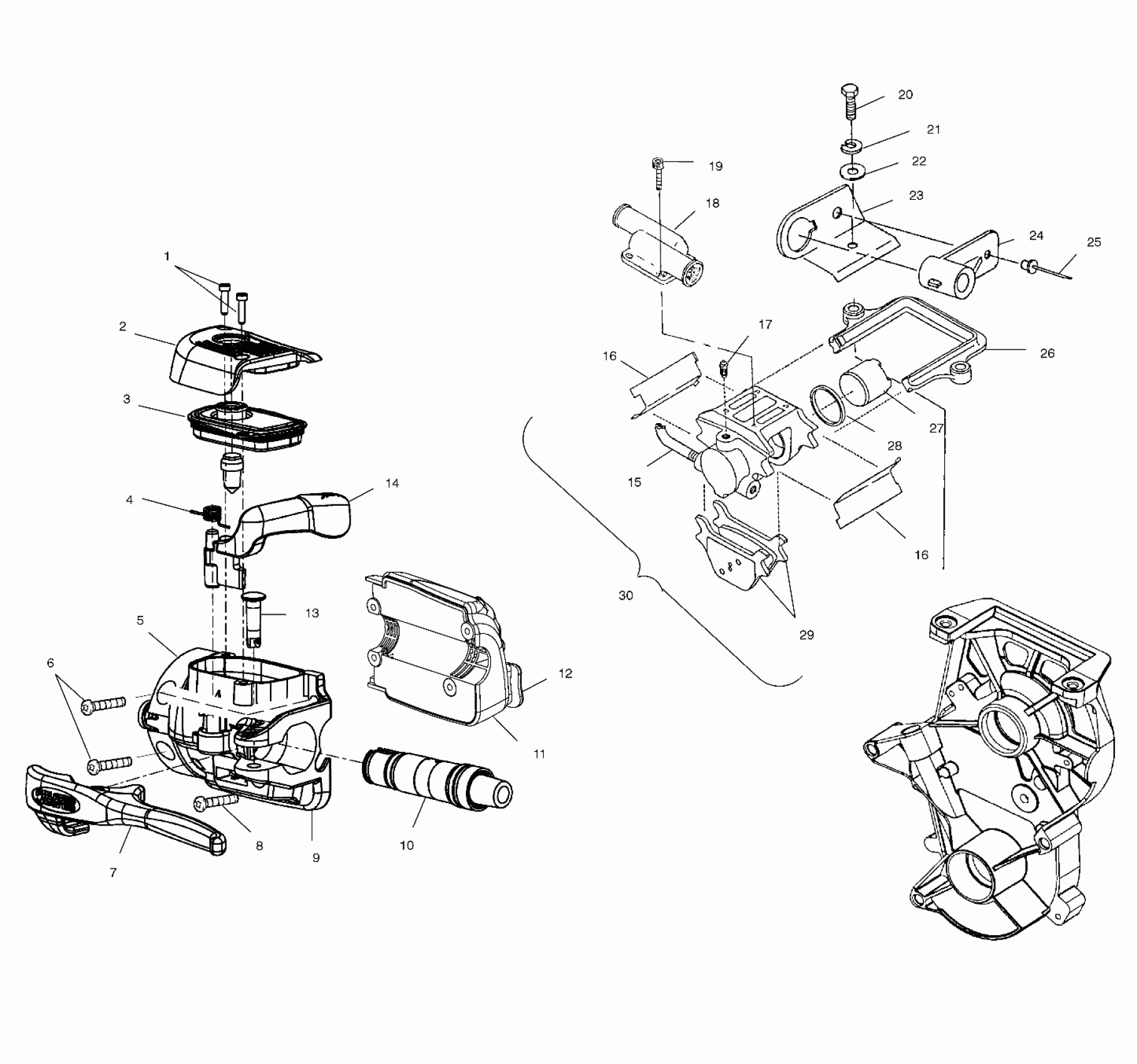

Polaris 500 XC - 099SB5AS BRAKE - 099SB5AS (4950155015a014) Diagram

#

Description
Price

1

KIT,COVER SCREW,(HAYES)

2201254

$19.99

2

KIT,COVER ASM,(HAYES) (Incl. 1,3)

2201255

$89.03

3

GASKET

-------

Unavailable

4

KIT,PARKLEVER SPRING

2201250

$24.27

5

MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,13)

2050087

$304.98

6

SCREW(10)

7517441

$2.39

7

KIT,LEVER&PIVOT PIN,(HAYES) Substituted by 2201569

2201253

Unavailable

8

SCREW(10)

7517566

$3.99

9

KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948

2201249

$304.98

9

SWITCH,BRAKE LIGHT

4010157

Unavailable

10

KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944

2201248

Unavailable

11

CONTROL ASM,LH,(BASIC)

2010167

$93.08

12

BUTTON SWITCH HI/LO

5433291

Unavailable

13

KIT,PIVOT PIN,(HAYES) Substituted by 2201946

2201252

Unavailable

14

KIT,PARKLEVER & SPRING (Incl. 4)

2201251

$44.51

15

LINE-BRAKE,HYBRID

1910313

Unavailable

16

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

16

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

17

KIT, INLET

1930735

$9.11

18

COOLER,WATER,BRAKE

1930728

$62.39

18

GASKET,BRK.COOLER

2201024

$7.99

19

PK/4,SCREW SET (Pkg. of 4)

1930729

$29.49

20

BOLT(10)

7515521

$3.99

21

WASHER(10)

7552603

$1.49

22

WASHER(10)

7555806

$1.49

23

BRKT,ROPE GUIDE,BLK.

5240171-067

Unavailable

24

GUIDE, RECOIL

5431385

$10.51

25

RIVET(50)

7621433

$1.49

26

KIT,CALIPER BRKT.

1930733

Unavailable

27

KIT, PISTON SEAL (Incl. 28)

1930734

Unavailable

28

SEAL

2200466

$32.37

29

KIT,BRAKEPAD,HD,TYPE 69 Substituted by 2201430 (Incl. 16)

2201020

Unavailable

30

CALIPER,BRAKE,HD,LIQ Substituted by 1910344 (Incl. 27,28,29)

1910312

Unavailable
