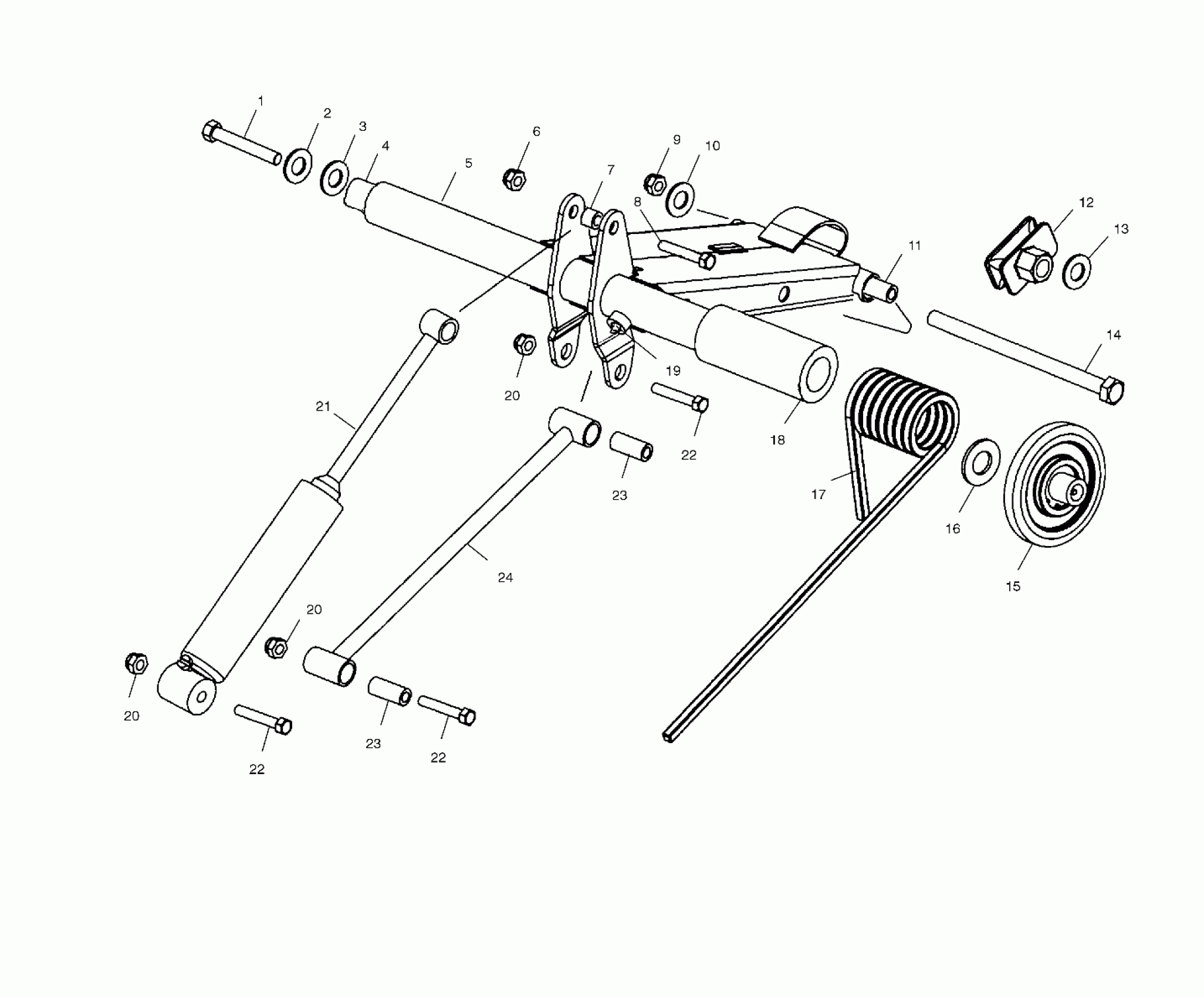

Polaris 500 RMK - S00SR5AS REAR TORQUE ARM - S00SR5AS (4953915391b012) Diagram

#

Description
Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

Shaft

5131450

Unavailable

5

WELD-REAR,TORQUE-ARM,XL,BLK

1541432-067

$226.99

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

BUSHING,R.SHOCK

5333030

Unavailable

8

BOLT(10)

7512329

$3.99

9

NUT

7547064

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

Tube

5333483

$11.59

12

ROLLER-SPRING,ADJ,SQ,RMK,SKS

5433211

Unavailable

13

CLIP-PUSH ON

7080394

$2.39

14

SCR,5/16-24X5.00

7517757

$3.99

15

WHEEL,CARRIER,W/COLLAR

1541285

Unavailable

16

MACHINERY BUSHING(10)

7556301

$3.19

17

SPRING-TORSION,.375/77�,LH,BLK (.375/77 Degree)

7041631-067

$140.38

17

SPRING-TORSION,.375/77�,RH,BLK (.375/77 Degree)

7041632-067

$140.38

17

SPRING-TORSION,.347SQ/77�LHBLK (.347/77 Degree)

7041627-067

$135.54

17

SPRING-TORSION,.347/77�,RH,BLK (.347/77 Degree)

7041628-067

$135.54

18

TUBE,SPRING

5521475

Unavailable

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

20

NUT-LOCK(10)

7542439

$1.49

20

NUT-LOCK(10)

7542439

$1.49

20

NUT-LOCK(10)

7542439

$1.49

21

SHOCK,ADJ,XL,RR TRACK

7041757

Unavailable

22

BOLT(10)

7515415

$1.49

22

BOLT(10)

7515415

$1.49

22

BOLT(10)

7515415

$1.49

23

Bushing

5010252

$1.59

23

Bushing

5010252

$1.59

24

ROD,SHOCK,XL 136,BLK

1541306-067

Unavailable
