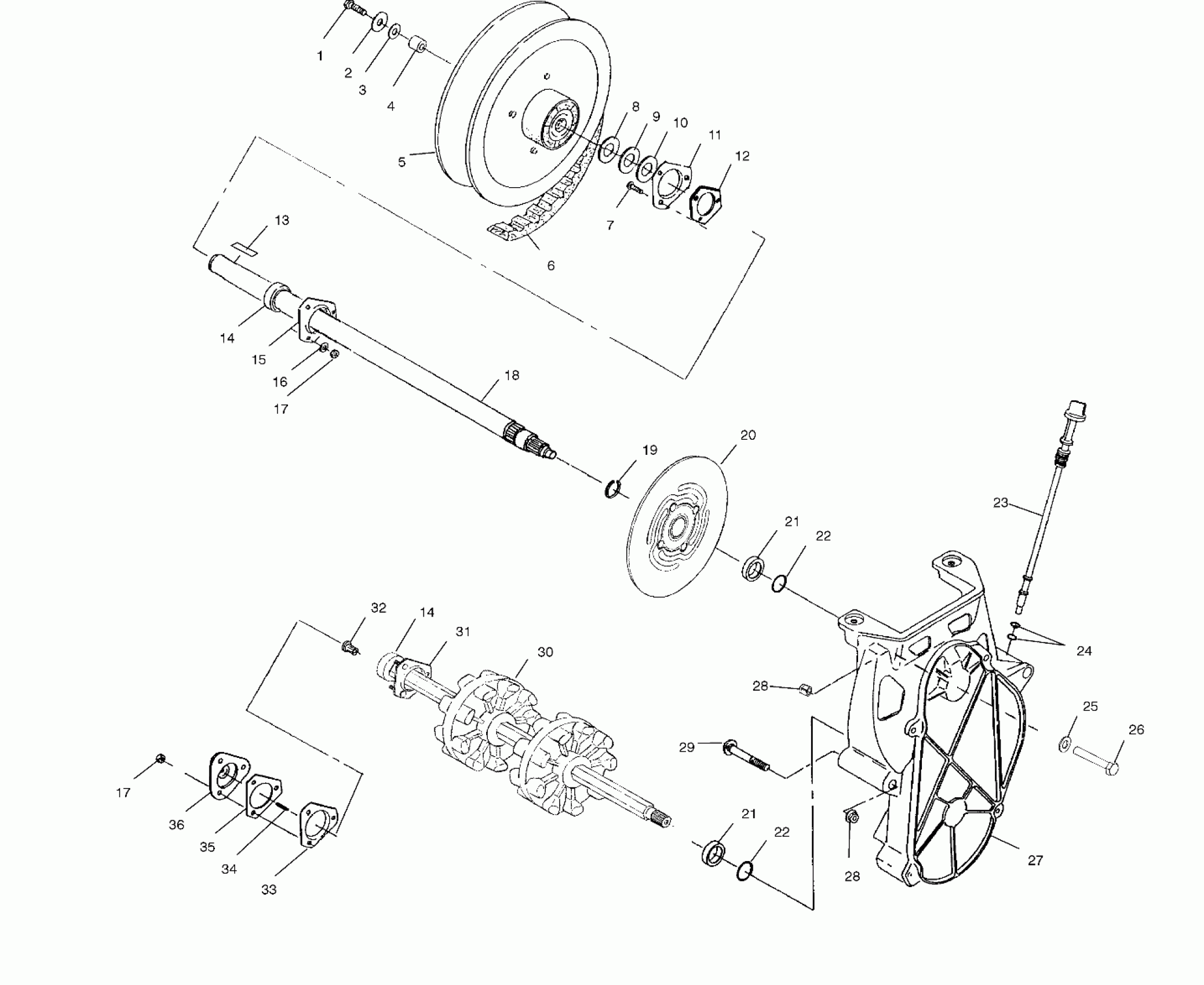

Polaris 500 RMK - S00SR5AS DRIVE TRAIN - S00SR5AS (4953915391b006) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

Spacer

5020913

Unavailable

5

Asm., Driven Clutch, R32 (See Footnote) (See Driven Clutch Pg. B14, Ref. 7)

-------

Unavailable

6

BELT,DRIVE(5)

3211074

$109.99

7

BOLT(10)

7512377

$4.79

8

BUSHING(10)

7555864

$2.39

9

WASHER SPECIAL(10)

7556509

Unavailable

10

Spacer

5020837

$24.99

11

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

12

GASKET,JACKSHAFT,BLK.

5811095

$2.41

13

KEY(10)

7721116

$12.94

14

BEARING

3514525

$31.99

14

BEARING

3514525

$31.99

15

FLANGETTE

5222751

$16.44

16

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

17

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

NUT-5/16-18 NYLOK-Y

7542324

$1.49

18

JACKSHAFT ASM,15 SPL (Incl. 14,19)

1332207

Unavailable

19

RING, RETAINING(10)

7710422

$3.99

20

BRAKE DISC,SNOW,6385 CR,ASM.

1910403

Unavailable

21

SLEEVE, SEAL

5020588

$23.99

21

SLEEVE, SEAL

5020588

$23.99

22

O RING,(10)

5410613

$1.99

22

O RING,(10)

5410613

$1.99

23

DIPSTICK Substituted by 1332143

5431419

Unavailable

24

O-RING

5410675

$1.60

25

BOLT(10)

7515485

$3.03

26

WASHER WROUGHT(10)

7558403

$4.79

27

Cover, Chaincase (See Footnote) (See Chaincase Pg. B7, Ref. 12)

-------

Unavailable

28

NUT(10)

7542423

$3.99

28

NUT(10)

7542423

$3.99

29

BOLT(10)

7515428

$4.79

30

DRIVESHAFT ASM,2 DR WIDE,XHS (Incl. 31,32)

1590284

Unavailable

31

ASM.-FLANGETTE,W/SCREWS

1012945

$114.99

32

BUSHING METAL SPEEDO

3280019

$11.99

33

FLANGETTE Substituted by 5243529

5241178

$13.75

34

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

35

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

36

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
