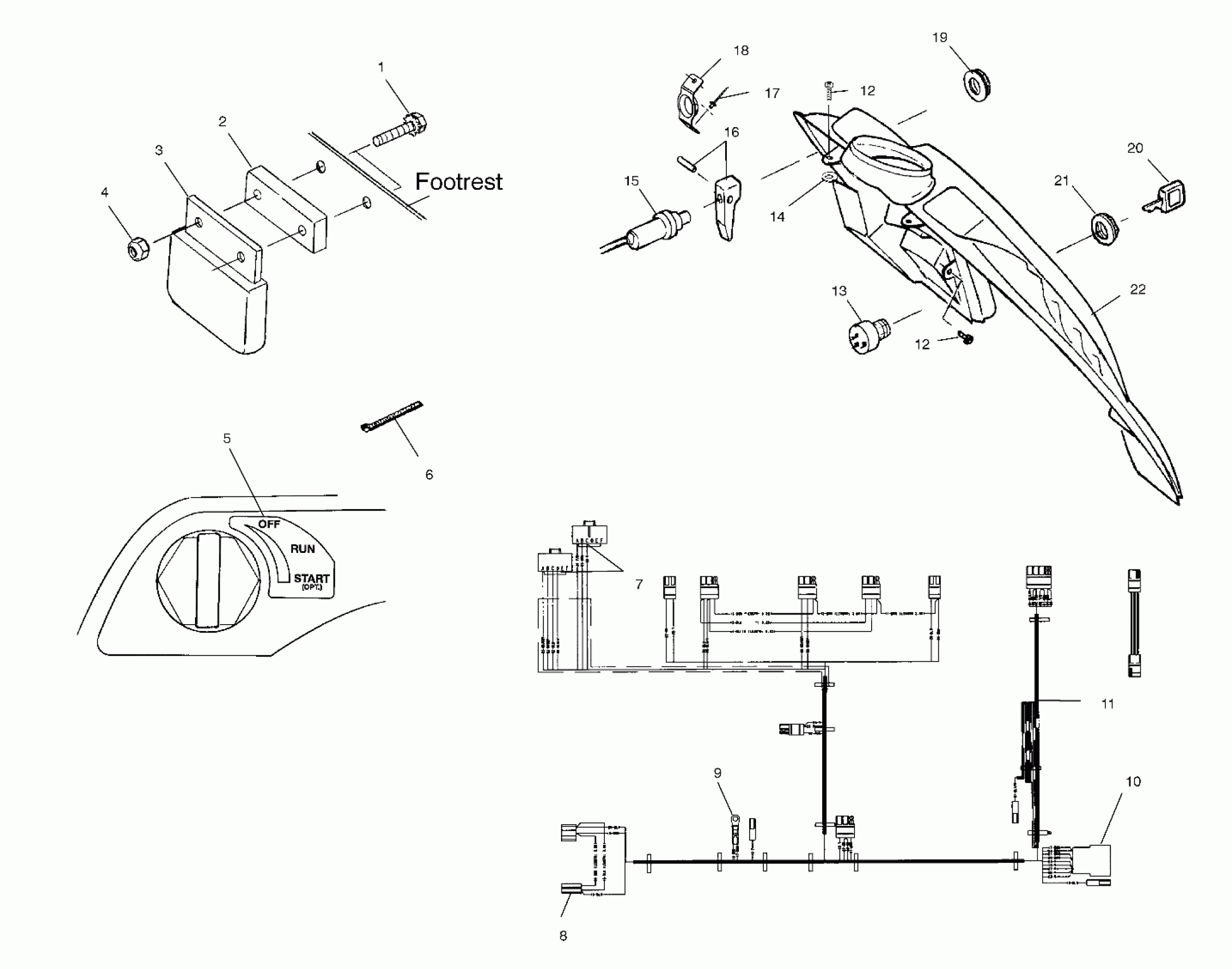

Polaris 500 RMK - S00SR5AS CONSOLE - S00SR5AS (4953915391a013) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

DECAL,CONSOLE,IGNITION

7077367

Unavailable

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

SOCKET-PACKARD#12047767

4010192

Unavailable

8

HOUSING

4020063

$3.19

9

Terminal, Ring

4020092

Unavailable

10

Housing w/Receptacle

4020057

$3.51

11

HARNESS-MAIN,GEN 2 COMMON

2460733

$206.39

12

SCREW(10)

7515199

$1.49

12

SCREW(10)

7515199

$1.49

13

KIT,IGN.SWITCH

2200358

$76.89

14

WASHER,NYLON

7555932

$2.39

15

CABLE,CHOKE,SINGLE-PULL (Incl. 16,19)

7080734

Unavailable

16

KIT-CHOKE CONTROL

2200188

$24.27

17

RIVET, POP(50)

7621330

$1.49

18

GUIDE-RECOIL

5243049

$9.70

19

Nut

7080229

$19.99

20

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

21

NUT,IGNITION

7547035

$8.79

22

CONSOLE,HYBRID,BLK

5432906

Unavailable
