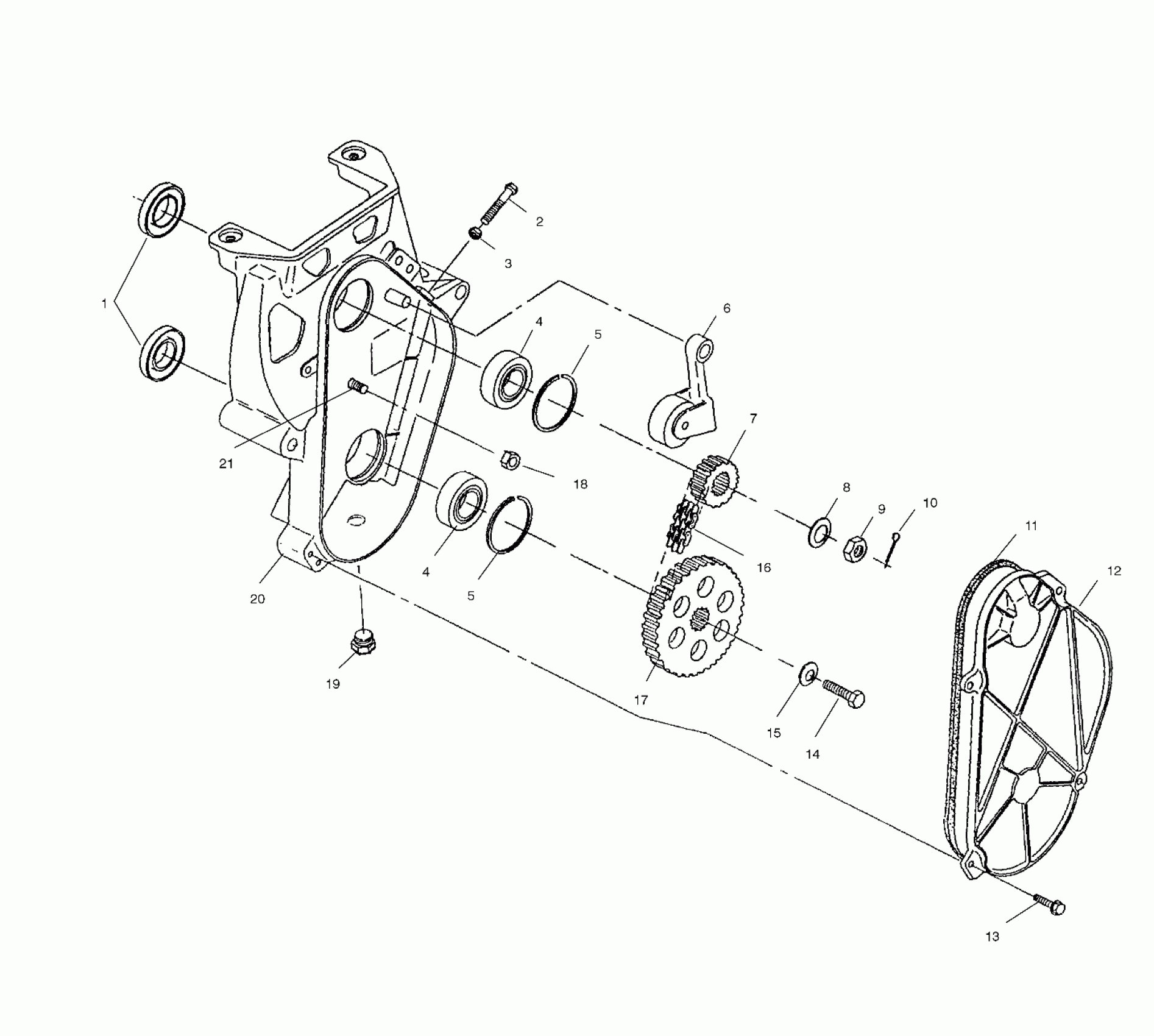

Polaris 500 RMK - S00SR5AS CHAINCASE - S00SR5AS (4953915391b007) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

2

SCREW(10)

7515551

$6.39

3

NUT(10)

7542404

$1.59

4

DESC NOT_AVAILABLE

3514334

Unavailable

4

DESC NOT_AVAILABLE

3514334

Unavailable

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

5

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

PIN,CHAIN TIGHTENER

7662210

Unavailable

6

BEARING

3553002

$11.99

6

WHEEL,C/C IDLER

5630123

Unavailable

6

WASHER THRUST(10)

7558702

$1.59

6

TIGHTENER,CHAINCASE

1332213

$159.99

7

SPKT,18T,3/4W,15 SPL,HV,PM

3221094

$44.99

8

WASHER, SLOTTED(10)

7571620

$7.19

9

NUT

7542811

Unavailable

10

COTTER PIN(10)

7661401

$1.49

11

GASKET,CHAINCASE,LONG

5411207

$20.22

12

COVER,CHAINCASE

5630691

$115.99

13

SCREW(10)

7512242

$2.39

14

SCREW(10)

7515350

$3.97

15

WASHER(10)

7571618

$6.39

16

CHAIN,HYVO 68 P,3/4W

3221112

$124.99

17

SPKT,41T,15T SPL,HYVO,PM

3222101

$40.46

18

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

19

PLUG(10) (Incl. O-Ring)

7052115

$5.65

20

CHAINCASE,VENTED

5131455

Unavailable

21

BOLT(10)

7515477

$34.99
