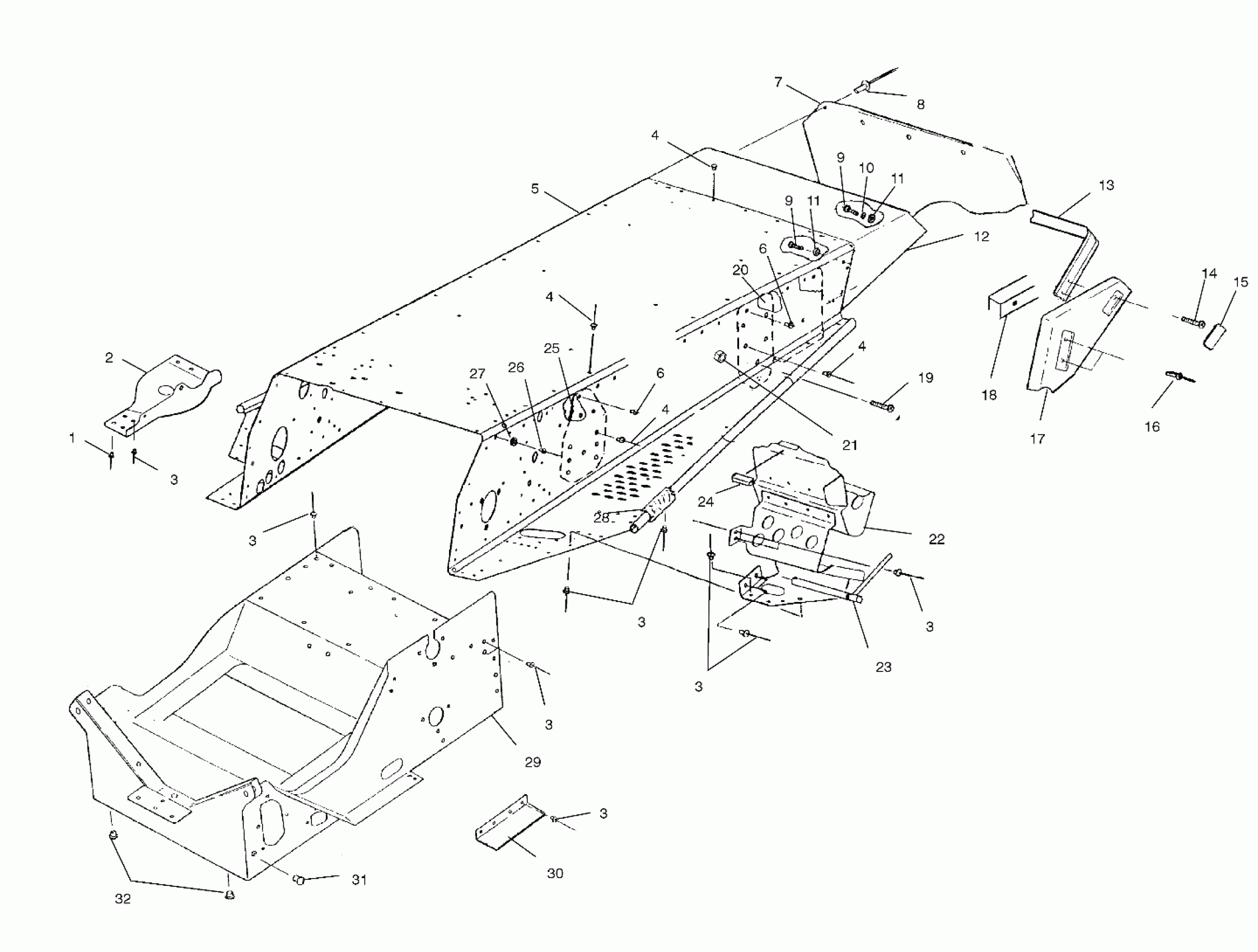

Polaris 500 RMK 136 - S02SR5AS TUNNEL - S02SR5AS (4969336933A004) Diagram

#

Description
Price

1

RIVET-3/16-.214-.420

7661130

$1.49

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

RIVET ,(50)

7661837

$1.49

4

RIVET ,(50)

7661837

$1.49

4

RIVET ,(50)

7661837

$1.49

4

RIVET ,(50)

7661837

$1.49

5

ASM-TUNNEL,XTRA 10,136,SPIERCE (Incl. 12,20,25)

1013575

Unavailable

6

RIVET ,(50)

7661836

$0.63

6

RIVET ,(50)

7661836

$0.63

7

FLAP-SNOW,MOLDED,BLK W/SILVER

5410394-1106

$121.02

8

POP RIVET(50)

7621418

$1.49

9

BOLT(10)

7512240

$3.99

9

BOLT(10)

7512240

$3.99

10

LOCK WASHER(10)

7552801

$1.59

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

12

ASM-PANEL,TUNNEL BACK SPIERCE

1013576

$78.39

13

ASM-REAR BUMPER,NATURAL

2670169-309

Unavailable

14

SCREW(10)

7512084

$1.49

15

REFLECTOR ASM,RED

2670133

$5.75

16

RIVET,(50)

7621515

$3.99

17

COVER,LH,BUMPER,W/HANDLE

5432562

$28.15

17

COVER,RH,BUMPER,W/HANDLE

5432563

$28.15

18

SUPPORT,HAND-HOLD

5131546

$18.23

19

SCREW,(10)

7517388

$3.79

20

WELD-SUSP BRKT,RR SPRCE,LH,BLK

1013577-067

$14.87

20

WELD-SUSP BRKT,RR SPRCE,RH,BLK

1013578-067

$15.99

21

NUT-LOCK(10)

7542439

$1.49

22

FOOTREST ASM,RH

1012684

$154.99

22

FOOTREST ASM,LH Substituted by 1013531

1012683

Unavailable

23

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

23

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

24

EXTRUSION,CLUTCHGUARD

5521238

$6.46

25

PAD,FRONT,SUSPENSION

5244287-067

Unavailable

26

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

27

SNAP-MALE(10)

7080227

Unavailable

28

GRIP,TUNNEL ROLL

5243112

Unavailable

29

WELD-BULKHEAD,CRC,COMMON,GEN 2

1013358

Unavailable

30

GUARD,ADAPTER GUIDE

5222857

$12.94

31

PLUG, HOLE(10)

7080416

$5.65

32

PLUG-HOLE

7080398

$4.84
