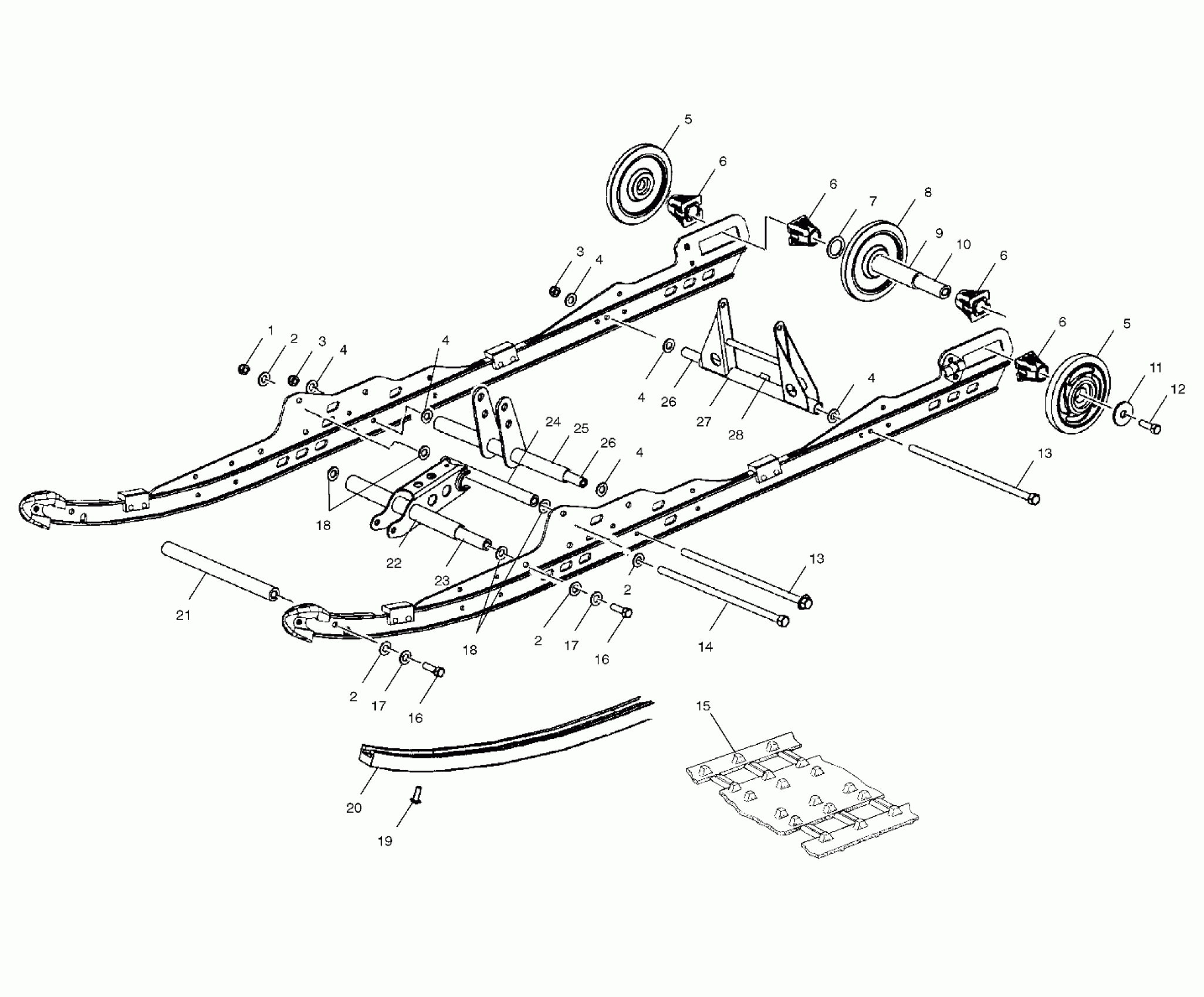

Polaris 500 RMK 136 - S02SR5AS SUSPENSION - S02SR5AS (4969336933B007) Diagram

#

Description
Price

1

NUT LOCK(10)

7542411

$3.19

2

WASHER(10)

7555806

$1.49

2

WASHER(10)

7555806

$1.49

2

WASHER(10)

7555806

$1.49

2

WASHER(10)

7555806

$1.49

3

NUT

7547064

Unavailable

3

NUT

7547064

Unavailable

4

WASHER(10)

7555958

$4.99

4

WASHER(10)

7555958

$4.99

4

WASHER(10)

7555958

$4.99

4

WASHER(10)

7555958

$4.99

4

WASHER(10)

7555958

$4.99

4

WASHER(10)

7555958

$4.99

5

WHEEL,IDLER,SCRLLD,INDYRED

1594083-293

Unavailable

5

WHEEL,IDLER,SCRLLD,INDYRED

1594083-293

Unavailable

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

6

SPACER-IDLER

5432535

$11.99

7

BUSHING(10)

7555918

$1.59

8

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT,IDLER

5020744

$59.99

11

WSHR,.406X1.25X.125(10)

7556130

$6.39

12

BOLT,3/8-16X1.25(10)

7517731

$1.49

13

Screw

7517207

Unavailable

13

Screw

7517207

Unavailable

14

Screw

7517353

Unavailable

15

TRACK,136X1.5 DEEP LUG,CAMO

5411552

Unavailable

16

SCREW,(10)

7517247

$3.19

16

SCREW,(10)

7517247

$3.19

17

WASHER(10)

7552603

$1.49

17

WASHER(10)

7552603

$1.49

18

WASHER(10)

7555797

$3.99

18

WASHER(10)

7555797

$3.99

19

SCREW(10)

7515199

$1.49

20

Slider, XL, Service, Basic

5521571

$36.41

21

Shaft

5020868

Unavailable

22

BRKT,SHOCK,FTS,XL,1.28BLK

1541520-067

Unavailable

23

SHAFT-390X.750X8.604

5132727

$28.79

24

Shaft

5020866

$28.79

25

SHOCK PIVOT ARM,XL,BLK

1541484-067

Unavailable

26

Tube

5333477

Unavailable

26

Tube

5333477

Unavailable

27

WELD-REAR PIVOT ARM,XL,REINF,B

1541564-067

$209.99

28

FITTING-LUBRICATION 1/4-28

7080424

$4.79
