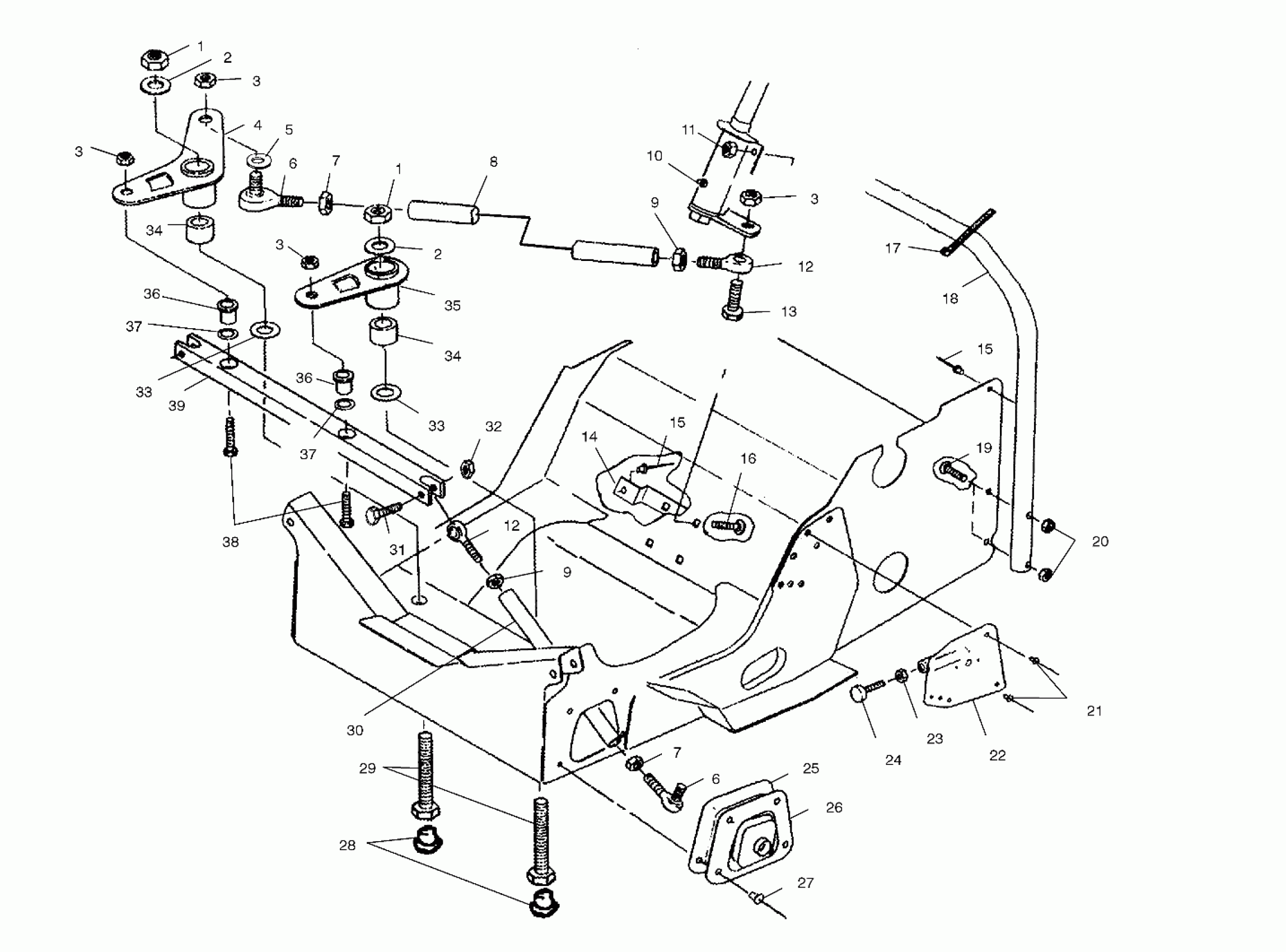

Polaris 500 RMK 136 - S02SR5AS STEERING - S02SR5AS (4969336933B006) Diagram

#

Description
Price

1

NUT,FLEX LOCK(10)

7547029

Unavailable

1

NUT,FLEX LOCK(10)

7547029

Unavailable

2

WASHER(10)

7555721

$1.49

2

WASHER(10)

7555721

$1.49

3

NUT LOCK(10)

7542403

$3.99

3

NUT LOCK(10)

7542403

$3.99

3

NUT LOCK(10)

7542403

$3.99

3

NUT LOCK(10)

7542403

$3.99

4

PITMAN ARM ASM. (Incl. 34)

1822417

$28.57

5

WASHER(10)

7555957

$4.79

6

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

6

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

7

NUT HEX(10)

7542401

$2.39

7

NUT HEX(10)

7542401

$2.39

8

ROD,DRAG LINK

5333408

$20.63

9

NUT

7542424

$1.49

9

NUT

7542424

$1.49

10

FITTING-LUBRICATION 1/4-28

7080424

$4.79

11

NUT FLEX-LOC(10)

7542303

$6.39

12

ROD END,LH

7060166

$48.56

12

ROD END,LH

7060166

$48.56

13

BOLT(10)

7512404

$3.99

14

BRKT,BOLT RETAINER

5241997

$1.44

15

RIVET-3/16-.090-.290

7661637

$1.49

15

RIVET-3/16-.090-.290

7661637

$1.49

16

BOLT,(10)

7517428

$2.39

17

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

18

STEERING HOOP,BLK

1013153-067

$39.67

19

BOLT-CARRIAGE(10)

7512275

$3.99

20

NUT, LOCK(10)

7542103

$5.59

21

RIVET-3/16-.214-.420

7661130

$1.49

22

TORQUE STOP SN44

1012854

Unavailable

23

NUT(10)

7542404

$1.59

24

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

25

BOOT,TIEROD,MOD

5411249

Unavailable

26

PLATE,BOOT,MOD

5211796-067

$31.35

27

POP RIVET(50)

7621323

$1.49

28

PLUG,HOLE(10)

7080689

$5.75

29

SCREW(10)

7517328

$13.19

30

ROD-TIE,SILVER

5020885-244

Unavailable

31

SCREW(10)

7515434

Unavailable

32

NUT LOCK(10)

7542411

$3.19

33

WASHER(10)

7556053

$2.63

33

WASHER(10)

7556053

$2.63

34

Spacer

5010468

Unavailable

34

Spacer

5010468

Unavailable

35

IDLER ARM (Incl. 34)

1820582

Unavailable

36

TUBE,SPACER

5010384

Unavailable

36

TUBE,SPACER

5010384

Unavailable

37

O-RING

5411220

$6.46

37

O-RING

5411220

$6.46

38

Screw

7517574

Unavailable

39

RACK ASM,STEERING

1822413

$77.78
