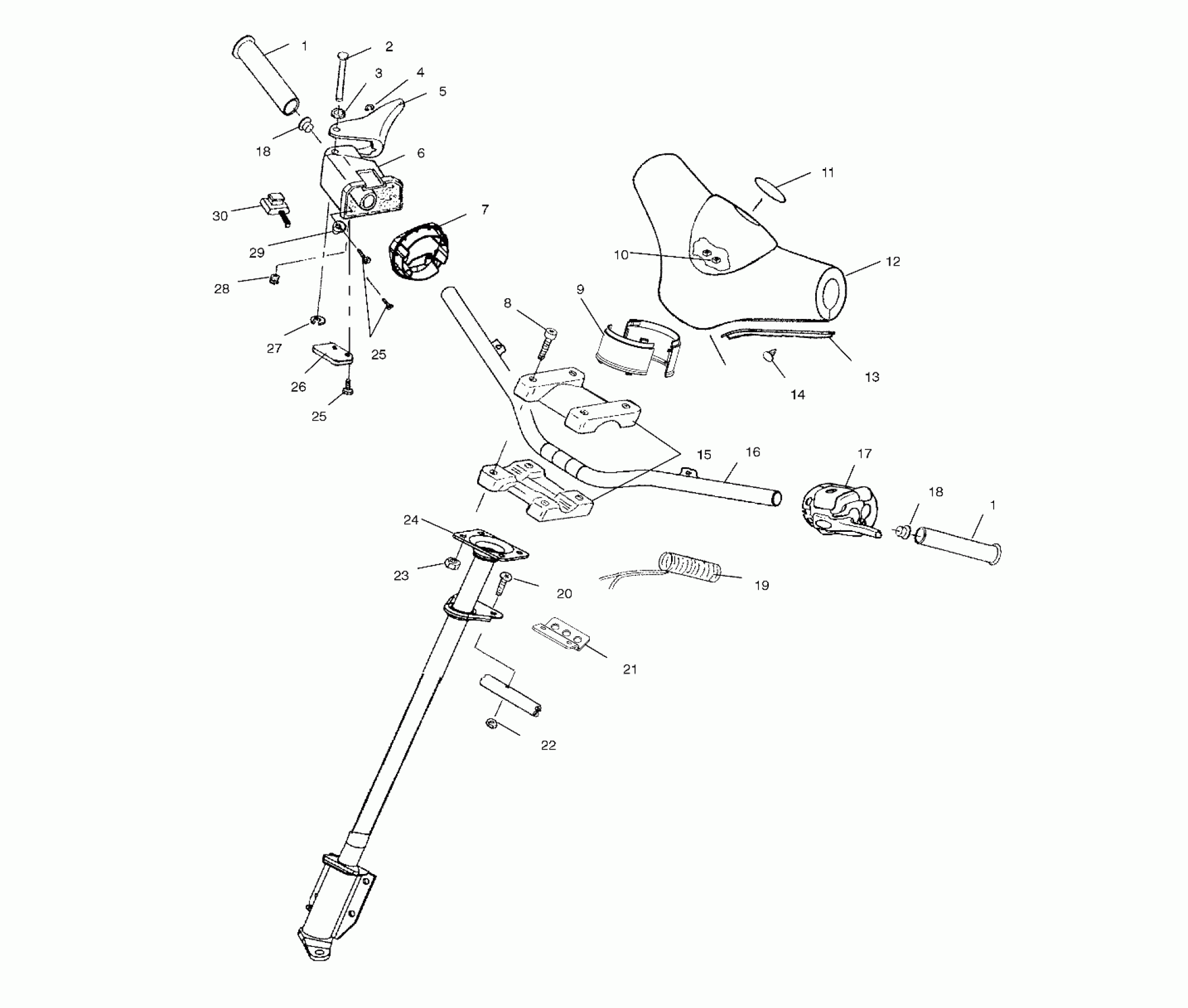

Polaris 500 RMK 136 - S02SR5AS STEERING - HANDLEBAR - S02SR5AS (4969336933B001) Diagram

#

Description
Price

1

GRIP,H'BAR,SNOW

5432634

$24.27

1

GRIP,H'BAR,SNOW

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

WASHER(10)

7555730

$3.99

4

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

5

THROTLE,LEVER,35.5MM

5432970

$29.03

5

LEVER ASM,HTR,HI/LO 35.5MM

2010171

$84.98

6

BLOCK,THROTTLE/BRAKE

5431592

$49.99

7

ADAPTER-BLOCK,THROTTLE

5433345

$15.99

8

SCREW,(10)

7517238

$4.79

9

BOOT,HANDLEBAR

5433331

Unavailable

10

NUT-PUSH ON,.170-.180-Y(10)

7670106

$2.39

11

EMBLEM-"STAR" PLM.BEZEL,HNDLBR

5434179

Unavailable

12

COVER-HANDLEBAR,BLK

5433159-070

$77.99

13

SLIDE-HANDLEBAR COVER,BLK

5433160-070

$28.32

14

DART-CLIP NYLON,BLK

4010287

$3.99

15

BLOCK,HANDLEBAR

5630187-067

$44.99

16

HANDLEBAR,RMK,BLK

1820666-067

$109.99

17

Asm., Control, LH (See Brake Page B3, Ref. 13)

-------

Unavailable

18

PLUG, OVERFLOW,(10)

5431096

$2.02

18

PLUG, OVERFLOW,(10)

5431096

$2.02

19

HEATER,GRIP,LO/MED/HI

2460677

$60.70

20

SCREW

7517377

$4.79

21

BRKT,RETENTION,BLK.

5242553-067

$12.30

22

NUT, LOCK(10)

7542103

$5.59

23

NUT-LOCK(10)

7542122

$1.49

24

STEERING POST,FMD,RMK,BLK

1820663-067

$116.10

25

SCREW-SEMS(10)

7511848

$3.99

25

SCREW-SEMS(10)

7511848

$3.99

26

HOLDER-WIRE

5432261

$24.27

27

RING-RETAINING EXTERNAL

7710401

$3.99

28

SCREW(10)

7512465

$3.99

29

RIVET BURR(50)

7555727

$1.49

30

SWITCH,AUX.SHUT-OFF

4110106

$94.99
