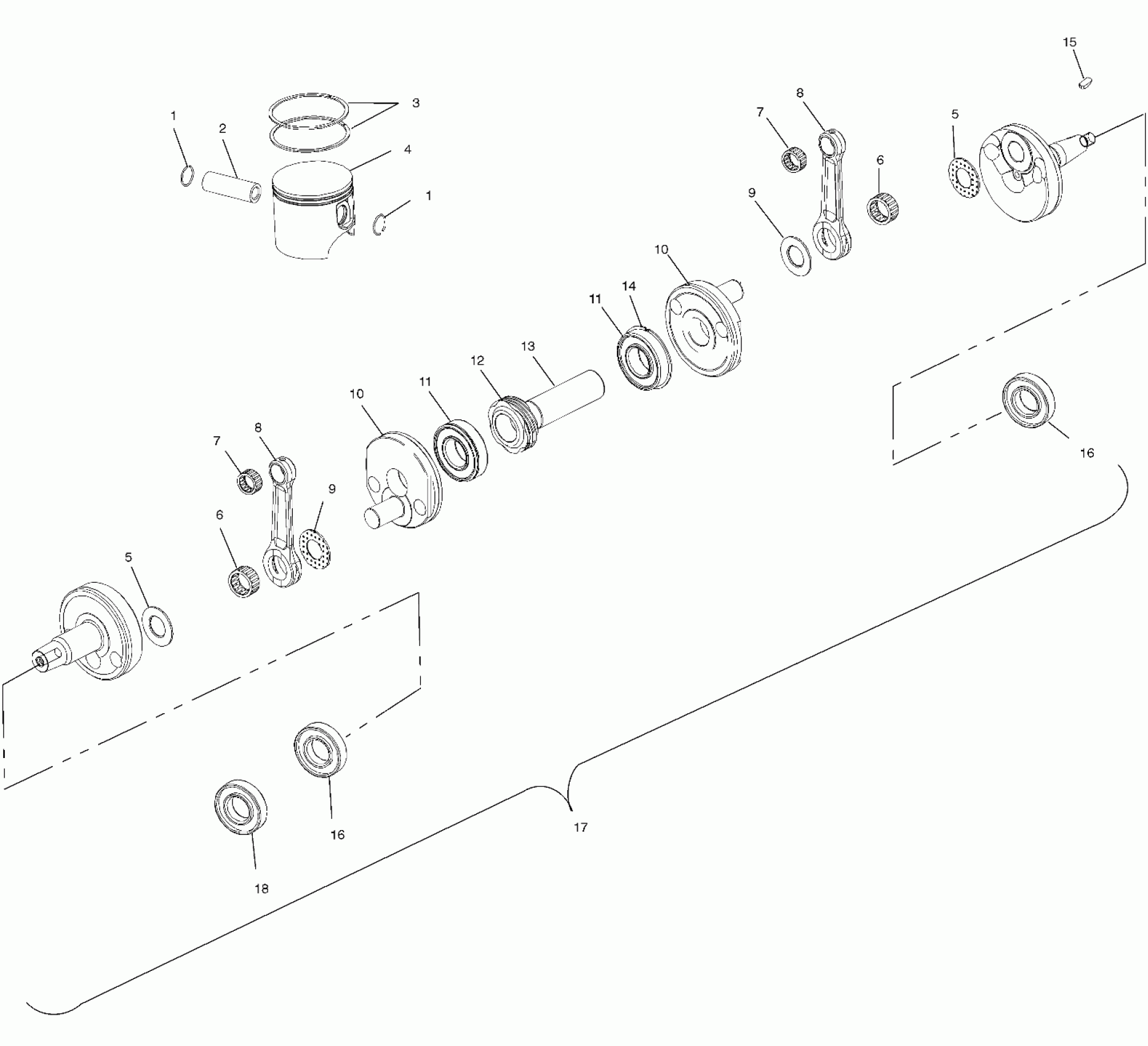

Polaris 500 RMK 136 - S02SR5AS PISTON and CRANKSHAFT - S02SR5AS (4969336933C006) Diagram

#

Description
Price

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

1

CIRCLIP,PISTON,20MM.,(10)

3022950

Unavailable

2

Pin, Piston

3022961

Unavailable

3

KIT,PISTONRINGS,70.5MM. (Standard)

2201196

Unavailable

3

KIT,PISTONRINGS (.25MM O/S) (.25mm/.010 O/S)

2201198

Unavailable

3

KIT,PISTONRINGS(.50MM O/S) (.50mm/.020 O/S)

2201193

$63.79

4

PISTON,ASM,70.5MM (Incl. 1-3)

2201383

Unavailable

4

PISTON,ASM 70.5MM (+.25OS) (.25mm/.010 O/S)

2201395

$154.99

4

PISTON,ASM 70.5MM (+.500S) (.50mm/.020 O/S)

2201396

$190.46

5

WASHER

-------

Unavailable

5

WASHER

-------

Unavailable

6

BEARING

-------

Unavailable

6

BEARING

-------

Unavailable

7

Bearing

3552108

Unavailable

7

Bearing

3552108

Unavailable

8

KIT,CONNECT.ROD (Incl. 5,6,8,9,10)

2201132

$464.99

8

KIT,CONNECT.ROD (Incl. 5,6,8,9,10)

2201132

$464.99

9

WASHER

-------

Unavailable

9

WASHER

-------

Unavailable

10

CRANKWEB, CENTER

-------

Unavailable

10

CRANKWEB, CENTER

-------

Unavailable

11

BEARING,CRANK,SEALED

3513508

$54.99

11

BEARING,CRANK,SEALED

3513508

$54.99

12

GEAR,PUMP DRIVE

5131373

Unavailable

13

SHAFT,CRANK,PUMPDRIVE

5131353

$56.79

14

RING,SNAP(10)

7710447

$5.43

15

KEY,WOODRUFF(10)

7721117

$24.99

16

BEARING,BALL

3585503

$31.99

16

BEARING,BALL

3585503

$31.99

17

KIT,CRANKSHAFT,2CYL,SNO,MAPE (Incl. 5,6,8-14,16,18)

2201234

$1,794.99

18

BEARING,BALL,EXTRACE

3514310

$39.99
