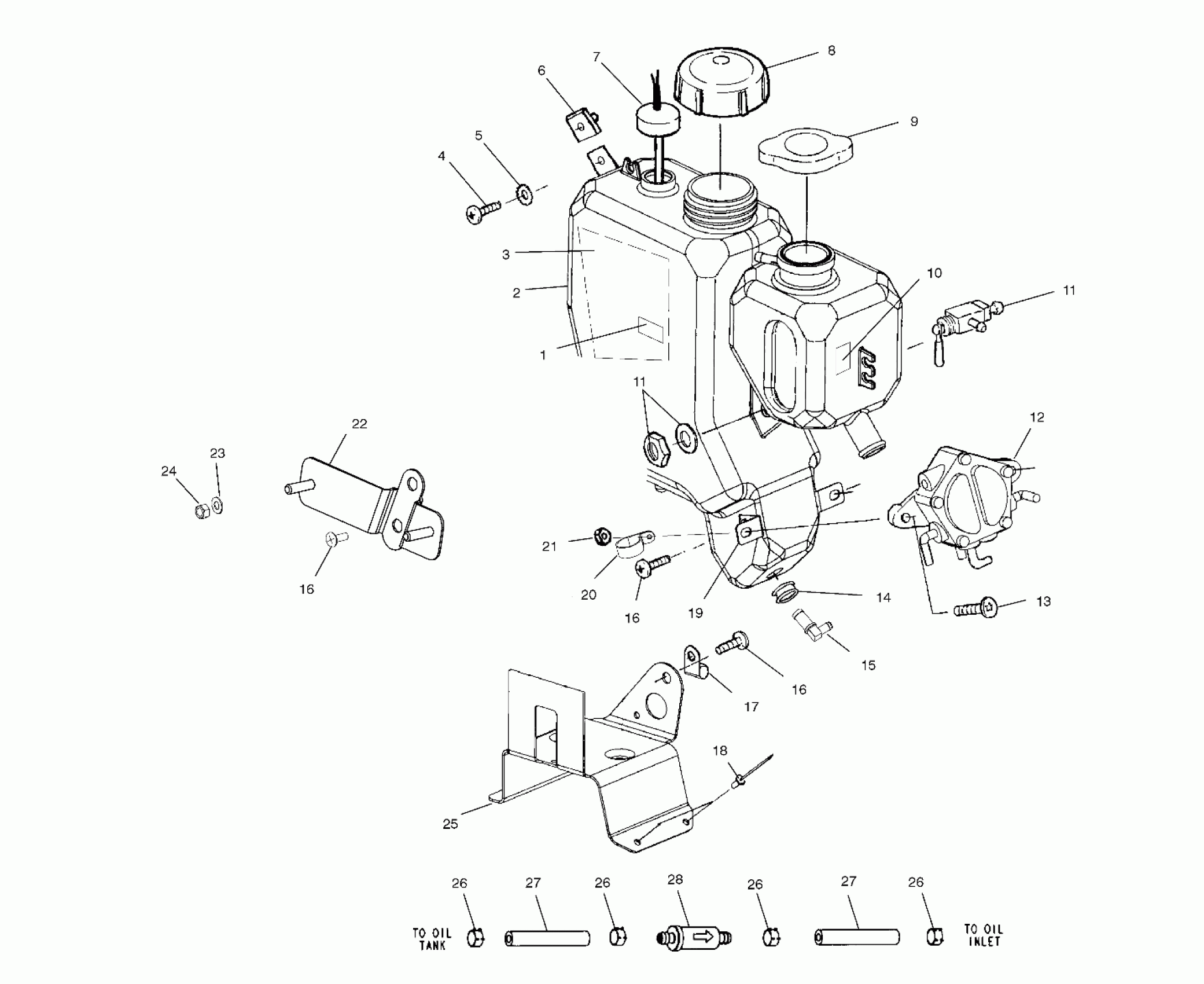

Polaris 500 RMK 136 - S02SR5AS OIL TANK - S02SR5AS (4969336933C001) Diagram

#

Description
Price

1

DECAL,FUEL SHUT-OFF

7077442

Unavailable

2

ASM-OIL TANK W/FOIL,LIQ

1253353

Unavailable

3

FOIL,OIL TANK

5811934

Unavailable

4

BOLT(10)

7512276

$4.79

5

WASHER,WROUGHT(10)

7558302

$1.59

6

Nut

7670096

$1.59

7

SENSOR,OIL LEVEL

4110134

$72.84

8

CAP-OIL,VENTED/CUSTOM COLOR

1240094

$36.41

9

CAP, PRESSURE,(13 LB)

2511270

$24.27

10

DECAL-SURGE TANK,"FULL COLD"

7078369

Unavailable

11

Valve, Fuel Shut-Off (See Engine Mounting Page B14, Ref. 17)

-------

Unavailable

11

Valve, Fuel Shut-Off (See Engine Mounting Page B14, Ref. 17)

-------

Unavailable

12

Pump, Fuel (See Engine Mounting Page B14, Ref. 14)

-------

Unavailable

13

SCREW,(10)

7517455

$8.99

14

GROMMET-TANK FITTING(10)

7052028

$6.39

15

FTTNG,90 D.PRESS-ON

7052208

$6.39

16

SCREW(10)

7517615

$3.19

16

SCREW(10)

7517615

$3.19

16

SCREW(10)

7517615

$3.19

17

CLIP,J

7080884

$3.99

18

RIVET-3/16-.090-.290

7661637

$1.49

19

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

20

CLAMP,HOSE(10)

7080683

$2.39

21

NUT-LOCK(10)

7542122

$1.49

22

BRKT,CDI MOUNT,84MM-Z

1012791

$16.47

23

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

24

NUT(10)

7541925

$1.49

25

BRKT-OIL TANK W/BRIDGE

5244339

$16.47

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

27

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

28

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
