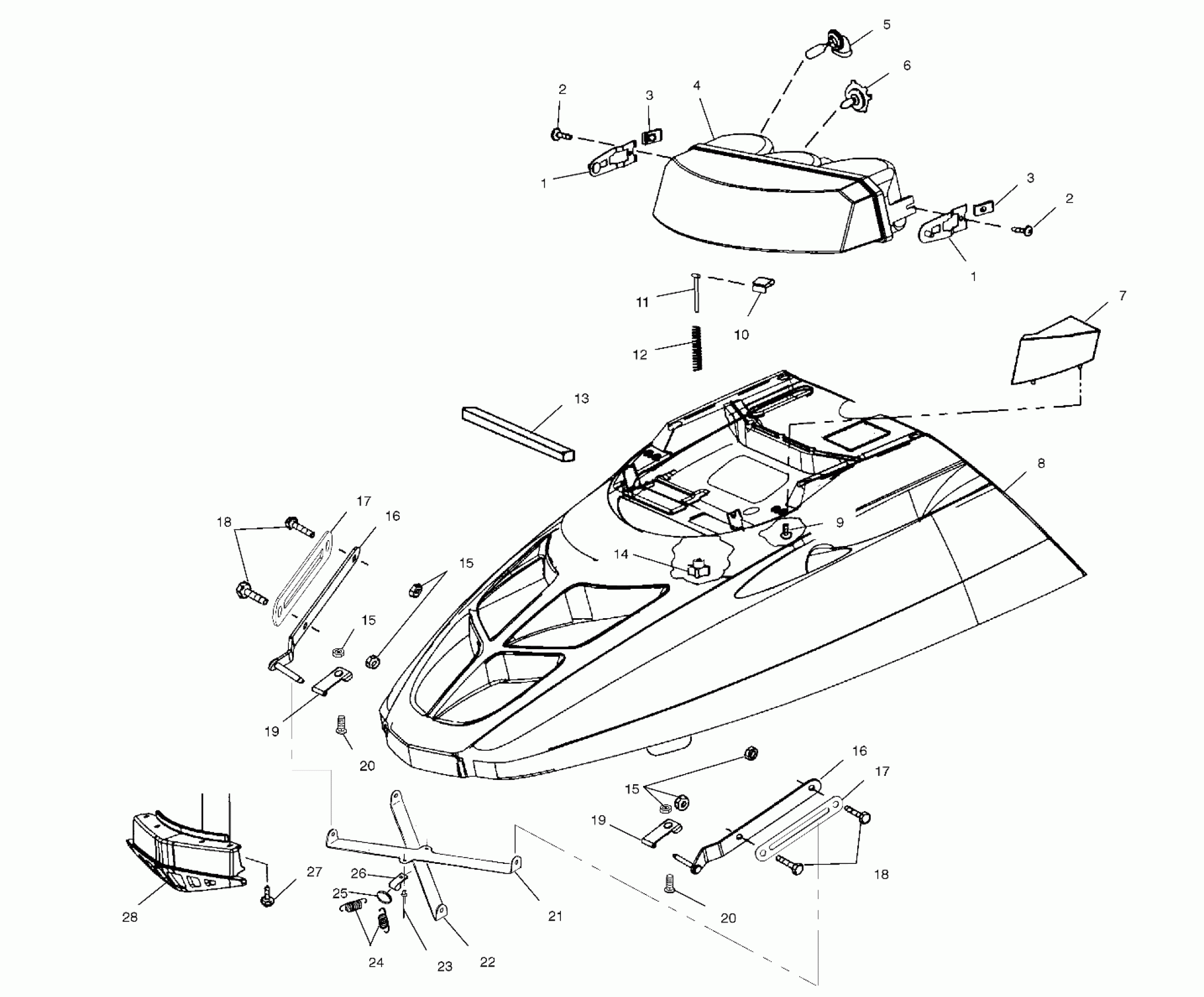

Polaris 500 RMK 136 - S02SR5AS HOOD - S02SR5AS (4969336933A007) Diagram

#

Description
Price

1

MOUNT,WELD,H/L

1011944-067

$24.27

1

MOUNT,WELD,H/L

1011944-067

$24.27

2

BOLT(10)

7515107

Unavailable

2

BOLT(10)

7515107

Unavailable

3

NUT, SPEED(10)

7670057

$1.49

3

NUT, SPEED(10)

7670057

$1.49

4

ASM-HEADLAMP,THREE BULB (Incl. Bulbs)

2433016

$249.99

5

BULB-HEADLIGHT,50 WATT

4010253

$34.99

6

BULB,QUARTZ.H/L,INDY

2870448

$24.99

7

LENS,LH,CLR.REFLECTOR

5431855

Unavailable

7

LENS,RH,CLR.REFLECTOR

5431856

Unavailable

8

ASM-HOOD,HYB,SVC,SONIC BLUE (Incl. Foam/Foil)

2632181-341

$754.99

9

SCREW(10) Substituted by 7512048

7511953

Unavailable

10

FASTENER-U TYPE CLIP

7670040

$3.99

11

BOLT,TEE ADJUSTER,2.25

7517746

$24.99

12

SPRING,H/L.ADJ.

7041308

$3.19

13

FOAM-HEADLIGHT SEAL W/PSA

5811687

$20.22

14

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

15

NUT-LOCK(10)

7542122

$1.49

15

NUT-LOCK(10)

7542122

$1.49

15

NUT-LOCK(10)

7542122

$1.49

16

HINGE,LH,UPPER

1012750

$48.56

16

HINGE,RH,UPPER

1012751

$43.99

16

HINGE,LH,UPPER

1012750

$48.56

16

HINGE,RH,UPPER

1012751

$43.99

17

PLATE-BOLT

5242948

$9.70

17

PLATE-BOLT

5242948

$9.70

18

BOLT(10) Substituted by 7512247

7515184

Unavailable

18

BOLT(10) Substituted by 7512247

7515184

Unavailable

19

PLATE,HINGE,LOWER

5244395

$11.99

19

PLATE,HINGE,LOWER

5244395

$11.99

20

BOLT(10)

7512193

$2.39

20

BOLT(10)

7512193

$2.39

21

BRACE,HOOD,UPPER

5242945

$40.46

22

BRACE,HOOD,LOWER

5242946

$40.46

23

RIVET-3/16-.090-.290

7661637

$1.49

24

SPRING-EXT.

7041732

$7.19

25

SPRING-ATTACHMENT RING(10)

7041760

$7.99

26

CLAMP, RETAINER(10)

7080372

$3.99

27

SCREW(10)

7517441

$2.39

28

SCREEN,FRONT,HYB

5432931

$36.41
