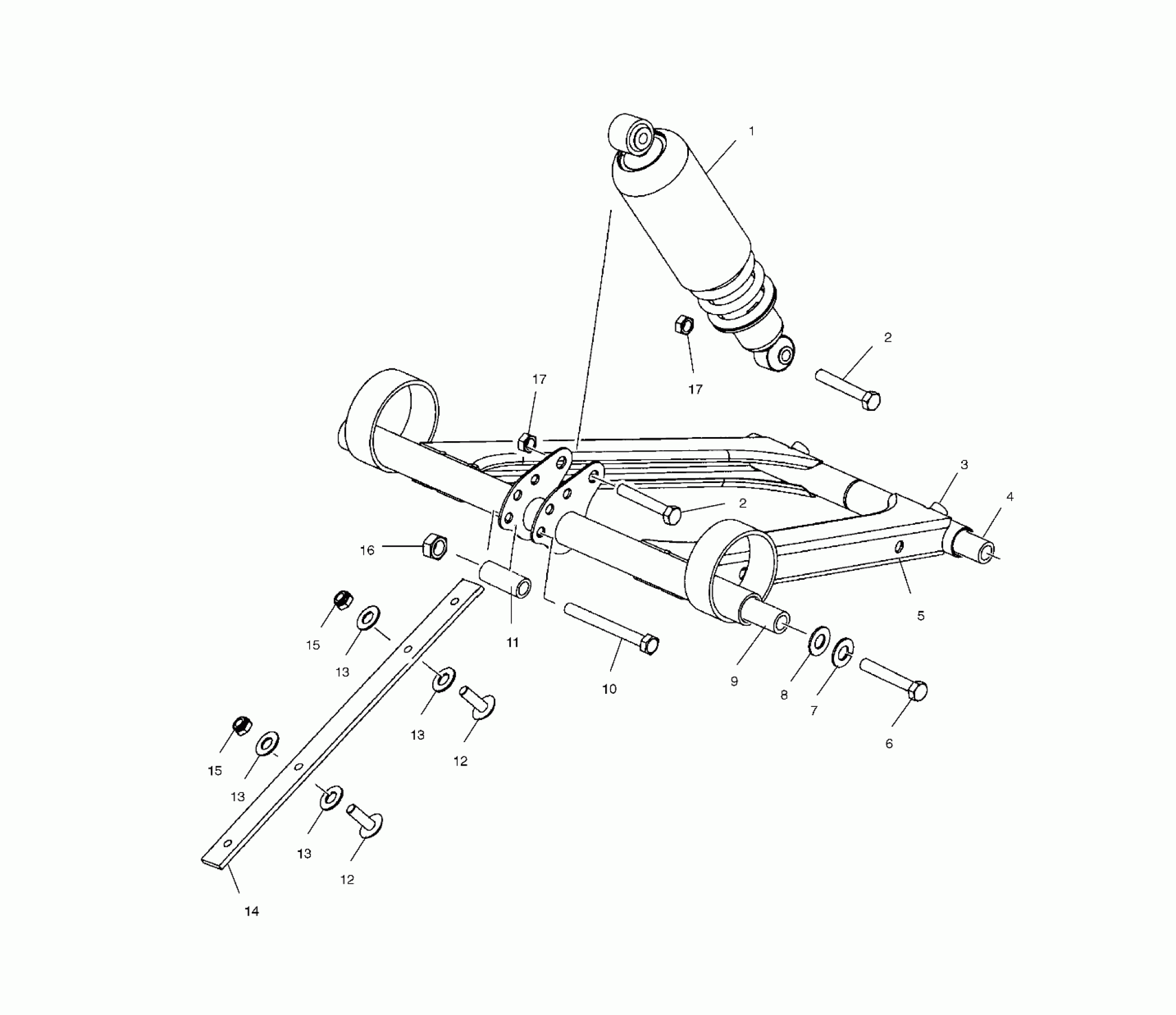

Polaris 500 RMK 136 - S02SR5AS FRONT TORQUE ARM - S02SR5AS (4969336933B009) Diagram

#

Description
Price

1

SHIELD-SPRING

5430671

$24.27

1

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

1

RETAINER-SPRING,GAB,PLATED

5245067

$23.99

1

SPRING,BLACK,COMP.

7041253-067

$95.22

1

SHOCK-FRT TRK,XL,136

7041766

Unavailable

2

BOLT(10) Substituted by 7515492

7512410

Unavailable

2

BOLT(10) Substituted by 7515492

7512410

Unavailable

3

FITTING-LUBRICATION 1/4-28

7080424

$4.79

4

Shaft

5333511

Unavailable

5

ARM,FRONT,TRQ,LX,1.28,BLK

1541522-067

Unavailable

6

Bolt

7517435

$14.99

7

WASHER(10)

7552603

$1.49

8

WASHER(10)

7555893

$1.49

9

Shaft

5020908

$69.99

10

BOLT(10)

7515319

$4.79

11

BUSHING,.334X.500X1.25

5333897

$4.39

12

SCREW ,(10)

7517313

$4.79

12

SCREW ,(10)

7517313

$4.79

13

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

13

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

13

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

13

WASHER-.325X1.20X.090,FL-Y

7556175

$5.99

14

STRAP,LIMITER,XL 136

5811655

Unavailable

15

NUT,NYLOC,(10)

7542344

$3.99

15

NUT,NYLOC,(10)

7542344

$3.99

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

NUT,NYLOK

7547025

$2.63

17

NUT,NYLOK

7547025

$2.63
