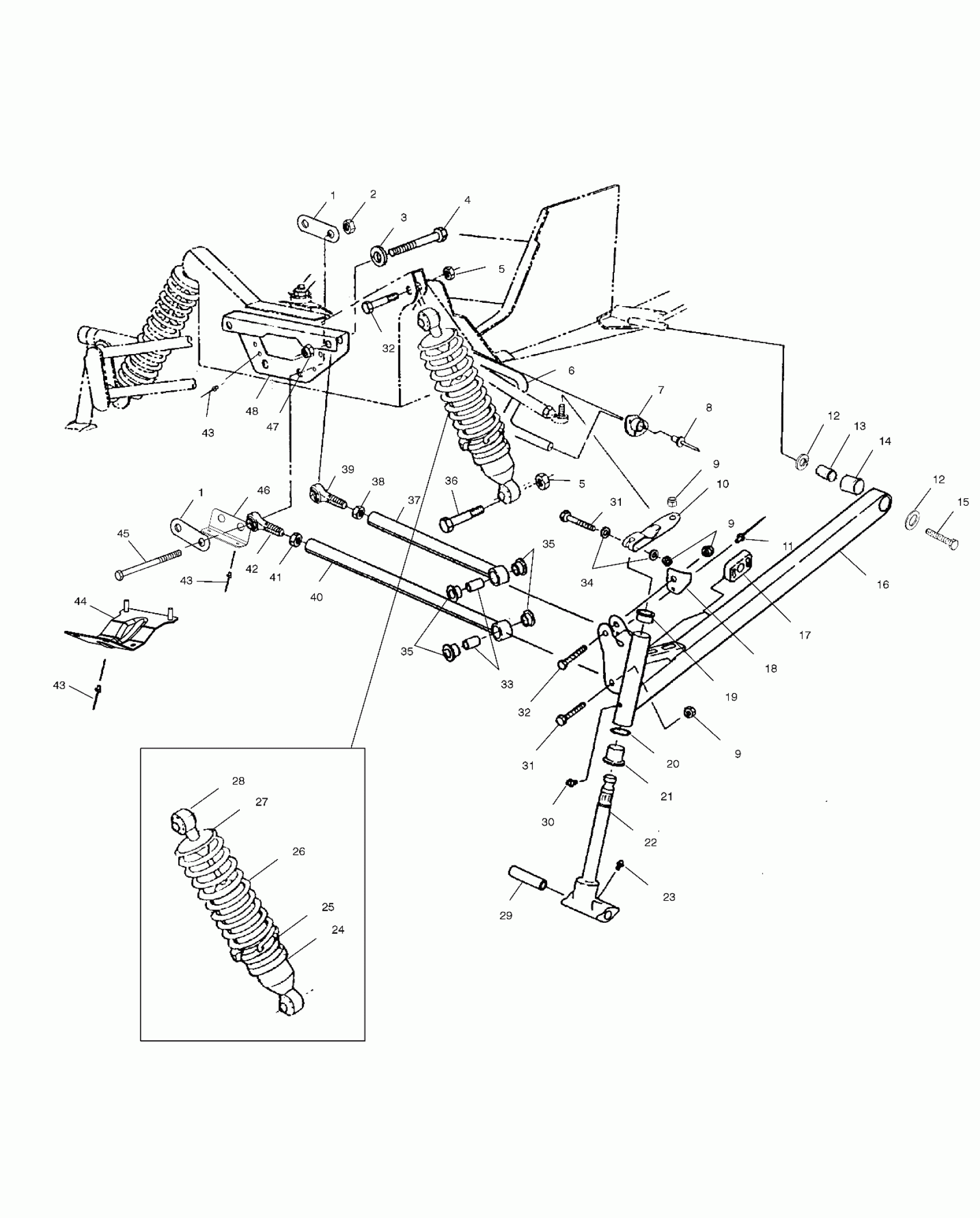

Polaris 500 RMK 136 - S02SR5AS FRONT SUSPENSION - S02SR5AS (4969336933A013) Diagram

#

Description
Price

1

STRAP,SPACER BOTTOM

5211345

$12.99

1

STRAP,SPACER BOTTOM

5211345

$12.99

2

NUT FLEX,(10)

7542703

Unavailable

3

WASHER THRUST(10)

7558702

$1.59

4

BOLT(10)

7512551

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

BAR,SWAY

5224757-067

Unavailable

7

BUSHING,SWAY BAR

5432412

$15.99

8

RIVET,(50)

7621477

$1.19

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

10

ARM-STEERING,LH,BRT SLV MET

5241660-244

Unavailable

10

ARM-STEERING,RH,BRT SLV MET

5241661-244

Unavailable

11

RIVET-3/16-.214-.420

7661130

$1.49

12

WASHER(10)

7555721

$1.49

12

WASHER(10)

7555721

$1.49

13

TUBE, BUSHING

5010310

$9.70

14

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

15

BOLT(10)

7512557

$7.60

16

ASM-TRAILING ARM,CRC,LH,SILVER (Incl. 12)

1822517-244

Unavailable

16

ASM-TRAILING ARM,CRC,RH,SILVER (Incl. 12)

1822518-244

Unavailable

17

SLIDE,SWAYBAR,9/16

5432674

Unavailable

18

STOP-STEERING,LH,BRT SLV MET

5241777-244

Unavailable

18

STOP-STEERING,RH,BRT SLV MET

5241778-244

$17.43

19

BUSHING-FLANGE

3573909

$2.39

20

WASHER SPECIAL(10)

7556509

$1.59

21

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

22

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

23

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

24

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

25

RING,SPRING PRELOAD ADJ.

5431734

$52.60

26

SPRING,COMPRESSION

7041551-067

$74.99

27

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

28

SHOCK,GAS,IFS

7041543

$179.99

29

BUSHING,PIVOT,(10)

5010158

$19.99

30

ZERK,FITTING,THREADED(10)

7080433

$1.49

31

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

31

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

32

BOLT(10)

7515415

$1.49

32

BOLT(10)

7515415

$1.49

33

BUSHING-RADIUS ROD,(10)

5010127

$7.99

34

WSHR-.813X.406X.105-Y

7555832

$2.39

35

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

35

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

36

BOLT Substituted by 7515491

7515433

$1.59

37

WELD-RADIUS ROD,UPPER,SILVER

1822446-244

Unavailable

38

NUT JAM(10)

7542520

$2.39

39

ROD END-RADIUS,RH,7/16"

7061049

Unavailable

40

WELD-RADIUS ROD,LOWER,SILVER

1822444-244

Unavailable

41

NUT-JAM(10)

7542711

$2.39

42

ROD END-RADIUS,RH,LOWER

7061052

$48.56

43

RIVET-3/16-.090-.290

7661637

$1.49

43

RIVET-3/16-.090-.290

7661637

$1.49

43

RIVET-3/16-.090-.290

7661637

$1.49

44

BRACE-PAN,LOWER,BLK

5242575-067

$24.27

45

BOLT(10)

7512684

Unavailable

46

BRKT,RAD.ROD,BTM.

5242578

$44.99

47

NUT, LOCK,(10)

7542503

$10.39

48

BRACE,FR.BULKH.,BLK Substituted by 5242112-067

5241641-067

Unavailable
