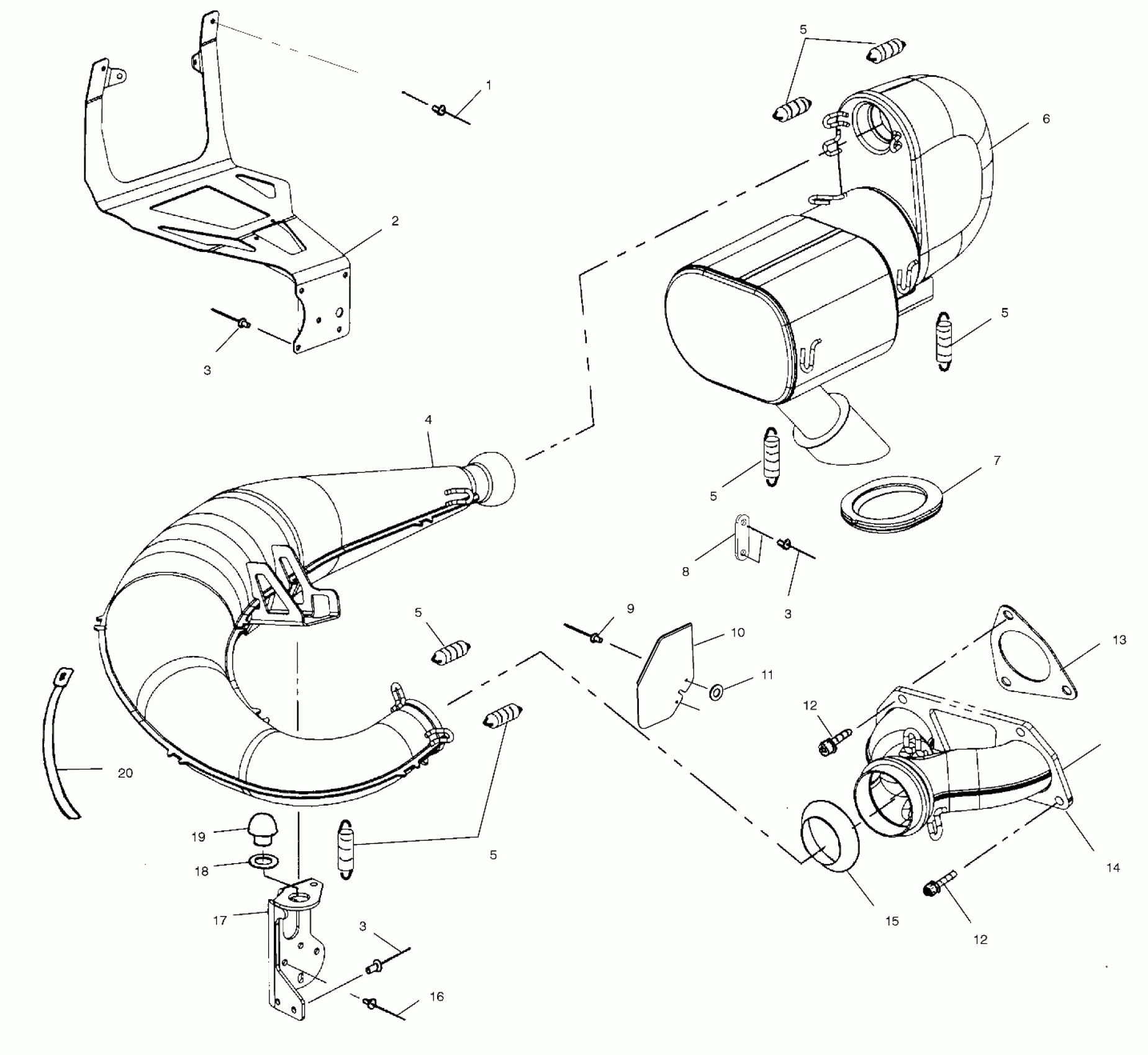

Polaris 500 RMK 136 - S02SR5AS EXHAUST SYSTEM - S02SR5AS (4969336933B013) Diagram

#

Description
Price

1

RIVET, BLIND(50)

7621467

$1.49

2

BRKT,CHASSIS/RESON,BLK

1261025-029

$55.57

3

RIVET-3/16-.214-.420

7661130

$1.49

3

RIVET-3/16-.214-.420

7661130

$1.49

3

RIVET-3/16-.214-.420

7661130

$1.49

4

ASM-TUNED PIPE (Incl. 20)

1261181

$331.99

4

COVER,TUNED PIPE,TOP

5242590

Unavailable

4

COVER,TUNED PIPE,BTM.

5242591

Unavailable

4

MATTE,SOUND,TOP

5830144

$21.43

5

SPRING-EXHAUST

7041687

$5.65

5

SPRING-EXHAUST

7041687

$5.65

5

SPRING-EXHAUST

7041687

$5.65

5

SPRING-EXHAUST

7041687

$5.65

5

SPRING-EXHAUST

7041687

$5.65

6

RESONATOR,BLK.

1260929-029

Unavailable

7

BOOT,EXHAUST,OUTLET

5411494

$15.99

8

HOOD-SPRING,BLK

5243186-067

$2.47

9

RIVET,3/16X.402(50)

7621432

$1.49

10

SHIELD-HEAT DEFLECTOR

5244251

$12.39

11

BURR,RIVET(50)

7555904

$1.49

12

SCREW(10)

7517322

$2.39

12

SCREW(10)

7517322

$2.39

13

GASKET-EXHST 440 BASE 500/600

5811838

$8.89

14

MANIFOLD,BLK

1260853-029

$62.29

15

SEAL,EXH.SOCKET

3610046

$36.41

16

RIVET-3/16-.090-.290

7661637

$1.49

17

BRKT,MUFFLER,FRONT-Z

5241832

$22.23

18

WASHER

7556004

Unavailable

19

DAMPENER-VIBRATION,W/RIBS

5411576

$7.99

20

CLAMP-WORM DRIVE,.44WX3.75 DIA(10) (.44 x 3.75)

7080812

$19.99

20

CLAMP-WORM DRIVE,.44WX4.25 DIA(10) (.44 x 4.25)

7080813

$3.99

20

CLAMP,WORM,(10) (.44 x 3.13)

7080739

$10.63

20

CLAMP-WORM DRIVE,.44WX6.50 DIA(10) (.44 x 6.50)

7080811

$11.99
