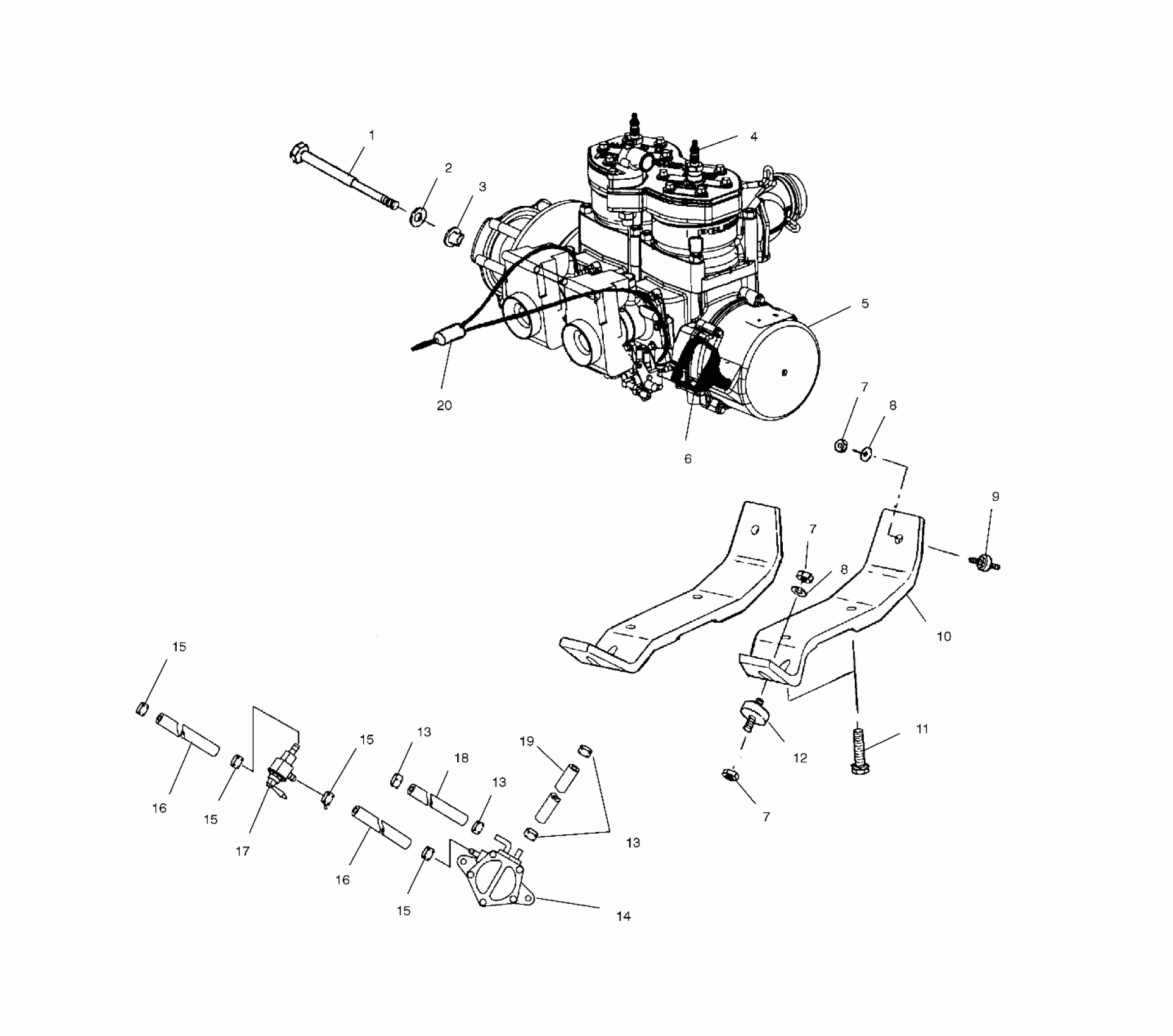

Polaris 500 RMK 136 - S02SR5AS ENGINE MOUNTING - S02SR5AS (4969336933B014) Diagram

#

Description
Price

1

SCREW,M14X1.5X215

7517501

Unavailable

2

WASHER(10)

7556003

$6.39

3

WASHER,CLUTCH RET.

5131872

Unavailable

4

SPARK PLUG-NGK BR9ES

3070163

$3.99

5

KIT-SHT BLK S50-44-02 ( S504402) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required

2202031

Unavailable

6

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

7

NUT,FLEXLOCK,(10)

7547008

$6.39

7

NUT,FLEXLOCK,(10)

7547008

$6.39

7

NUT,FLEXLOCK,(10)

7547008

$6.39

8

WASHER(10)

7555893

$1.49

8

WASHER(10)

7555893

$1.49

9

MOUNT-ENGINE,3/8-16,3-TAB

3021099

$28.32

10

STRAP-ENGINE MOUNTING,LH

5131775

$92.99

10

STRAP-ENGINE MOUNTING,RH

5131776

Unavailable

11

Screw

7517399

$8.99

12

MOUNT,ENG.

3110061

$84.99

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

PUMP,FUEL,1 OUTLET

2520135

Unavailable

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

16

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

17

VALVE,FUEL SHUTOFF

7052211

Unavailable

18

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

19

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

20

CABLE,THROTTLE,W/OIL,38MM.RACK

7080733

Unavailable
