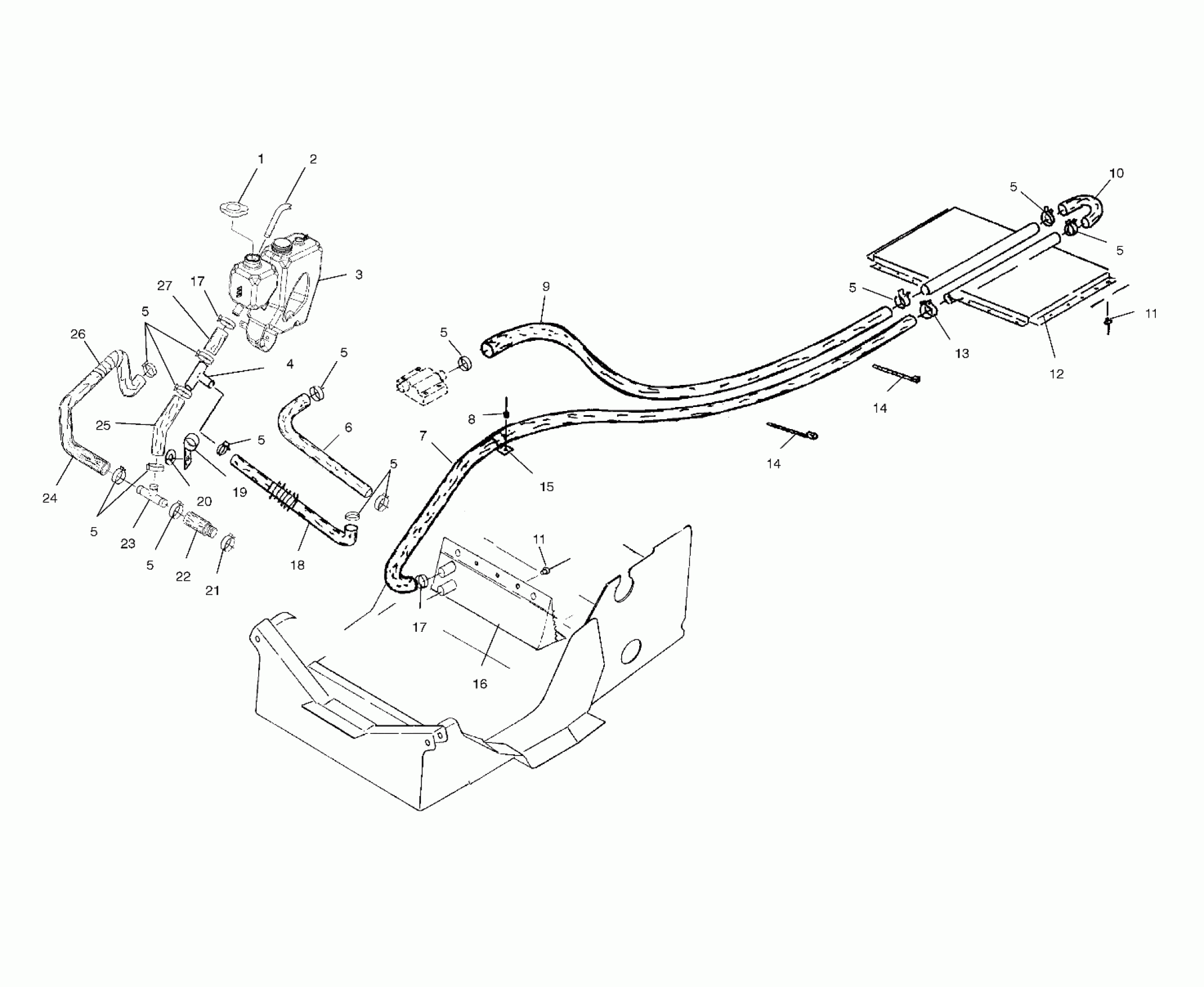

Polaris 500 RMK 136 - S02SR5AS COOLING SYSTEM - S02SR5AS (4969336933B002) Diagram

#

Description
Price

1

Cap, Pressure, 13 lb. (See Oil Tank Page C1, Ref. 9)

-------

Unavailable

2

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

3

Tank, Oil/Coolant (See Oil Tank Page C1, Ref. 2)

-------

Unavailable

4

CONN.,TEE,1",1",3/4"BARBED

7052282

$24.99

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

6

HOSE,ENGINE OUT/BRAKE COOLER

5411662

Unavailable

7

HOSE,(B'HD COOL.-REAR)

5411216

$70.39

8

POP RIVET(50)

7621425

$1.49

9

HOSE,(BRK.COOL.-REAR)

5411217

Unavailable

10

HOSE,COOLING

5410758

Unavailable

11

RIVET-3/16-.090-.290

7661637

$1.49

11

RIVET-3/16-.090-.290

7661637

$1.49

12

EXCHANGER,R.COOLING

2511301

$226.99

13

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CLAMP, 1"HOSE(10)

7080585

$3.99

16

EXCHANGER,CLOSE-OFF

2511304

$399.99

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.19

18

HOSE,BYPASS OUT/TEE IN

5411611

Unavailable

19

CLAMP,HOSE 1.375,VNL ECOATED

7080908

$8.99

20

WASHER, FLAT(10)

7555859

$1.49

21

CLAMP-HOSE, 1.750-SS

7080560

$11.19

22

HOSE,TEE OUT/PUMP IN

5411613

Unavailable

23

CONNECTOR, TEE,(1 IN.)

7052087

Unavailable

24

HOSE,TEE/CENTER COOLER W/SPR

5411616

Unavailable

25

HOSE,TEE OUT/TEE IN

5411718

Unavailable

26

TUBING-CONVOLUTED 1.25"X3"

5521510

$29.99

27

HOSE,TEE/BOTTLE,3/4"

5411909

Unavailable
